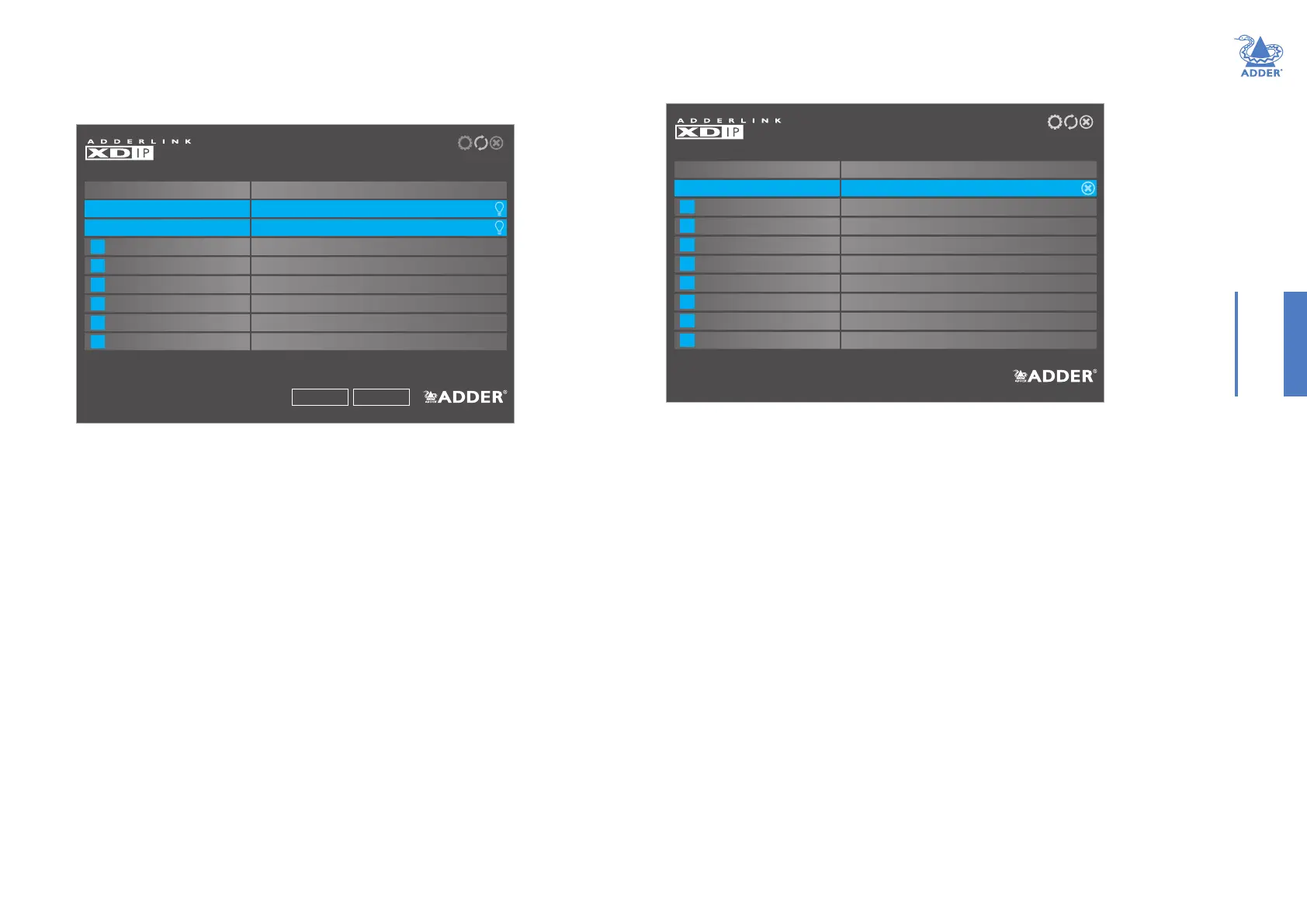

15 You can now optionally change the order of transmitters in the channel list. Click,
hold and drag an entry to the required slot:
INITIAL CONFIGURATION (continued)
17 The receiver will now show the Channel List:
From here you can choose between a local computer (if connected to your receiver)
or any of the associated transmitters. See page 30 for details about operation.
SETUP - Customise the Channel Order
Drag and drop the channels into your preferred order.
#Name
Transmitter 1
Description
Description
DONEBACK
1
3
4
5
6
7
8
Transmitter 2Description
2
Receiver 1
Description
Name
Local Computer
Transmitter 1
Transmitter 2
Description
Description
Description
Description
#
0
1
2
3
4
5
6
7
8
16 When all transmitters are in the required order, click DONE.

ADDER AdderLink XDIP Specifications

General

Type	Transmitter & receiver
Material	Metal
Certification	CE, FCC
Product color	Black
LED indicators	Link, Power, USB, Video
Cable types supported	Cat5, Cat6, Cat7
Connectivity technology	Wired
Maximum transfer distance	100 m
Maximum digital resolution	1920 x 1200 pixels
Operating temperature (T-T)	0 - 40 °C
Input current	0.7 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output voltage	12 V
USB 2.0 ports quantity	4
Receiver local video port type	HDMI
RJ-45 ports quantity (receiver)	1
Receiver local keyboard/mouse port type	USB
Weight	600 g
Dimensions (WxDxH)	169 x 120 x 31 mm
Package depth	290 mm
Package width	248 mm
Package height	55 mm
Cables included	Audio (3.5mm), HDMI, USB
AC adapter included	Yes
Harmonized System (HS) code	84733080
