User’s Manual

NOTE: You will need to get the appropriate Port Numbers for each RAS and WebGuard related program (Admin,

Callback, Watch and Search) from your network administrator.

NOTE: Do NOT use the same port number for two different programs, otherwise, the DVR cannot be connected

with the PC running RAS or WebGuard.

CAUTION: When changing the port settings, you must change the port settings on the PC running

RAS as well. Refer to the RAS manual for details.

NOTE: If the DVR is configured for DHCP or an ADSL network, the IP address of the DVR might change whenever

the unit is turned on.

Highlight the DVRNS tab, and the DVRNS setup screen displays.

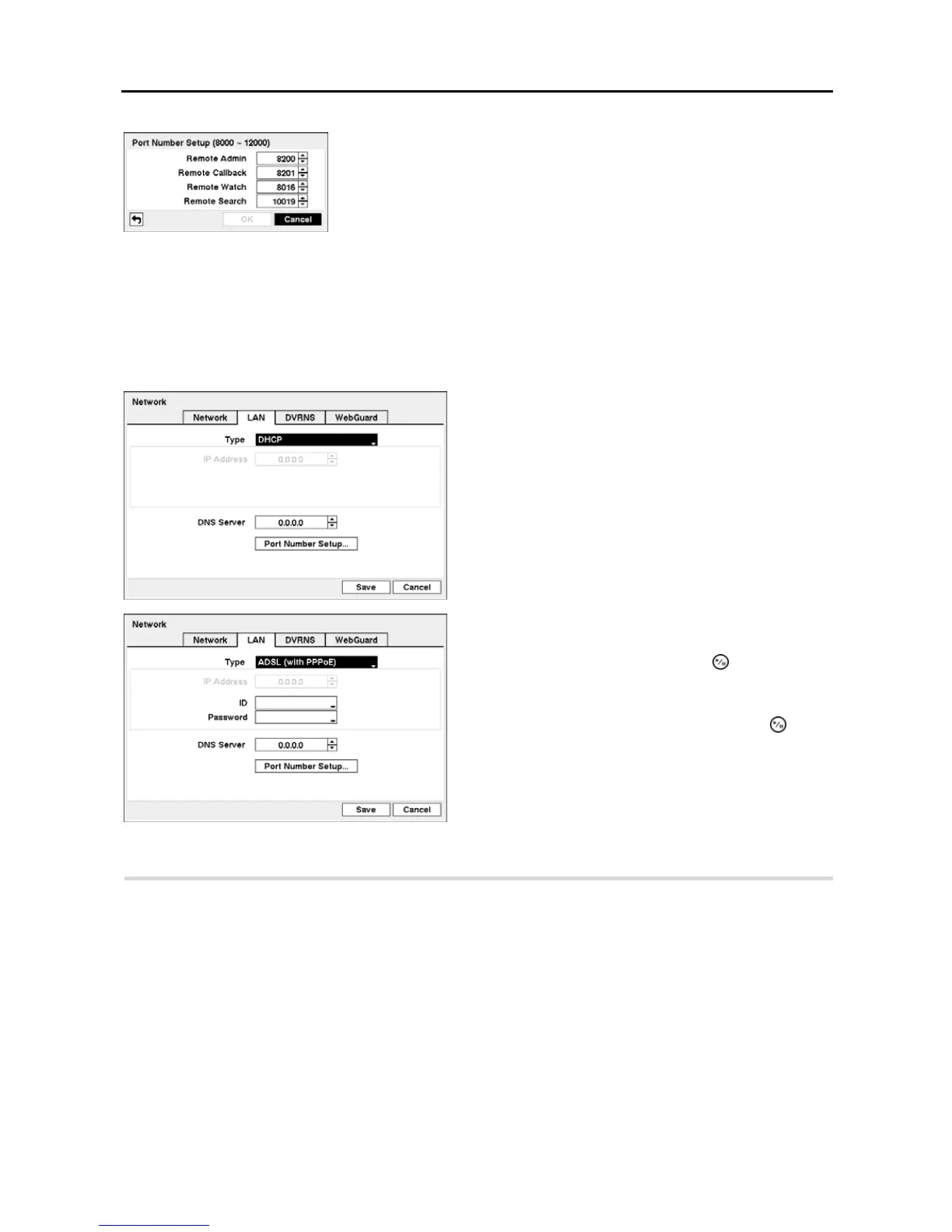

Change the numbers by highlighting them and using the Up and Down arrow buttons

to increase or decrease the number. The factory default Port settings are:

Remote Admin: 8200

Remote Callback: 8201

Remote Watch: 8016

Remote Search: 10019

Selecting DHCP from the Type and highlighting Save button

reads the current IP address of the DVR configured by DHCP

(Dynamic Host Configuration Protocol) network.

Selecting ADSL (with PPPoE) allows you to set up the ADSL

network.

Highlight the box beside ID and press the button. A virtual

keyboard appears allowing you to enter the ID for ADSL

connection.

Highlight the box beside Password and press the button.

A virtual keyboard appears allowing you to enter the password

for ADSL connection.

NOTE: Entering the ID and Password and highlighting OK

reads the current IP address of the DVR configured by the

ADSL network.

ADT 4-channel DVR User Manual
