4-Channel Digital Video Recorder

Devices Setup

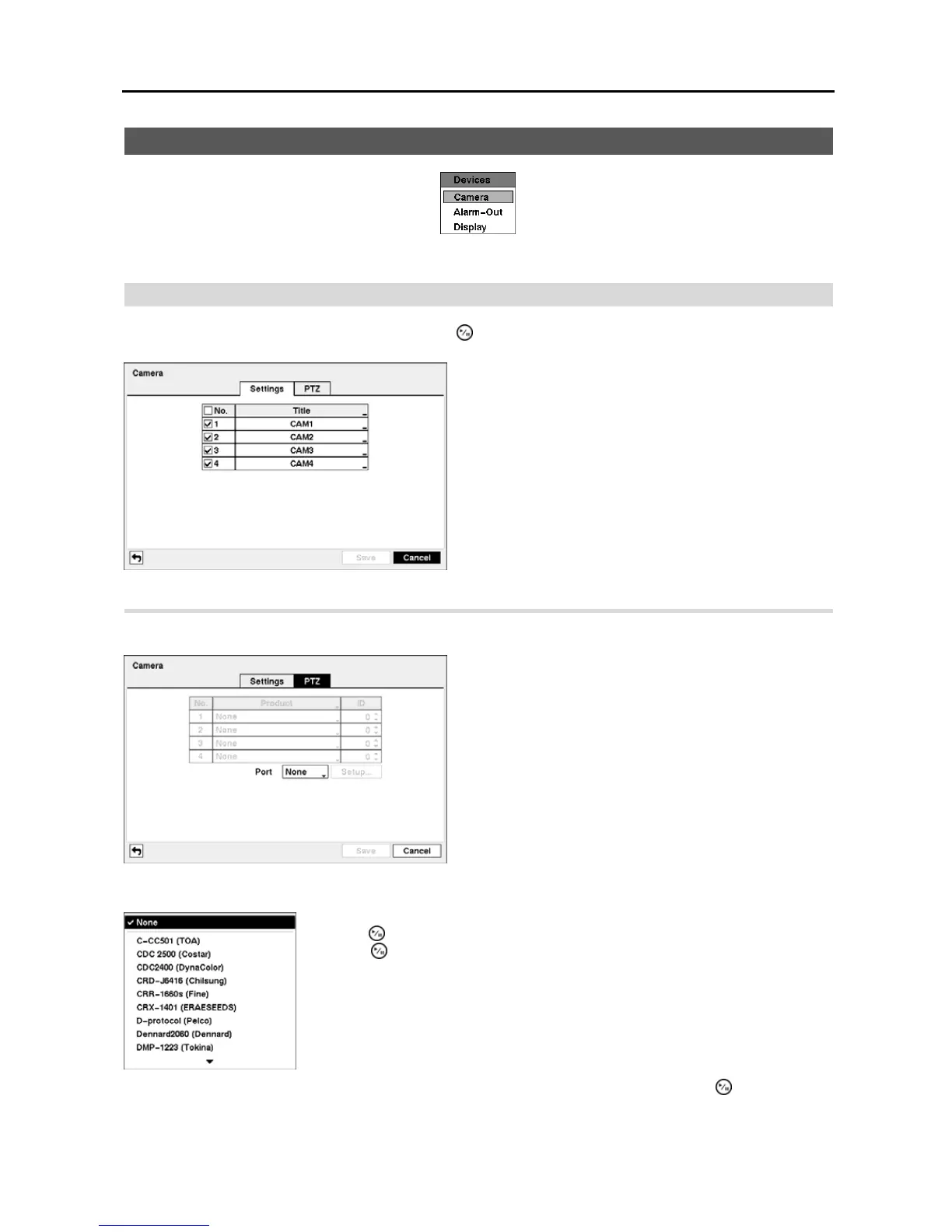

Figure 22 ─ Devices menu.

Camera

Highlight Camera in the Devices menu and press the

button. The Camera setup screen appears.

Highlight the PTZ tab, and the PTZ setup screen displays.

You can assign IDs to each camera by highlighting the box under the ID heading and pressing the button. Change

the number by highlighting it and using the Up and Down arrow buttons to increase and decrease the number. The

PTZ ID number can be set from 0 to 256.

Figure 23 ─ Camera setup screen.

You can turn the camera number On or Off, and you can

change the Title of each camera using the virtual keyboard.

Figure 24 ─ Camera PTZ setup screen.

NOTE: You will only be able to set up PTZ devices if the

PTZ port is set to RS485.

Highlight the box in the Product column for the PTZ camera you wish to configure and

press the

button. A list of PTZ devices appears. Select your camera from the list and

press the

button. You will need to connect the camera to the RS485 connector on

the back of the DVR following the camera manufacturer’s instructions.

ADT 4-channel DVR User Manual
