ADAM-5000 Series User Manual 6
1.2.2 ADAM-5017 8-ch Analog Input Module
The ADAM-5017 is a 16-bit, 8-channel analog differential input module that provides program-
mable input ranges on all channels. It accepts millivolt inputs (±150mV, ±500mV), voltage
inputs (±1V, ±5V and ±10V) and current input (±20 mA). The module provides data to the host
computer in engineering units (mV, V or mA). This module is an extremely cost-effective solu-
tion for industrial measurement and monitoring applications. Its opto-isolated inputs provide
3,000 V
DC
of isolation between the analog input and the module, protecting the module and
peripherals from damage due to high input line voltage. Additionally, the module uses analog
multiplexers with active over- voltage protection. The active protection circuitry assures that
signal fidelity is maintained even under fault conditions that would destroy other multiplex-
ers. This module can withstand an input voltage surge of 70 Vp-p with ±15 V supplies. The
jumpers of ADAM-5017 are designed for current input. Refer to the diagram below for the
locations (JP1). Short the pin-head by the jumpers to set the channel to be current mode.
ADAM-5017

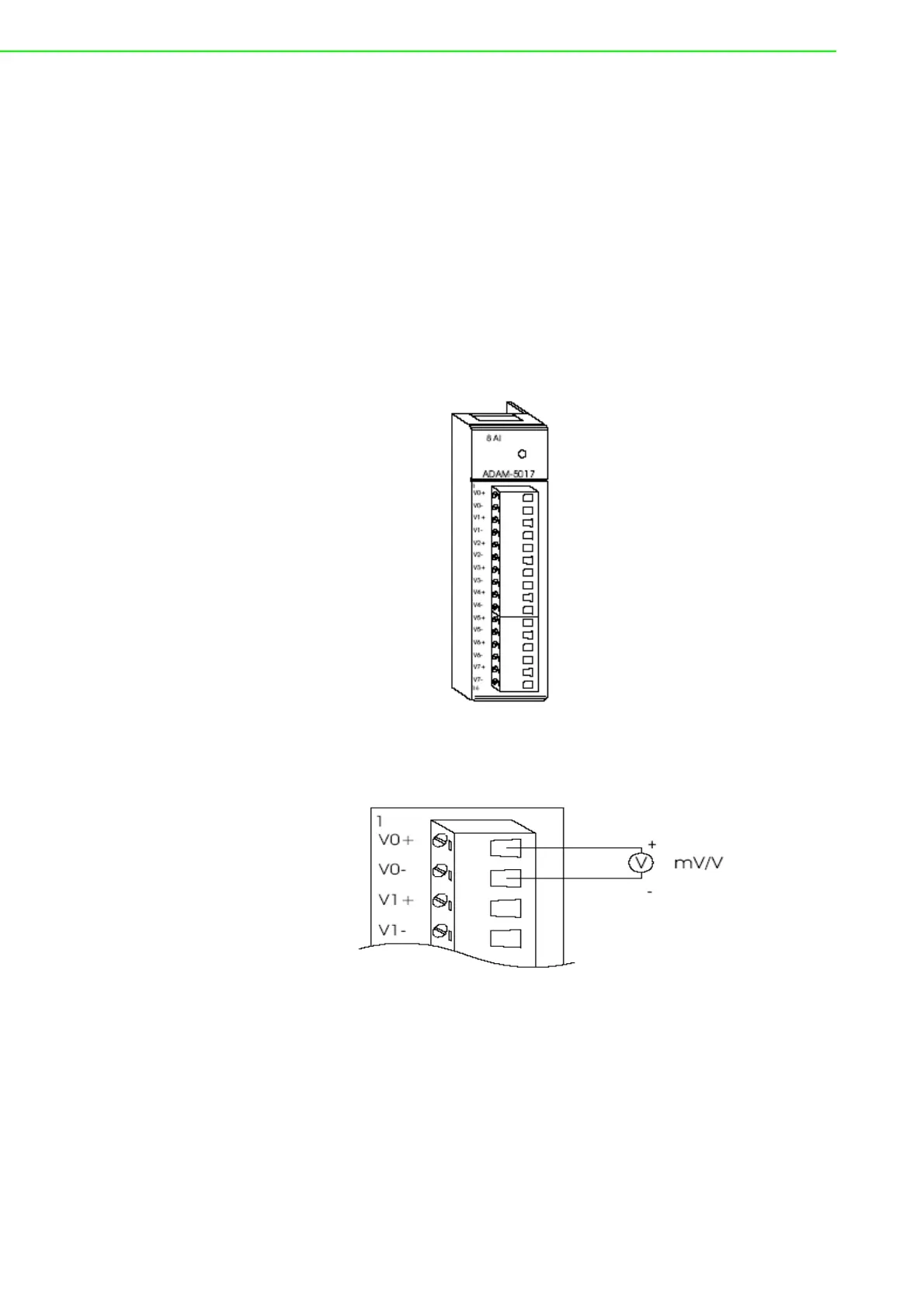

Figure 1.4 ADAM-5017 Module Front View
Application Wiring
Figure 1.5 Millivolt and Volt Input
