ADAM-5000 Series User Manual 58
Features--Digital Output Mapping
If users want to use Digital Output function, ADAM utility is available for setting specif-
ically which module, channel or slot to receive the alarm signals.

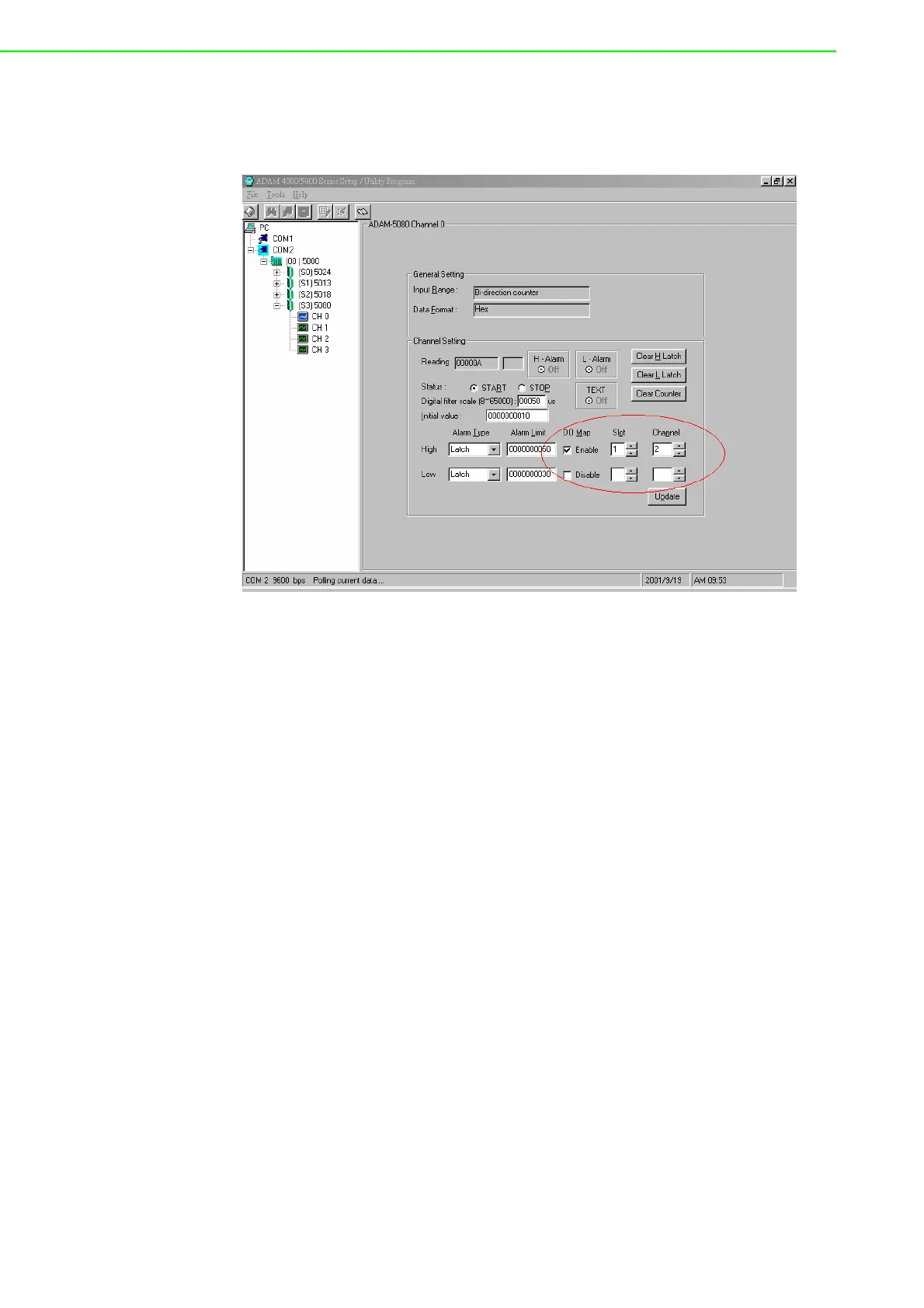

Figure 6.11 Digital Output Mapping
1. High Alarm State--Set Alarm state to "Latch" or "Disable".
2. High Alarm Limit--Set Alarm limit from 0 to 4,294,967,295.
3. High Alarm Output Mode--Enable or Disable D.O. Mapping.
4. High Alarm Output Slot--Users can select D.O Modules such as ADAM-5050,
ADAM-5055, ADAM-5056, ADAM-5060, ADAM-5068.
5. High Alarm Output Channel--Select Alarm Output Channel
6. Clear Latch Alarm--Users can select "Enable" or "Disable" option. When selecting
"Enable", the latch will be relieved and the alarm state will return to normal. Once
the alarm state returns to normal, the Clear Latch Alarm will return to "Disable".
