9 ADAM-5000 Series User Manual
Chapter 1 Overview

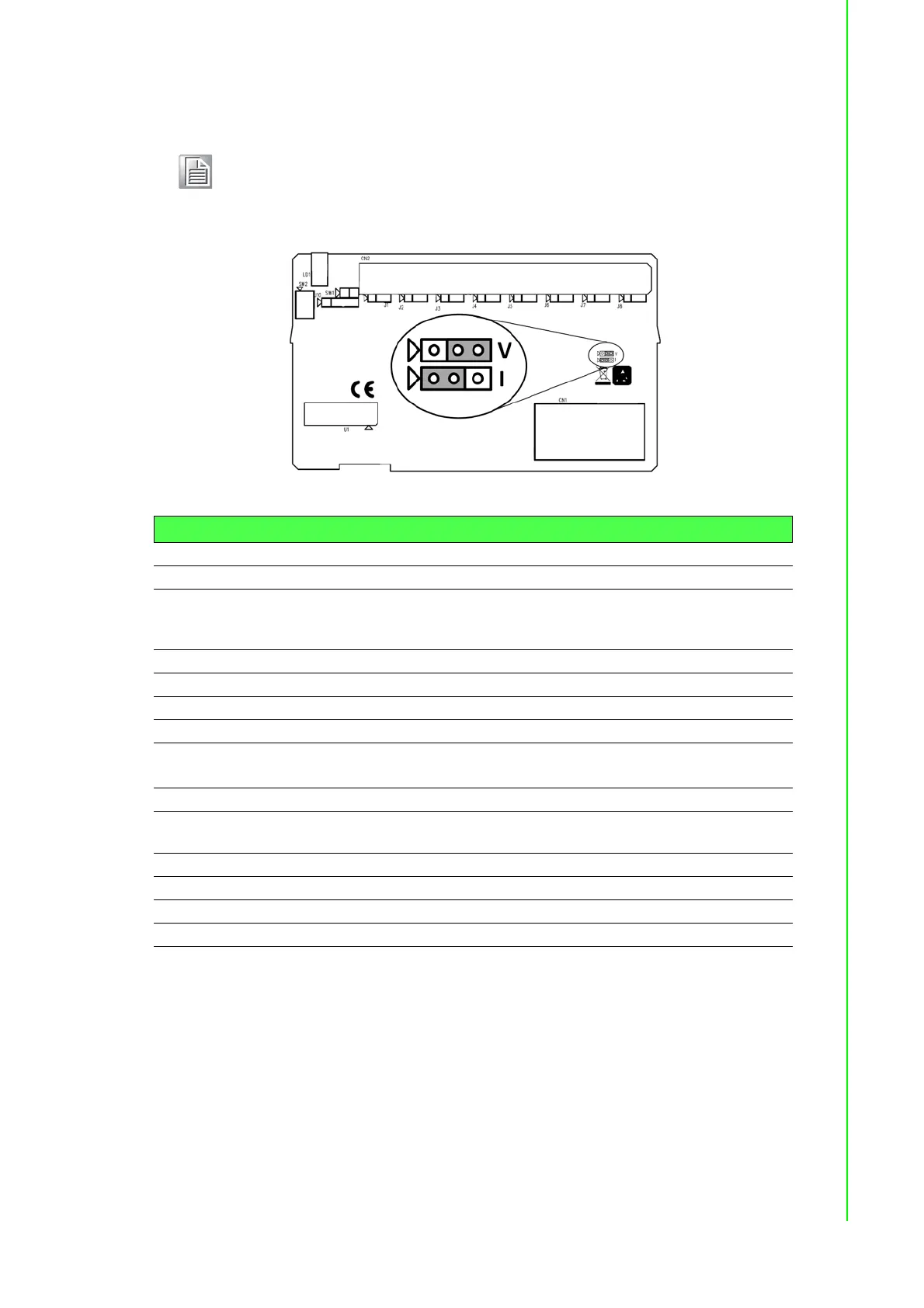

Figure 1.11 Locations of Jumpers
Note! To keep measurement accuracy please short the channels that are not
in use.
Table 1.5: Technical Specifications of ADAM-5017P
Analog Input Channels Eight differential and independent
Input Type mV, V (uni-polar and bipolar), mA
Input Range ± 150 mV, ± 500 mV, ± 1 V, ± 5 V, ± 10 V, 0~150mV,
0~500mV, 0~1V, 0~5V, 0~10V, 0~15V and ± 20 mA, and
4~20mA
High common mode 200 VDC
Sampling Rate 10 samples/sec (total)
Resolution 16 bits
Over Voltage ±60 VDC
Input Impedance
800K
(voltage input)
120
(current input)
Built-in TVS/ESD protection Yes
Accuracy ± 0.1% or better Voltage mode
± 0.2% or better Current mode
Zero Drift ± 6 µV/°C
Span Drift ± 25 PPM/°C
CMR @ 50/60 Hz 92 dB min.
Power Consumption 1.25 W (Max)
