37
ADAM-5000 Se
ries User Manual
Chapter 4
Digital Input
/
Output
Modules
Application Wiring

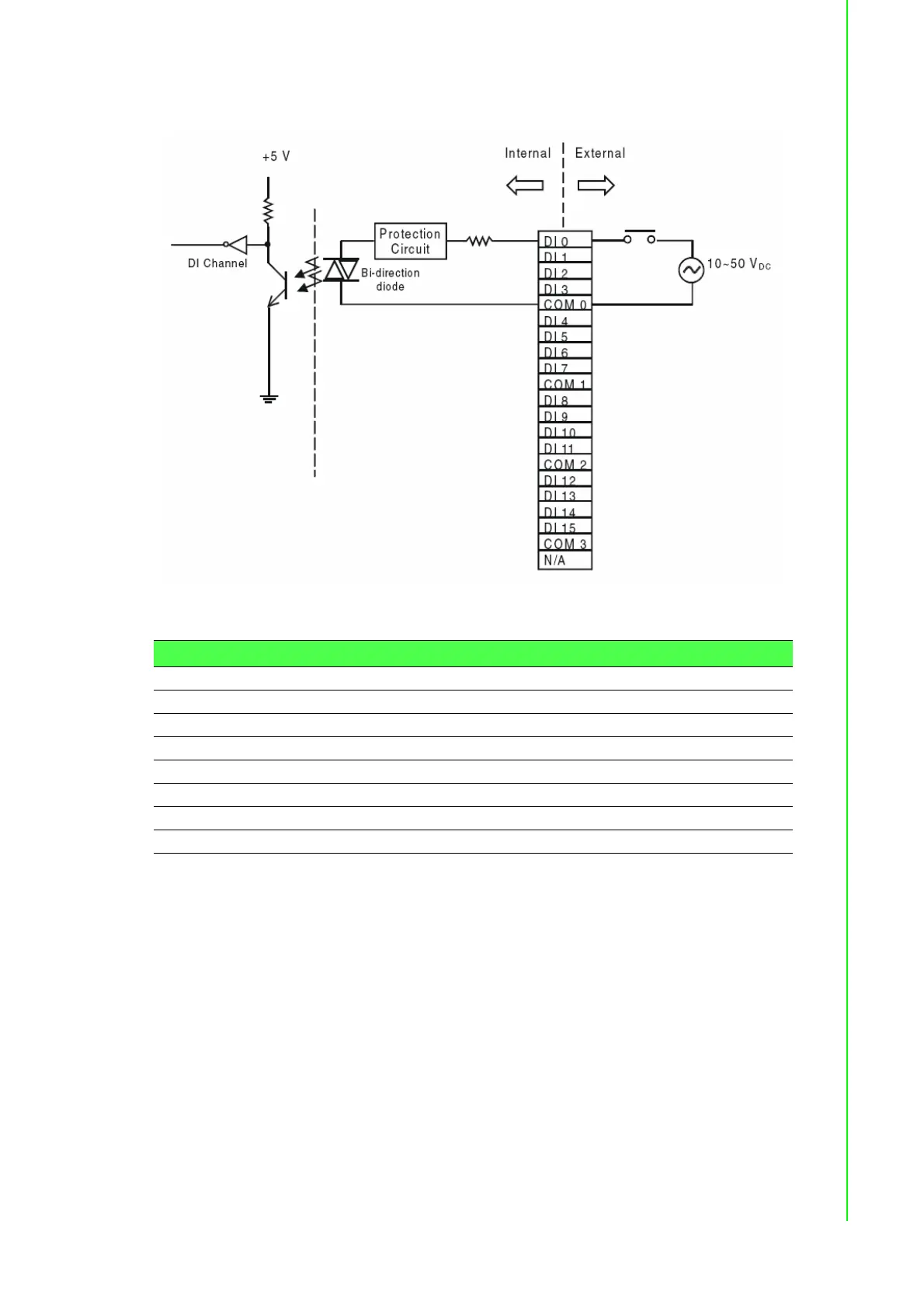

Figure 4.10 ADAM-5051S Module Wiring Diagram
T
able 4.3: T
echnical Speci
fications of ADAM-5051S
Point 16
(4-channel/g
roup)
Digital Input
Logic Level 0: + 3 V max Logic Level 1: + 10 to 50 V
Optical Isolation
2500 V
DC
Opto-isolator
response time
25 µs
Over-voltage Prot
ection
70 V
DC
Power Consumption
0.8 W
LED Indicator
On when active
I/O Connector T
ype
21-pin plug-termin
al
44
46
