ADAM-5000 Series
User Manual
54
AD
AM-5080

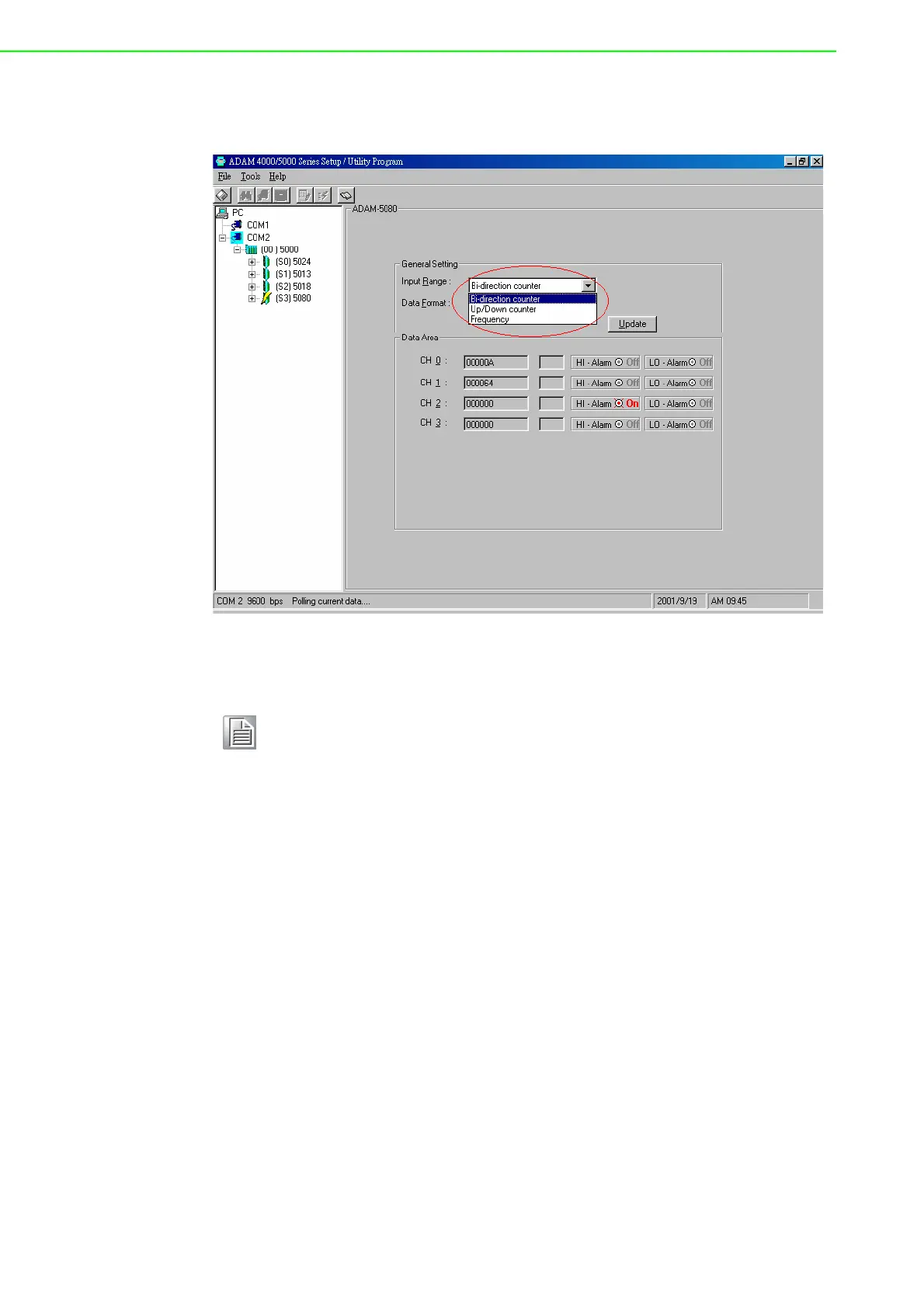

Counter/Frequency Mode Selection
Users can select Bi-direction, Up/Do
wn, Counter or Frequ
ency options as
sh
ow
n b
e
l
o
w
.
Figure 6.4 Counter / Frequency Mode
Note!
All four channels of ADAM-5080 will operate simultaneously in the mode
you have selected. i.e. If you switch the ADAM-50
80 to Counter Mode,
all four channels will operate in Counter Mode.
