11 ADAM-5000 Series User Manual
Chapter 1 Overview

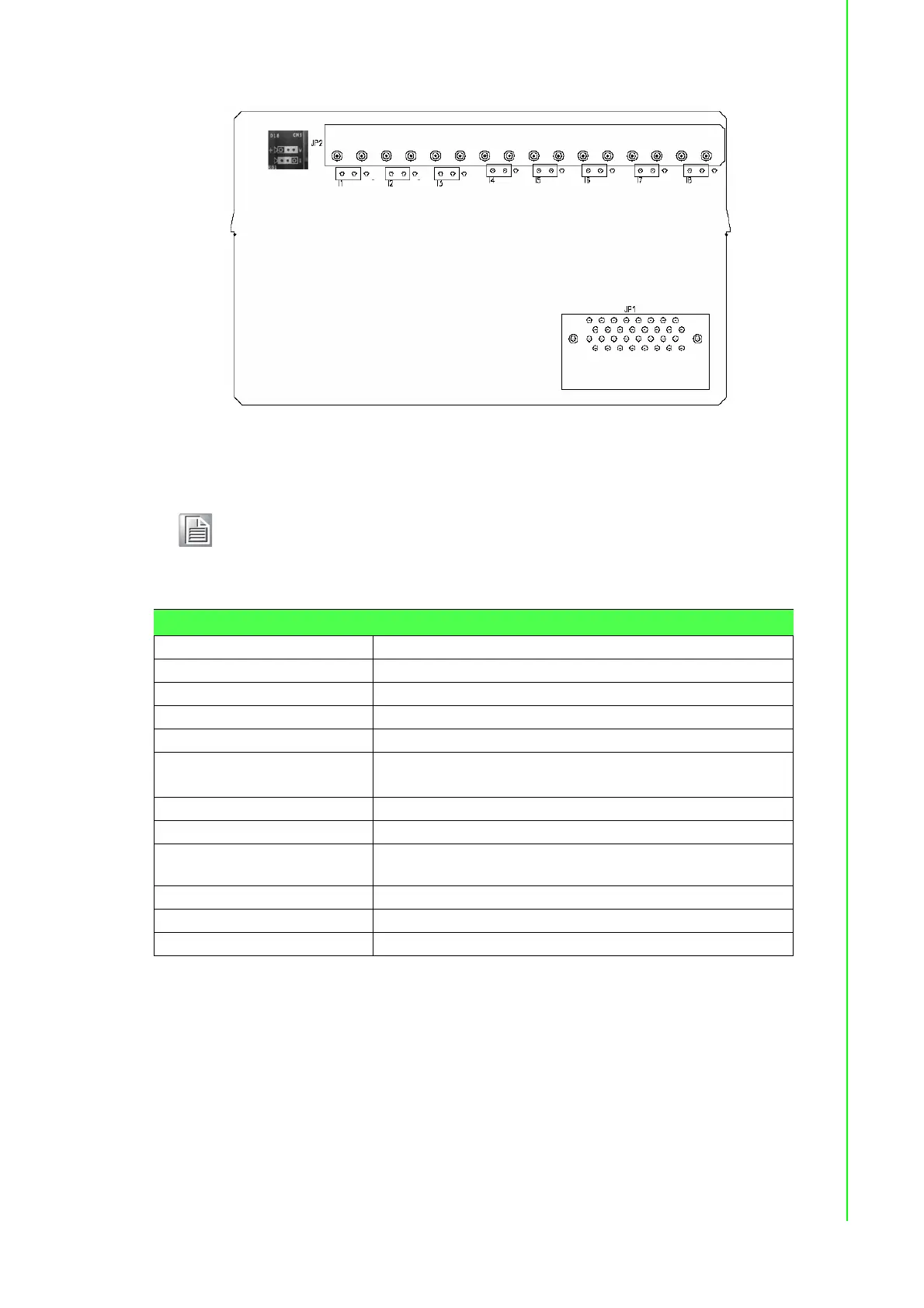

Figure 1.15 Locations of Jumpers
Note! To maintain measurement accuracy pleases short channels not in use.
Table 1.6: Technical Specifications of ADAM-5017H
Analog Input Channels 8 differential
ADC Resolution 12 bits, plus sign bit
Type of ADC Successive approximation
Isolation Voltage
3000 VDC
Sampling Rate 100 Hz
Input Impedance
2M
(voltage input)
120
(current input)
Signal Input Bandwidth 1000 Hz for both voltage inputs and current inputs
Analog Signal Range ±15 V max.
Analog Signal Range for any
two measured Pins
±15 V max.
Power Requirements +10 to +30 VDC (non-regulated)
Power Consumption 1.8 W
Accuracy ± 0.1% or better
