35 ADAM-5000 Series User Manual
Chapter 4 Digital Input
/
Output Modules
Application Wiring

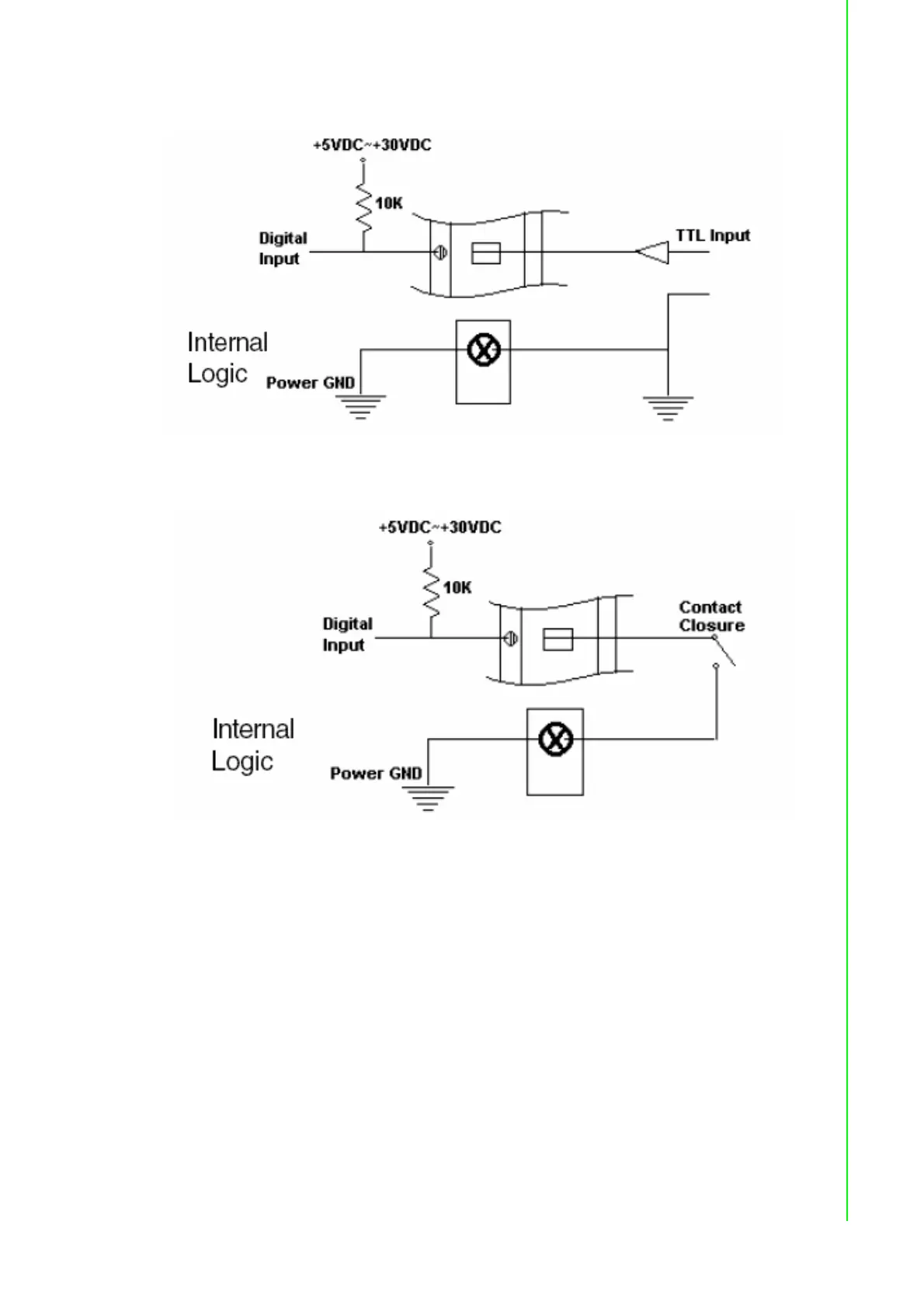

Figure 4.7 TTL Input (ADAM-5051/5051D)
Figure 4.8 Contact Closure Input (ADAM-5051/5051D)
