Chapter 1 Overview
1.2.7 ADAM-5018P 7-ch Thermocouple Input Module
The ADAM-5018P is a 16-bit, 8-channel Thermocouple Independent input module
that provides programmable input ranges on all channels. It accepts Various Thermo-
couple inputs (Type J, K, T, E, R, S, B) and provides data to the host computer in
engineering units (
o
C) In order to satisfy various temperature requirements in one
module, each analog channel is allowed to configure an individual range for several
applications.

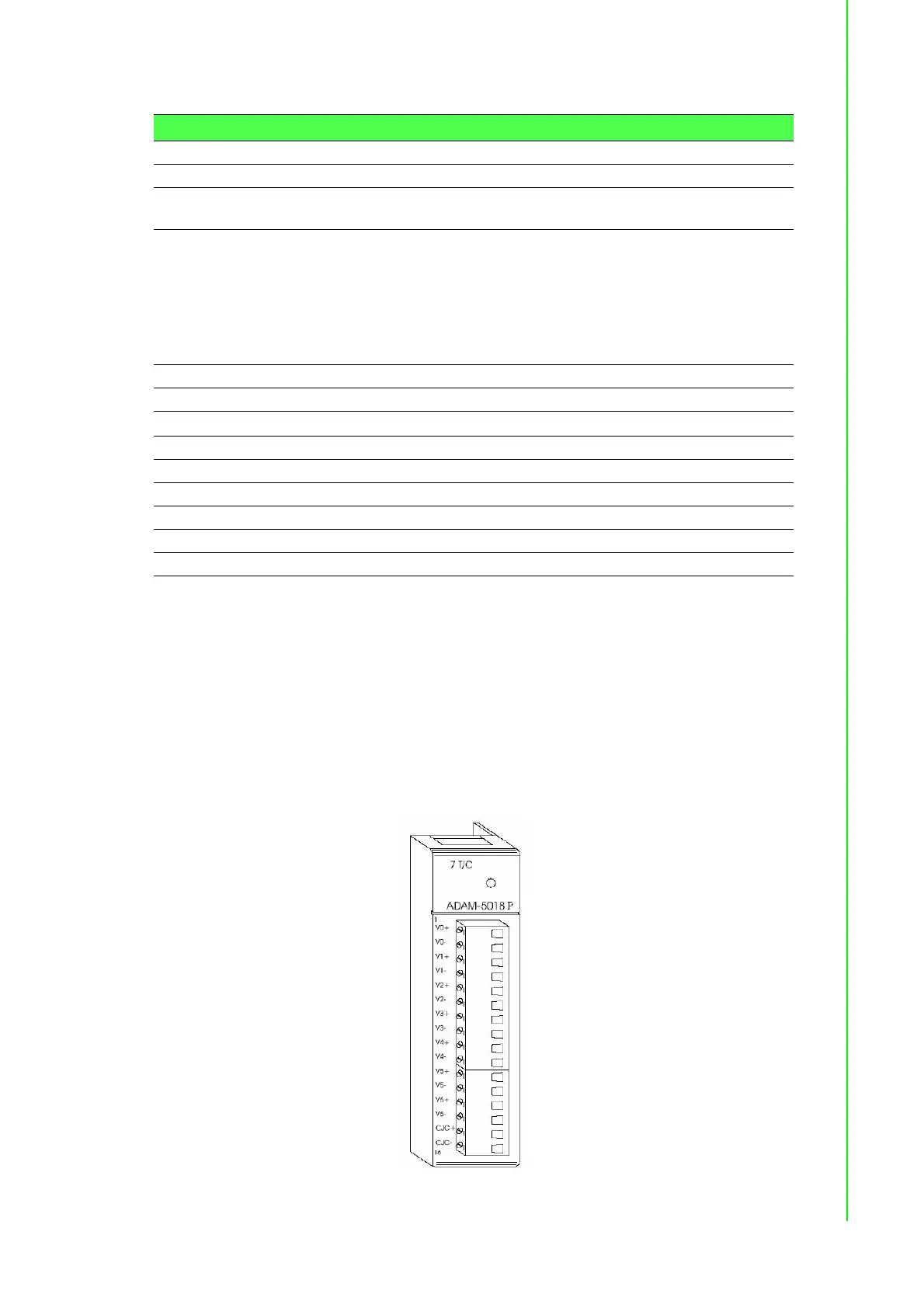

Figure 1.23 ADAM-5018P Module Front View
Table 1.10: Technical Specifications of ADAM-5018
Analog Input Channels Seven differential
Input Type mV, V, mA, Thermocouple
Input Range ± 15 mV, ± 50 mV, ± 100 mV, ± 500 mV, ± 1 V, ± 2.5 V and ±
20 mA
T/C Type and
Temperature Range
J
K
T
E
R
S
B
0 to 760 °C
0 to 1370 °C
-100 to 400 °C
0 to 1400 °C
500 to 1750 °C
500 to 1750 °C
500 to 1800 °C
Isolation Voltage 3000 VDC
Sampling Rate 10 samples/sec (total)
Input Impedance
2M

Bandwidth 13.1 Hz @ 50 Hz, 15.72 Hz @ 60 Hz
Accuracy ± 0.1% or better
Zero Drift ± 0.3 µV/°C
Span Drift ± 25 PPM/°C
CMR @ 50/60 Hz 92 dB min.
Power Consumption 1.2 W
