8.1 Storage Modules
8.1.1 ADAM-5030 2-slot SD Storage Module with 2x USB2.0
ADAM-5030 is a 2-slot secure digital card storage module that provides 2 USB ports
and 2 SD slots. It is fully compliant with USB 2.0 and FAT16 and is also low power
consuming, at only 0.5W. According the volume of SD Card, you can extend the
memory of your controller up 2 GB.
Compatible with ADAM-5560 Series Main Units
The ADAM-5030 interfaces with the main unit through the PCI bus. The ADAM-
5560 series main unit is equipped with a PCI interface connector on 2 slots.
Through adapting the ADAM-5030, the ADAM-5560 can extend the storage
capacity easily.
The ADAM-5030 can also be extended too two USB2.0 ports. These USB ports act
in the same way as the ports on the ADAM-5560 main units.
ADAM-5030 Diagram

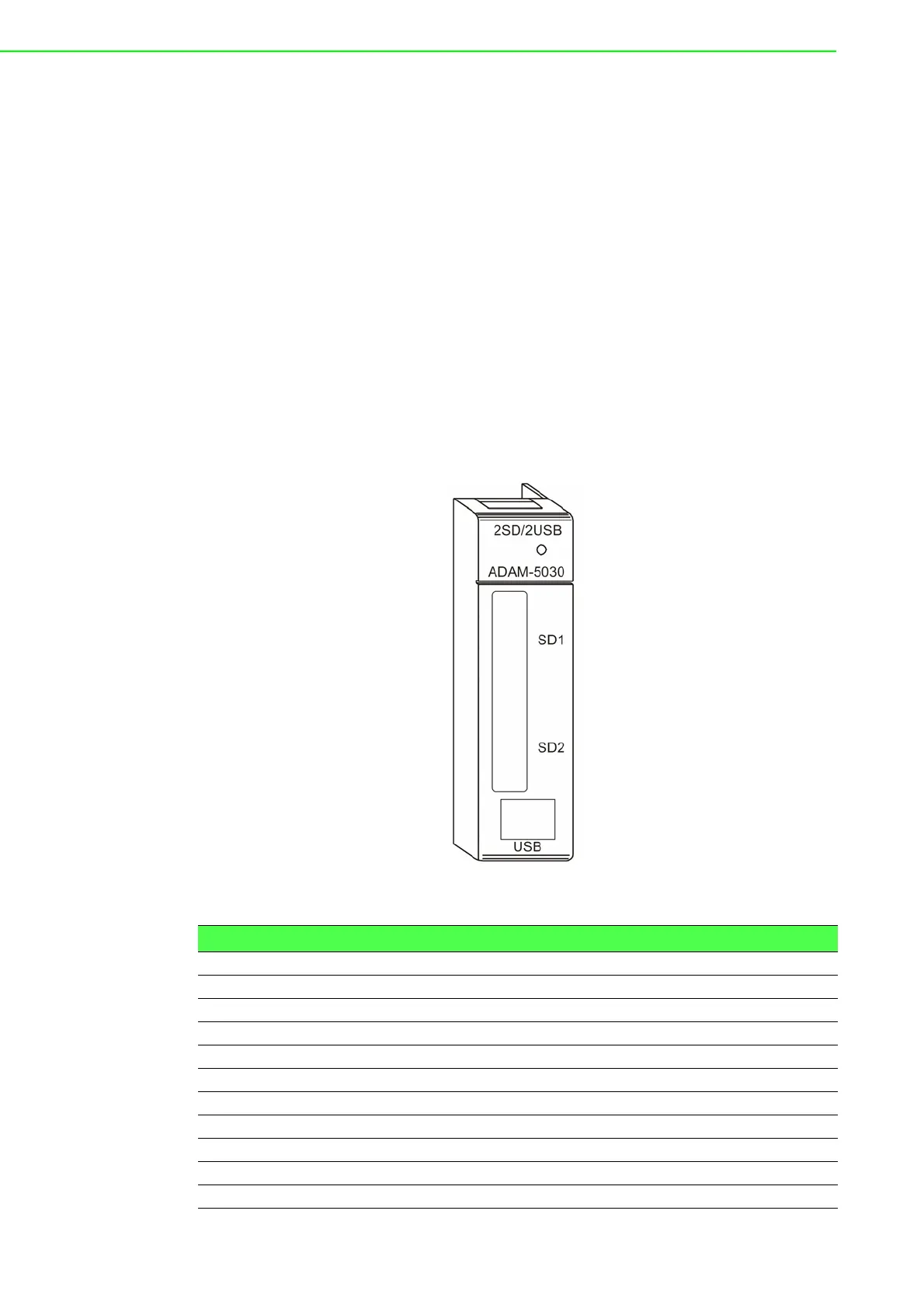

Figure 8.1 ADAM-5030 Module Frontal View
Table 8.1: Technical Specifications of ADAM-5030
USB Type USB Rev 2.0 (Compliant)
USB Number 2
Storage Type SD (Secure Digital Card)
Storage Number 2
Operating Temperature 0~60 (32~140)
Certification CE
Power Consumption 3 W (Max)
Max Storage 1G (Max) x 2
Format FAT16
Surge Protection 10kW
Hot Swap Yes
