ADAM-5000 Series
User Manual
40
4.1.6
AD
AM-5055S 16-c
h Isolated Di
git
al I/O Module with
LED
The ADAM-5055S provides 8 isolated digital
input and 8 isolated output
channels for crit-
ical environments need individual channel isol
ating
protection. Different from other
ADAM-5000 I/O modules,
ADAM-5055S
des
ig
ned
wi
th 2
1 p
in
s p
lug
te
rm
in
al.
AD
AM-5055S

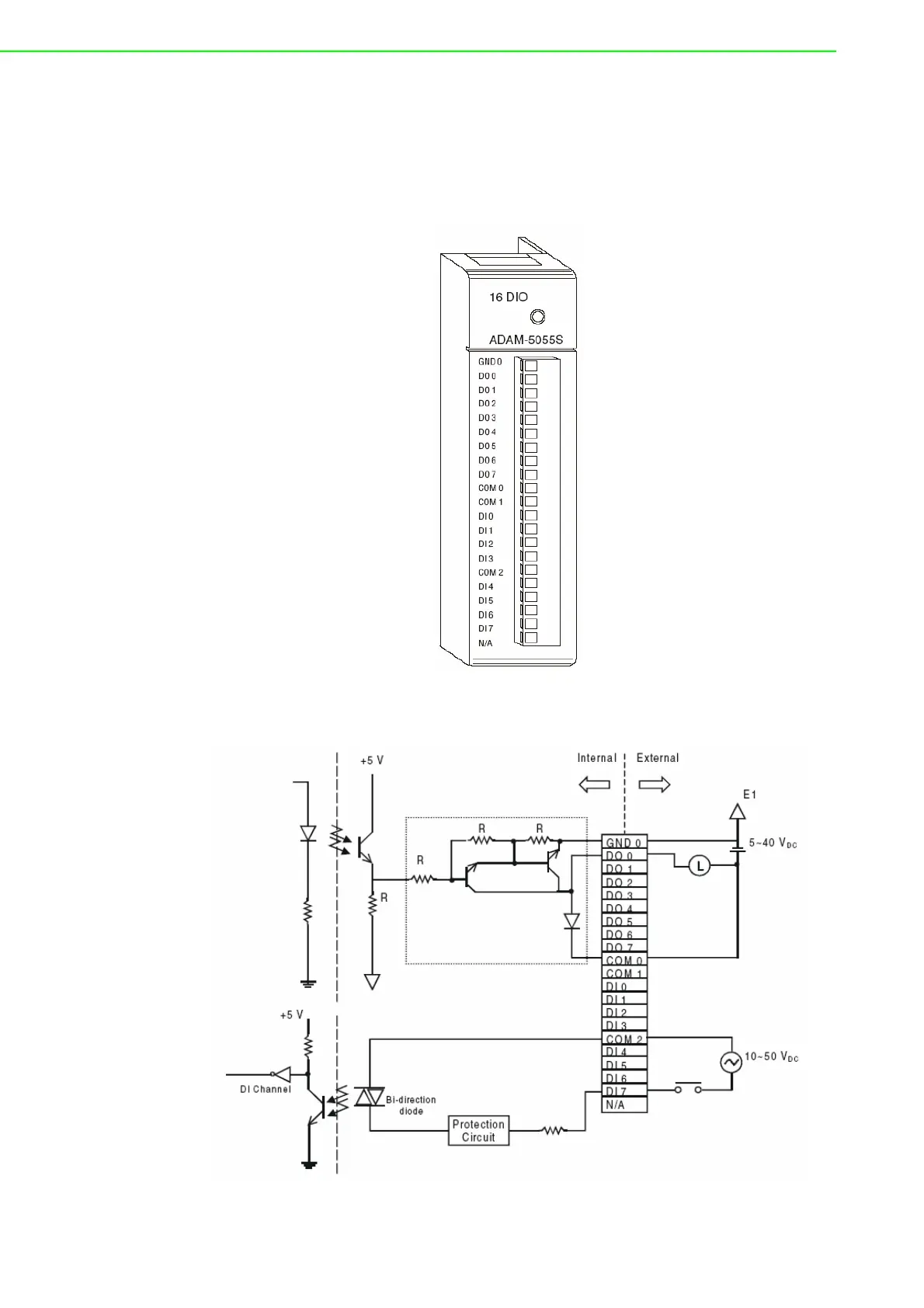

Figure 4.15 ADAM-5055S Module Front View
Application Wiring
Figure 4.16 ADAM-5055S Module Wirin
g Diagram
47
49
