39 ADAM-5000 Series User Manual
Chapter 4 Digital Input
/
Output Modules
4.1.5 ADAM-5053S 32-ch Isolated Digital Input Module
The ADAM-5053S provides 32 isolated digital input channels for critical environ-
ments need individual channel isolating protection. Different from other ADAM-5000
I/O modules, ADAM-5053S designed with 40-pin flat cable wiring terminal.

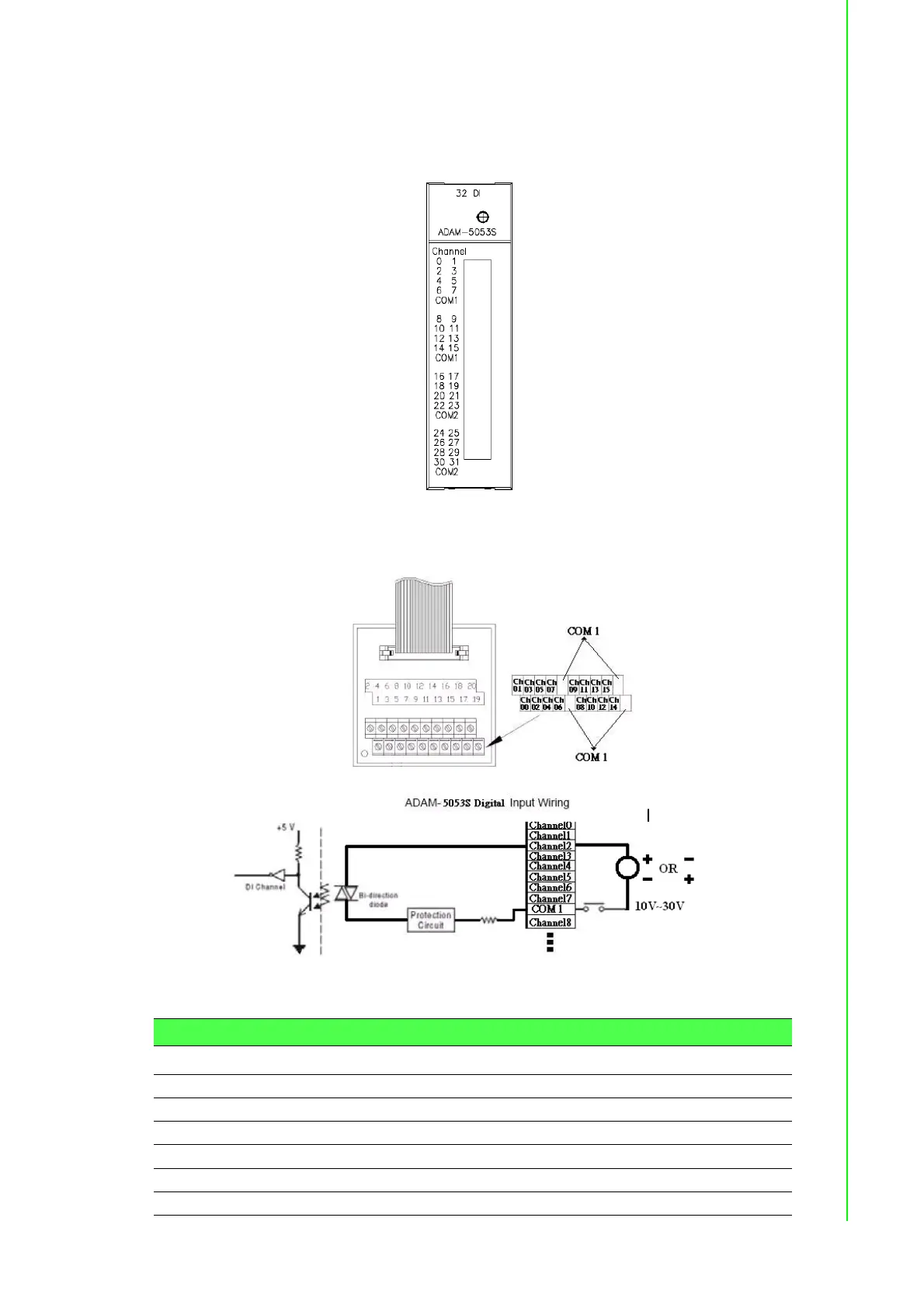

Figure 4.13 ADAM-5053S Module Front View
Application Wiring
Figure 4.14 ADAM-5053S Module Wiring Diagram
Table 4.5: ADAM-5053S Technical Specifications
Point 32
Digital Input Logic Level 0: + 5 V max Logic Level 1: 19 to 35 V
Optical Isolation 2500 VDC
Opto-isolator response time 25 µs
Over-voltage Protection 35 VDC
Power Consumption 1 W (max.)
I/O Connector Type 40-pin flat cable wiring terminal
