53 ADAM-5000 Series User Manual
Chapter 6 Counter
/
Frequency Modules

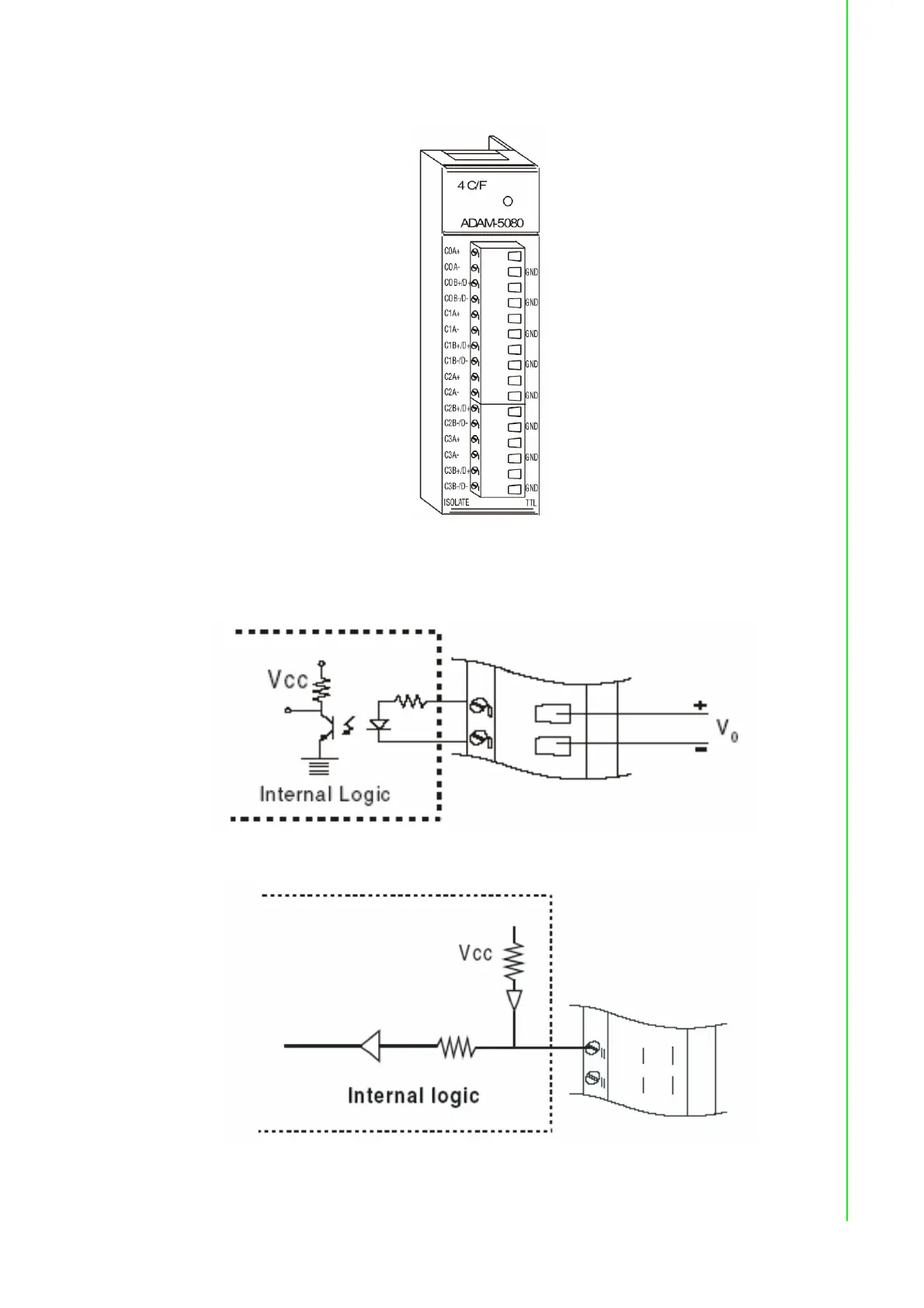

ADAM-5080 Module Diagram
Figure 6.1 ADAM-5080 Module
ADAM-5080 Application Wiring
Figure 6.2 Isolated Input Level
Figure 6.3 TTL Input Level
