43
ADAM-5000 Se
ries User Manual
Chapter 4
Digital Input
/
Output
Modules
4.1.8
AD
AM-5056S 16-ch Isolated Digit
al Output Module with
LED
The ADAM-5056S provides 16 isolated digital output channels for critical environment
s
need individual channel isolati
ng protection.
Different
from other ADAM-5000 I/O mod-
ules, ADAM-5056S designed with 21 pins plug
terminal.
ADAM-5056S

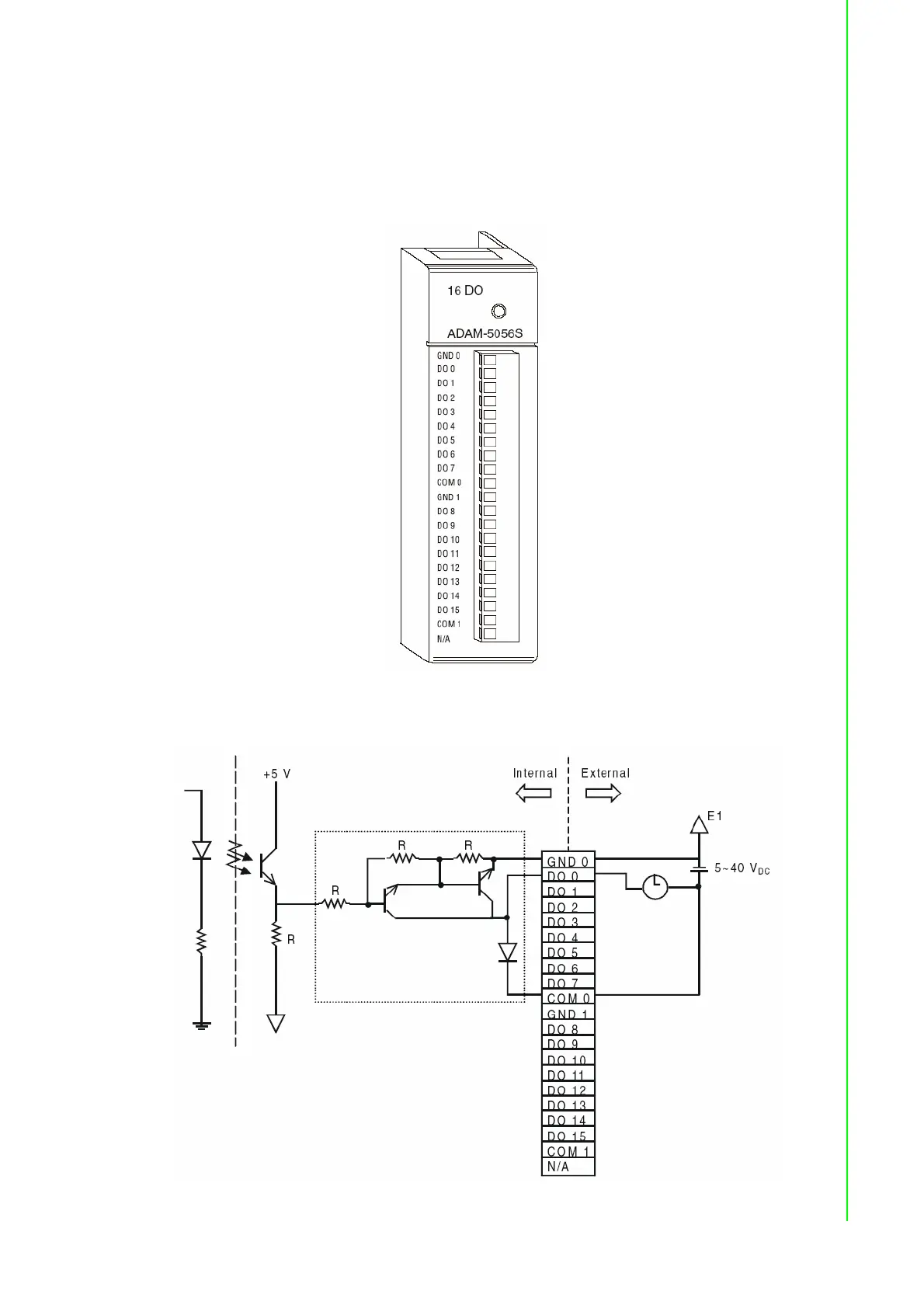

Figure 4.19 ADAM-5056S Module
Front V
iew
Application Wiring
Figure 4.20 ADAM-5056S Module Wiring Diagram
50
52
