2.1 Analog Output Modules
2.1.1 ADAM-5024 4-ch Analog Output Module
The ADAM-5024 is a 4-channel analog output module. It receives its digital input through the
RS-485 interface of the ADAM-5510 system module from the host computer. The format of
the data is engineering units. It then uses the D/A converter controlled by the system module
to convert the digital data into output signals.
You can specify slew rates and start up currents through the configuration software. The ana-
log output can also be configured as current or voltage through the software utility. The mod-
ule protects your equipment from ground loops and power surges by providing opto-isolation
of the D/A output and transformer based isolation up to 3000 VDC.
Slew Rate
The slew rate is defined as the slope indicated the ascending or descending rate per
second of the analog output from the present to the required.
ADAM-5024

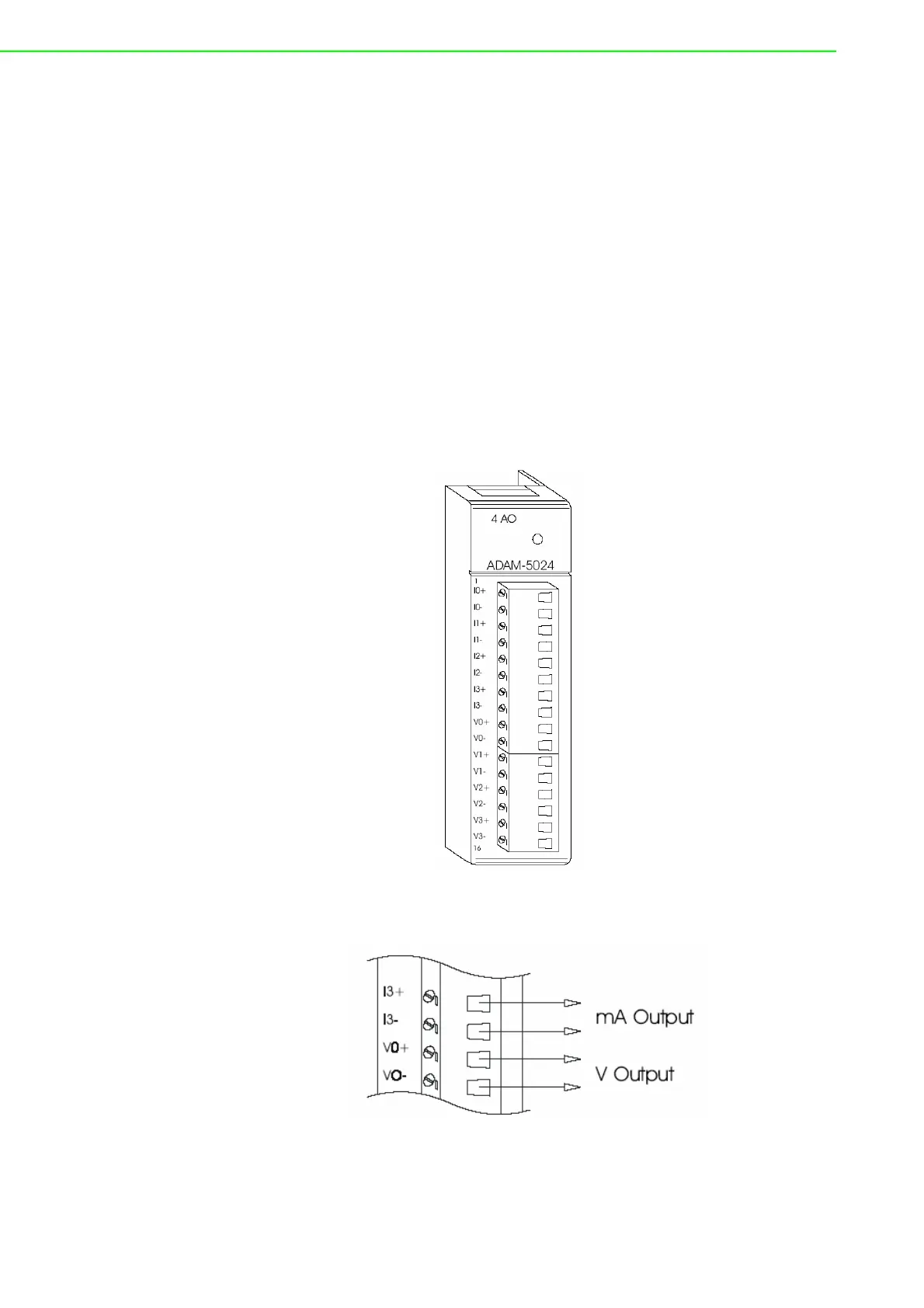

Figure 2.1 ADAM-5024 Module Frontal View
Application Wiring
Figure 2.2 Analog Output
