ADAM-5000 Series User Manual 44
4.1.9 ADAM-5056SO 16-ch Isolated Digital Output Module with LED
The ADAM-5056SO provides 16 channels source type isolated digital output for criti-
cal environments need individual channel isolating protection. Addition to the source
output wiring, all of the specification and command sets are the same with ADAM-
5056S.
ADAM-5056SO

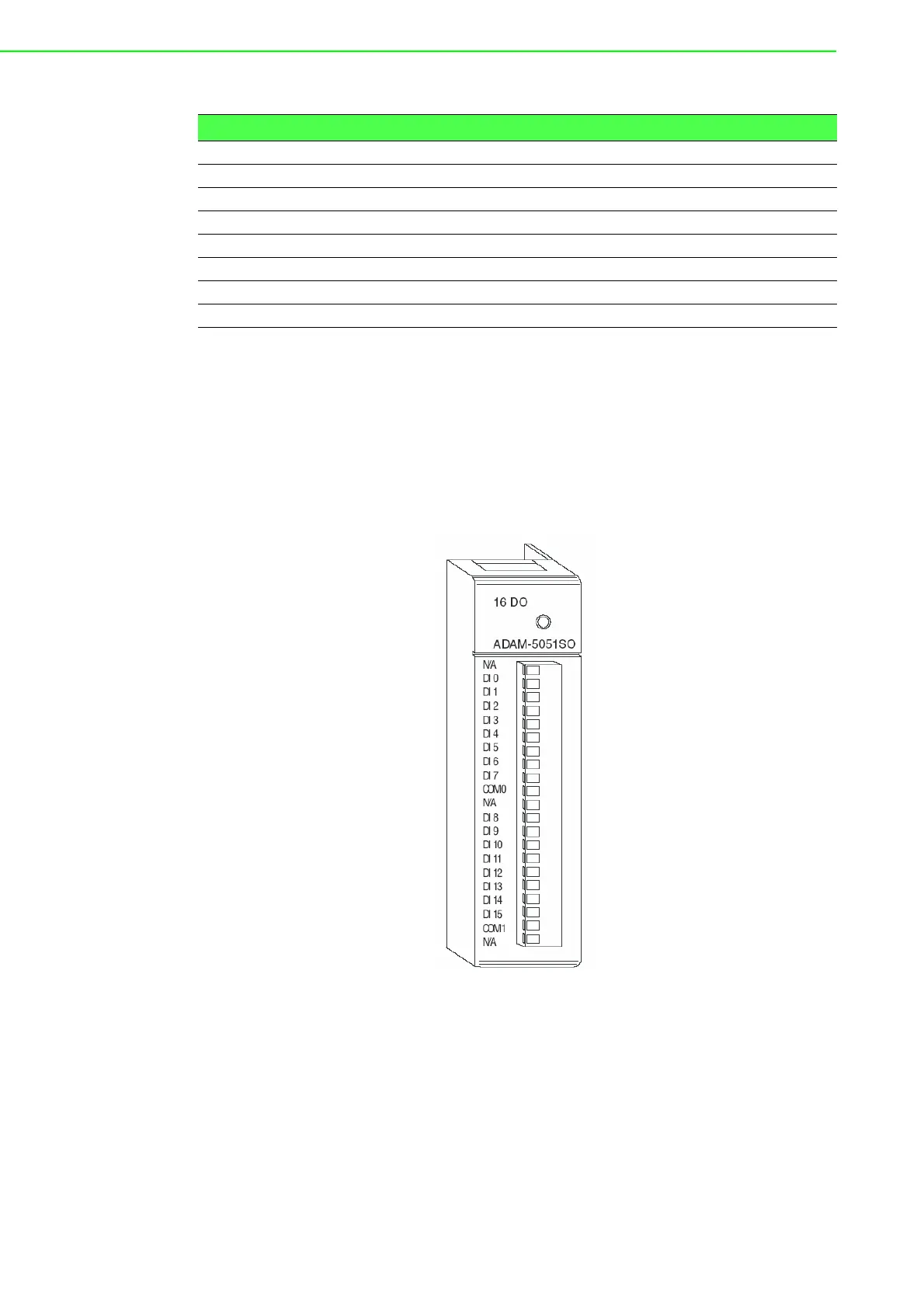

Figure 4.21 ADAM-5056SO Module Front View
Table 4.8: Technical Specifications of ADAM-5056S
Points 16 (8-channel/group)
Digital Output Open collector to 40 V 200 mA max load per channel
Optical Isolation 2500 V
DC
Opto-isolator response time 25 µs
Supply Voltage 5 ~ 40 V
DC
Power consumption 0.6 W
LED Indicator On when active
I/O Connector Type 21-pin plug-terminal
