3 Installation
IST Series UPS (10kVA-200kVA)
User Manual
32

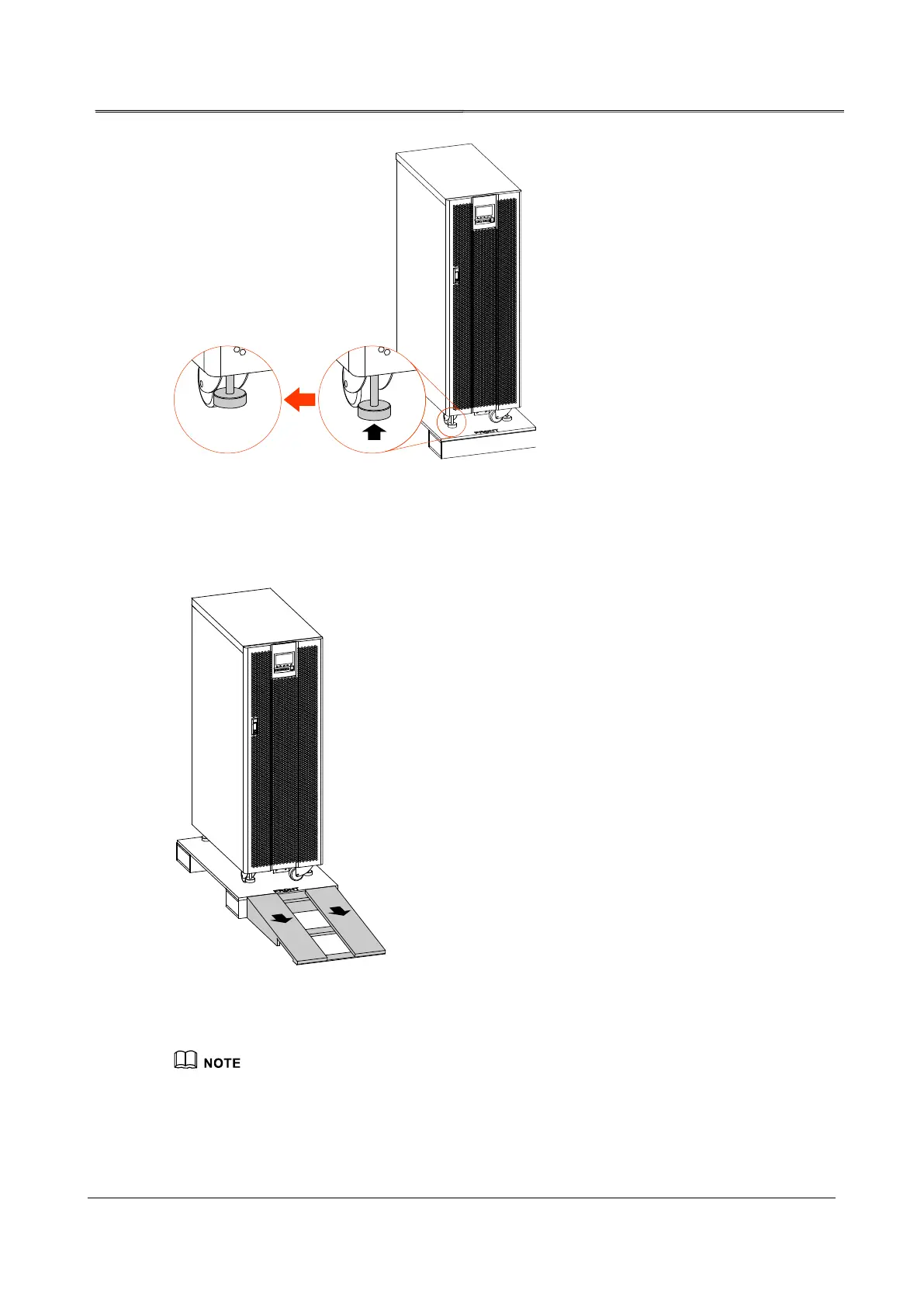

Figure3-6 Adjust supporting feet
Step 7 Put the tilting plate to the front of the UPS, and keep the higher end of the sliding plate close
to the wooden bracket, and move the UPS to ground slowly, as shown in Figure3-7.
Figure3-7 Place the sliding plate
The operation for the sliding plate of the UPS are the same, In above figure, we take 80kVA as an
example to illustrate.
