5.3. TYPES OF CONNECTIONS AVAILABLE WITH MVA SYSTEMS
This accessory can control up to 32 indoor units divided over a maximum of 16 different systems; in compliance with these limits,
the MVASZC device can be connected to one or more MVA systems in the following ways:
D1 D2 D1 D2 D1 D2
G1 G2D1 D2

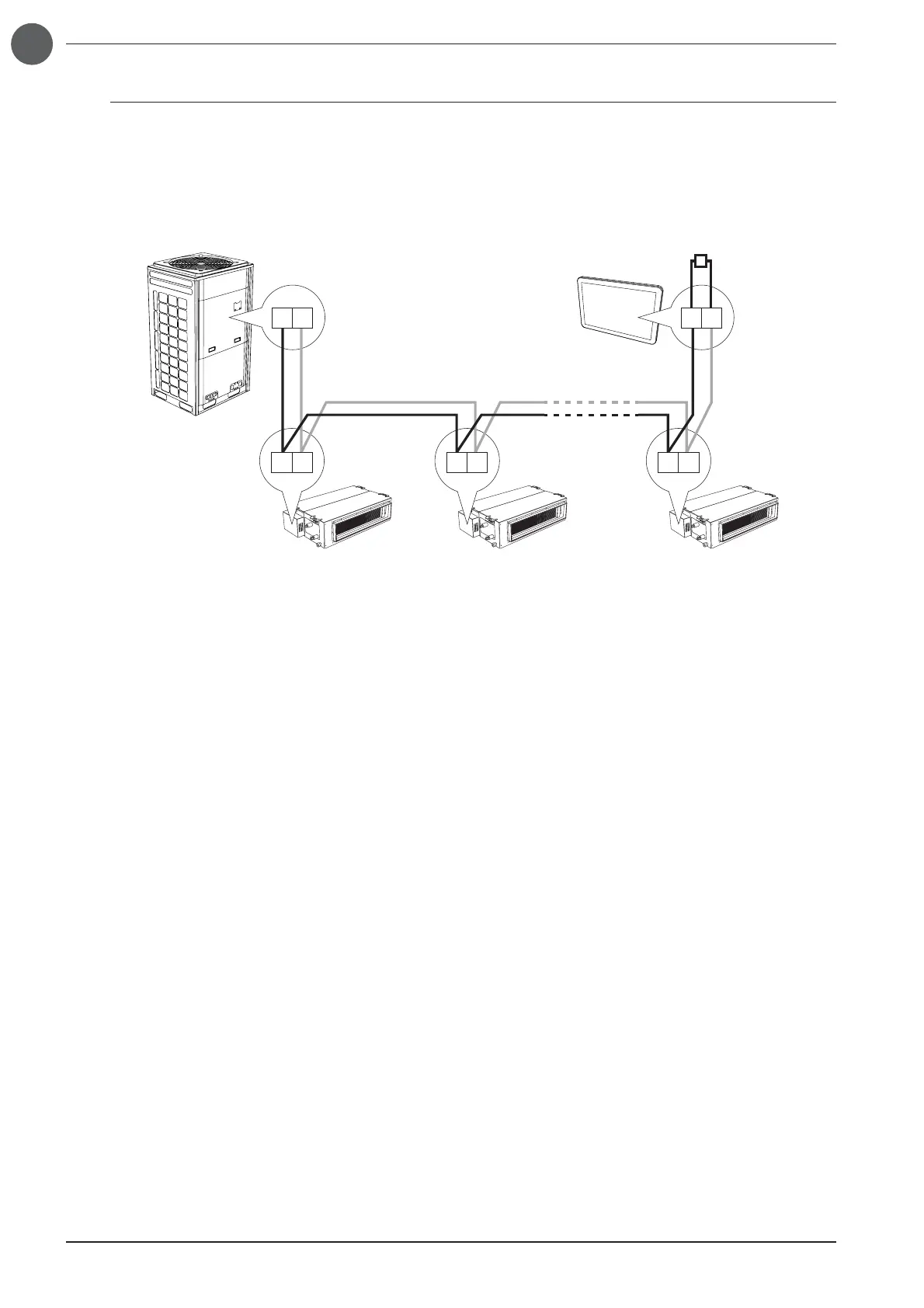

(1) Connection of the MVASZC accessory to a single MVA system:
MVA system
Indoor unit (1) Indoor unit (2) Indoor unit (n)
MVASZC
Termination electric
heater
