5.6. OPERATIONS FOR WALL INSTALLATION

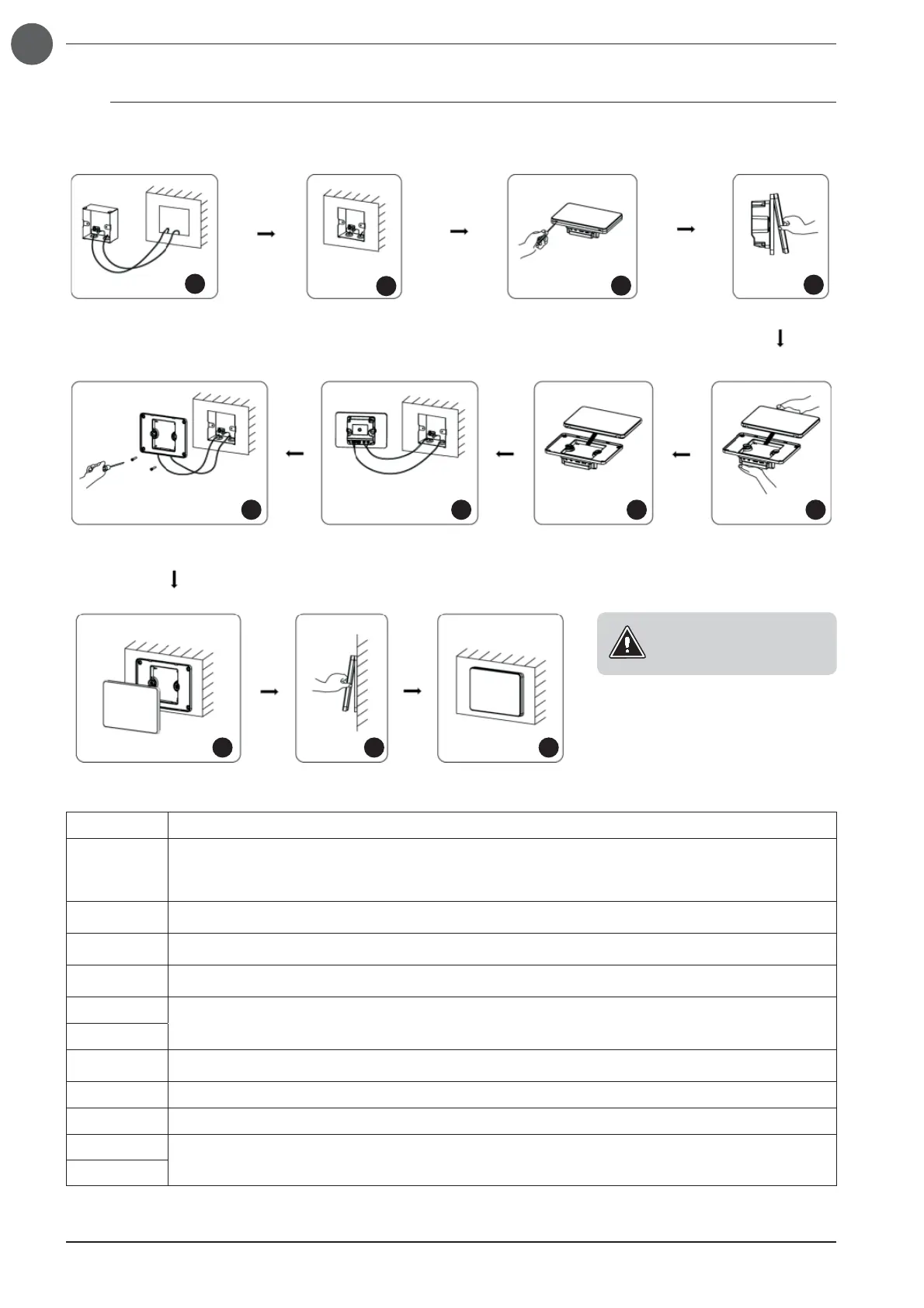

This accessory is designed for wall installation; the following images show the operations to be performed for the correct installa-
tion of the MVASZC control panel:
1
2
3
4
5678
9 10 11
Phase Description
1
Before installation, make sure that the power supply cables and the ones related to the serial communication
arrive at the recess where the recessed box will be installed (using a proper conduit or equivalent systems);
WARNING: the power supply and the serial signal must arrive in separate conduits in order to avoid electro-
magnetic disturbances
2
Mount the recessed box on the wall
(fixing the earthing wire to the case of the recess box, using the supplied screw)
3
Make sure to separate the touch screen panel from the rear cover, levering the panel's edge with a long
screwdriver (this operation must be performed with extreme care so as to avoid damaging the device)
4
GENTLY apply the panel, paying attention to the flat connector that connects the touch screen panel to the
rear board
5
Detach the touch screen panel from the plate, removing the connector from the panel
6
7
Connect the power supply and the serial cable to the rear cover (supply for L and N terminals, serial cable for
G1 and G2 terminals)
8 Fasten the rear cover to the recessed box that was previously mounted, using the two supplied screws
9 Reconnect the touch screen panel's connector to the board on the rear cover
10
Hook the panel to the cover starting from the upper side and pressing lightly until the two parts are
completely coupled
11
To remove the panel, per-
form in reverse order the
installation operations
