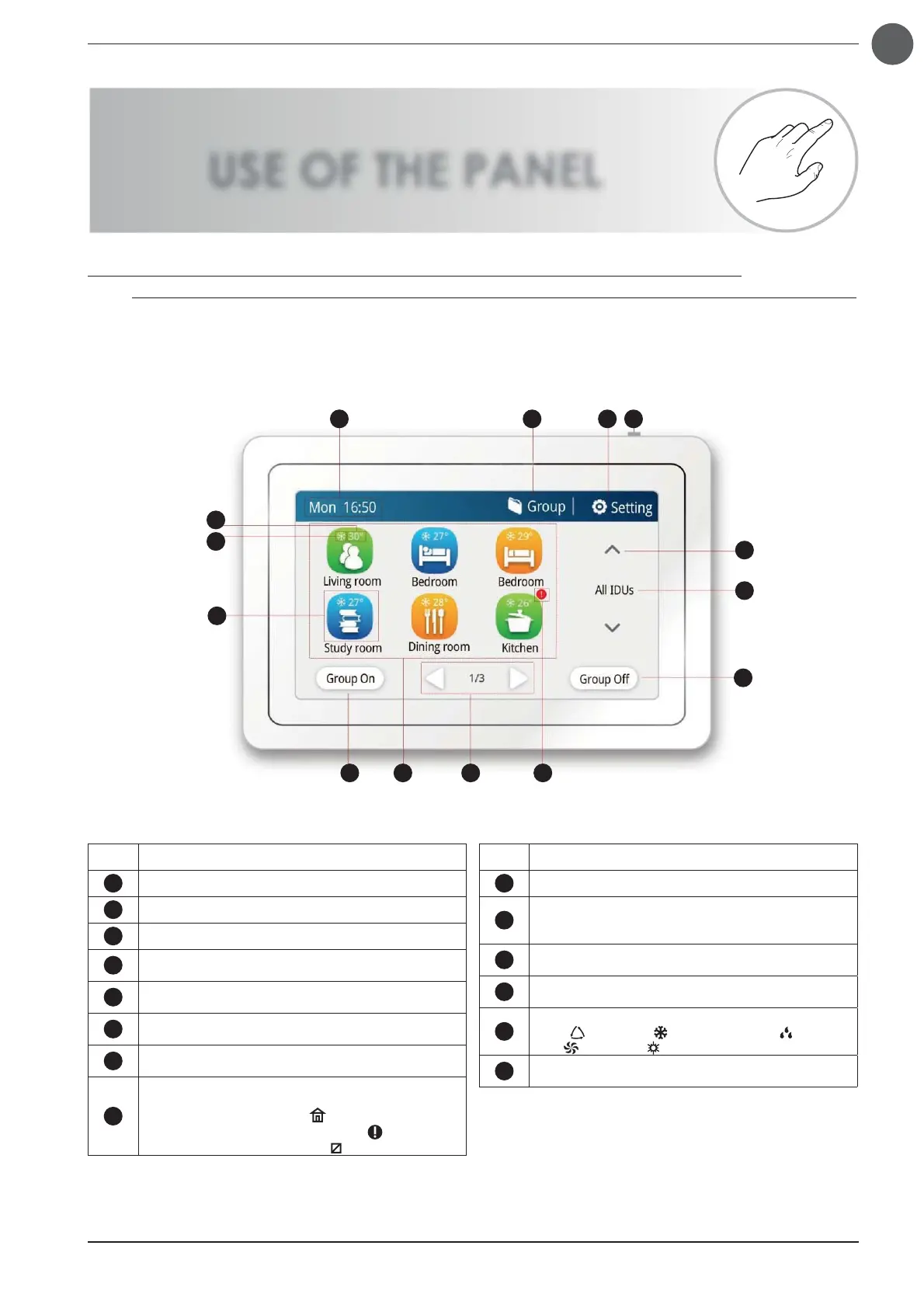

USE OF THE PANEL
Alarm Functional description:
1
Indicates the date and time of the system
2
Accesses the units management window
3
Accesses the settings window
4
Key for display enabling or disabling (one long press
for more than 5 seconds resets the accessory)
5
Sets the control type to be applied (single unit or all
units simultaneously)
6
Indicates the control type currently set for the sys-
tem's units
7
Allows switching off all units currently listed on the
page
8
Indicates a specific state of the indoor unit, which
may be:
• The indoor unit is MASTER ( );
• The indoor unit generated an error (
);
• The indoor unit is "Protected" ( );
Alarm Functional description:
9
Active page
10
This area indicates the indoor units of the page; Also
allows to go to the next or previous page (if the icon
is grey, there is no next or previous page)
11
Allows switching on all units currently listed on the
page
12
Accesses the management window of the selected
indoor unit
13
Indicates the operating mode active on the unit:
Auto ( ), Cooling ( ), Dehumidification ( ) , Ventila-
tion ( ), Heating ( )
14
Indicates the current temperature setpoint set on the
indoor unit
6. USER INTERFACE
6.1. TOUCHSCREEN PANEL - MAIN MONITOR
The MVASZC accessory has an user interface operated through a colour touch screen display; the interface is supplied with a
main screen from which it is easy to check the status of all units managed from the accessory, in addition to specific pages with
which specific functions and programs can be set. The following describes the main screen, or rather the screen displayed during
the normal operation of the device:
11
12
13
14
10
9
4
5
6
7
8
321
