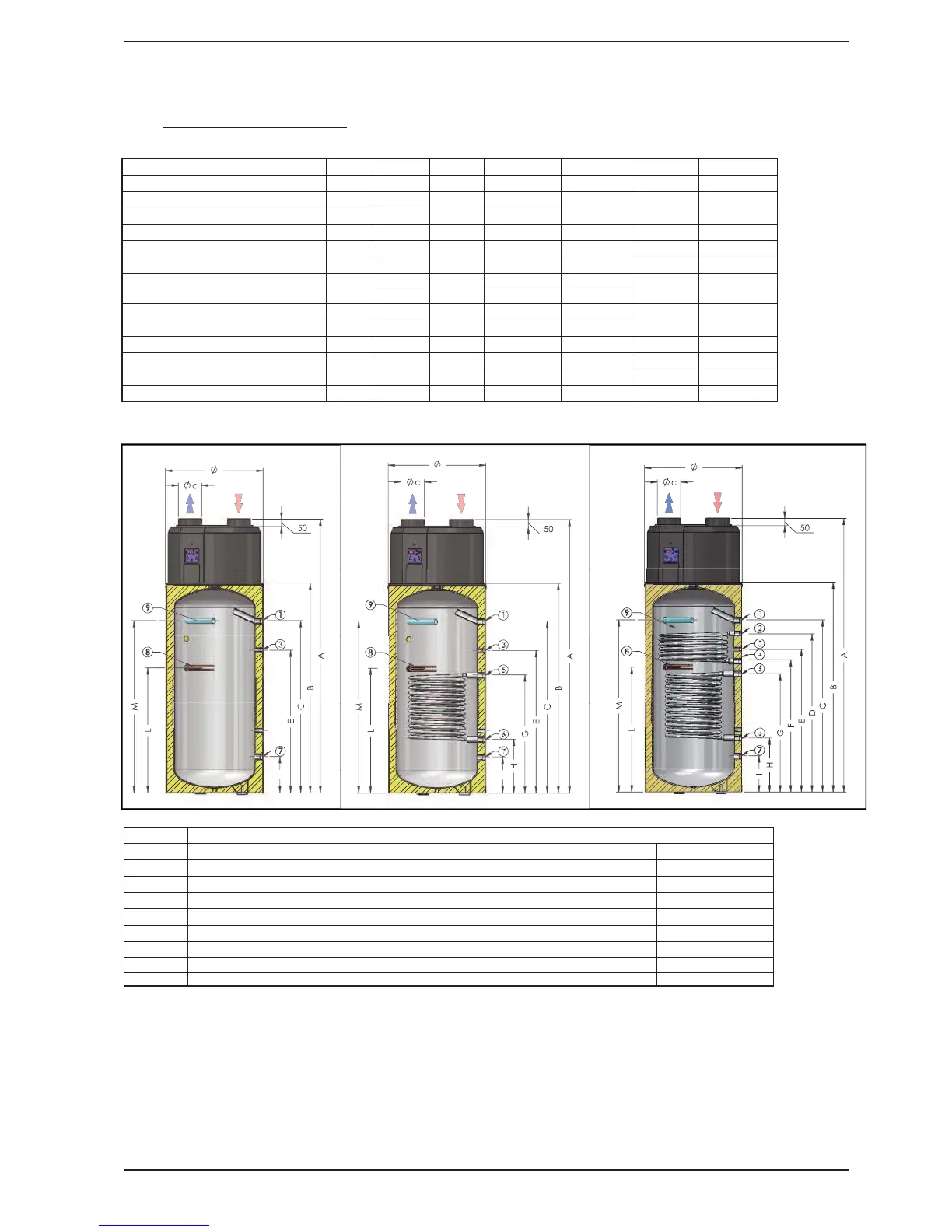

5.1. WEIGHTS AND SIZES
model SWP200 SWP300 SWP200 S1 SWP300 S1 SWP200 S2 SWP300 S2
A mm 1670 1865 1670 1865 1670 1865
B mm 1235 1430 1235 1430 1235 1430
C mm 975 1165 975 1165 1080 1165
D mm / / / / 975 1070
E mm 635 965 635 965 635 965
F mm / / / / 835 895
G mm / / 750 800 750 800
H mm / / 290 365 290 365
I mm 220 245 220 245 220 245
L mm 810 845 810 845 810 845
M mm 1005 1040 1005 1040 1005 1040
Øc mm 160 160 160 160 160 160
Ø mm 660 660 660 660 660 660
Transportation weight kg 100 122 107 137 137 155
POS DESCRIPTION
1 Flow heat water Rp 1 ”
2 Heating delivery Rp 1 ”
3 Recirculation Rp 1 /2 ”
4 Heating return Rp 1
5 Alternative energy delivery Rp 1 ”
6 Alternative energy return Rp 1 ”
7 Cold water Rp 1 ”
8 Electric heating element Rp 1” 1/2
9 Anode Rp 1” 1/4
