4. APPLICATION DESIGN CONSIDERATIONS HI ROLLER - BELT CONVEYORS
4.6. LOADING CONSIDERATIONS HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE
32 P115506 R3
8. For a 45° inlet, material must flow down the back slope of the inlet when the
gate opens to ensure an even flow that properly acceleration with the speed
of the belt (Figure 4.5).

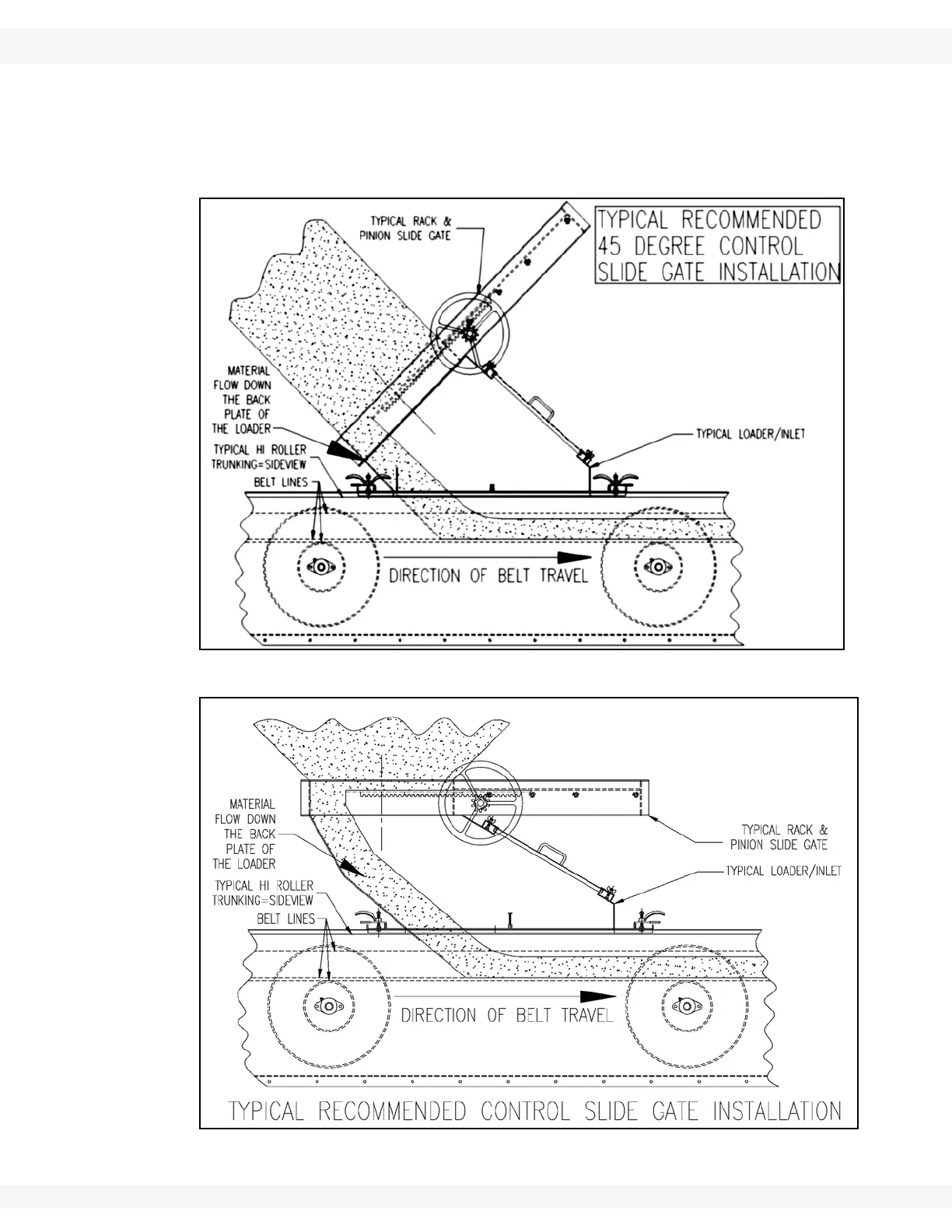

Figure 4.5 Standard Inlet - 45° w/ Matching Flange & Control Gate
Figure 4.6 Gate Orientation
