HI ROLLER - BELT CONVEYORS 5. INSTALLATION
HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE 5.4. BELT INSTALLATION
P115506 R3 43

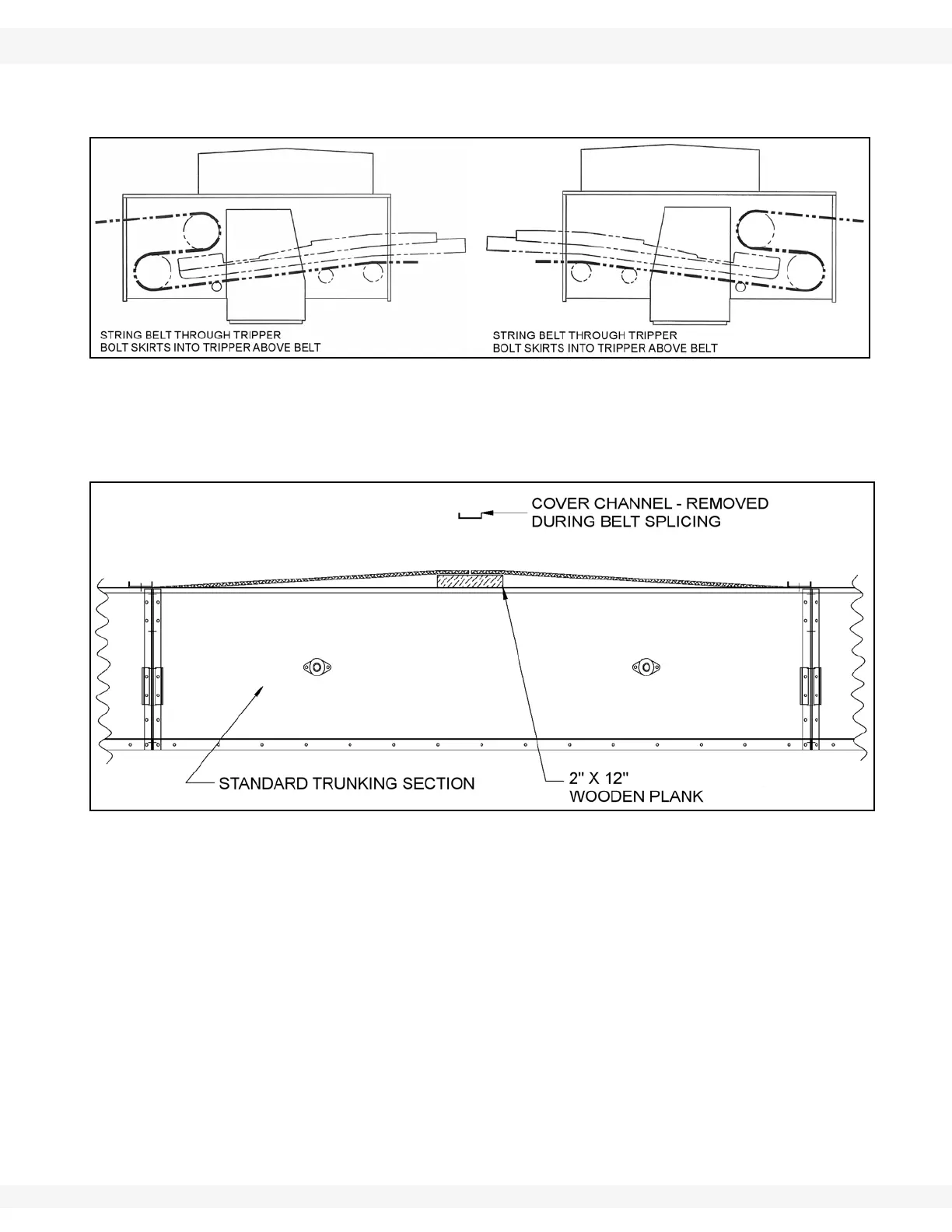

Note: If the conveyor is equipped with an intermediate discharge tripper, string belt
according to Figure 5.12.
Figure 5.12
2. Place a 2" x 12" wood plank or equivalent width on the trunking section (see
Figure 5.13). Bring the belt together over the woodworking surface that will
be used for splicing.
Figure 5.13
3. Find the belt centerline. (See Figure 5.14.)
a. Measure the belt width at a minimum of five points. The first measurement
should be near the end of the belt.
b. Measure the belt width in 10” intervals; mark them.
c. Each measurement must be divided by two and marked on the belt.
d. Draw a straight centerline using the points as a guide.
