HI ROLLER - BELT CONVEYORS 5. INSTALLATION
HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE 5.4. BELT INSTALLATION
P115506 R3 45

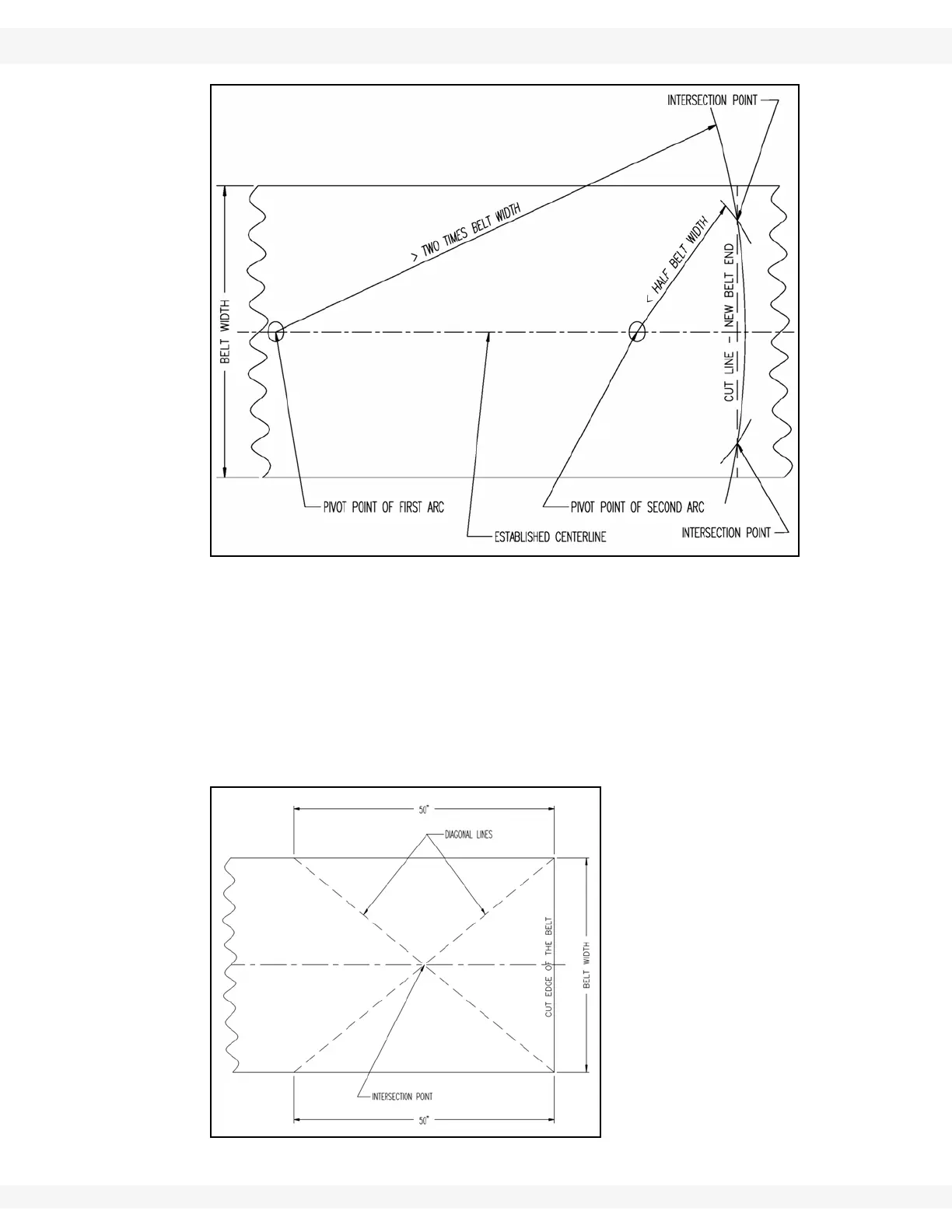

Figure 5.15
5. Check that the belt cut is square. (See Figure 5.16.)
a. Measure lengthwise 50” or more from each edge of the belt using exactly
the same measurement on either side.
b. Draw a diagonal line with a straight edge from the corner of one
measurement to the opposite corner of the other measurement. Repeat for
opposing corners. You will have drawn an “X” on the belt.
c. Ensure that the intersection point of the 2 lines lies on the centerline.
Figure 5.16
