HI ROLLER - BELT CONVEYORS 5. INSTALLATION
HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE 5.9. HAZARD MONITORING DEVICES
P115506 R3 71

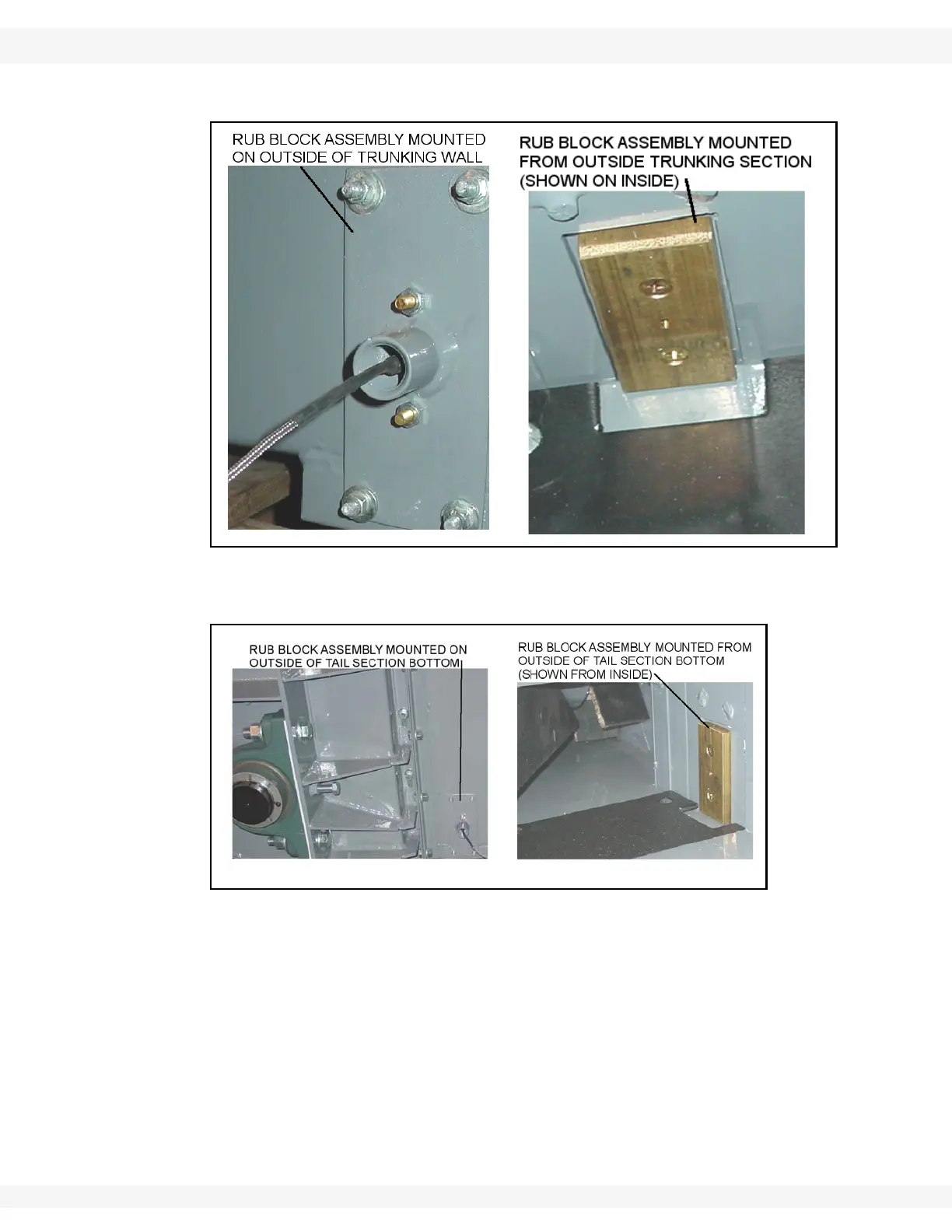

STANDARD TRUNKING SECTIONS
Figure 5.48
STANDARD TAIL SECTIONS
Figure 5.49
TYPICAL SURFACE MOUNT SENSORS
Figure 5.50 shows a typical wiring harness with a temperature sensor molded in
the end of the washer type end. These surface mounted sensors can be used to
monitor pulley alignment. The customer must specify the supplier of these
devices.
