5. INSTALLATION HI ROLLER - BELT CONVEYORS
5.9. HAZARD MONITORING DEVICES HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE
72 P115506 R3
Figure 5.50

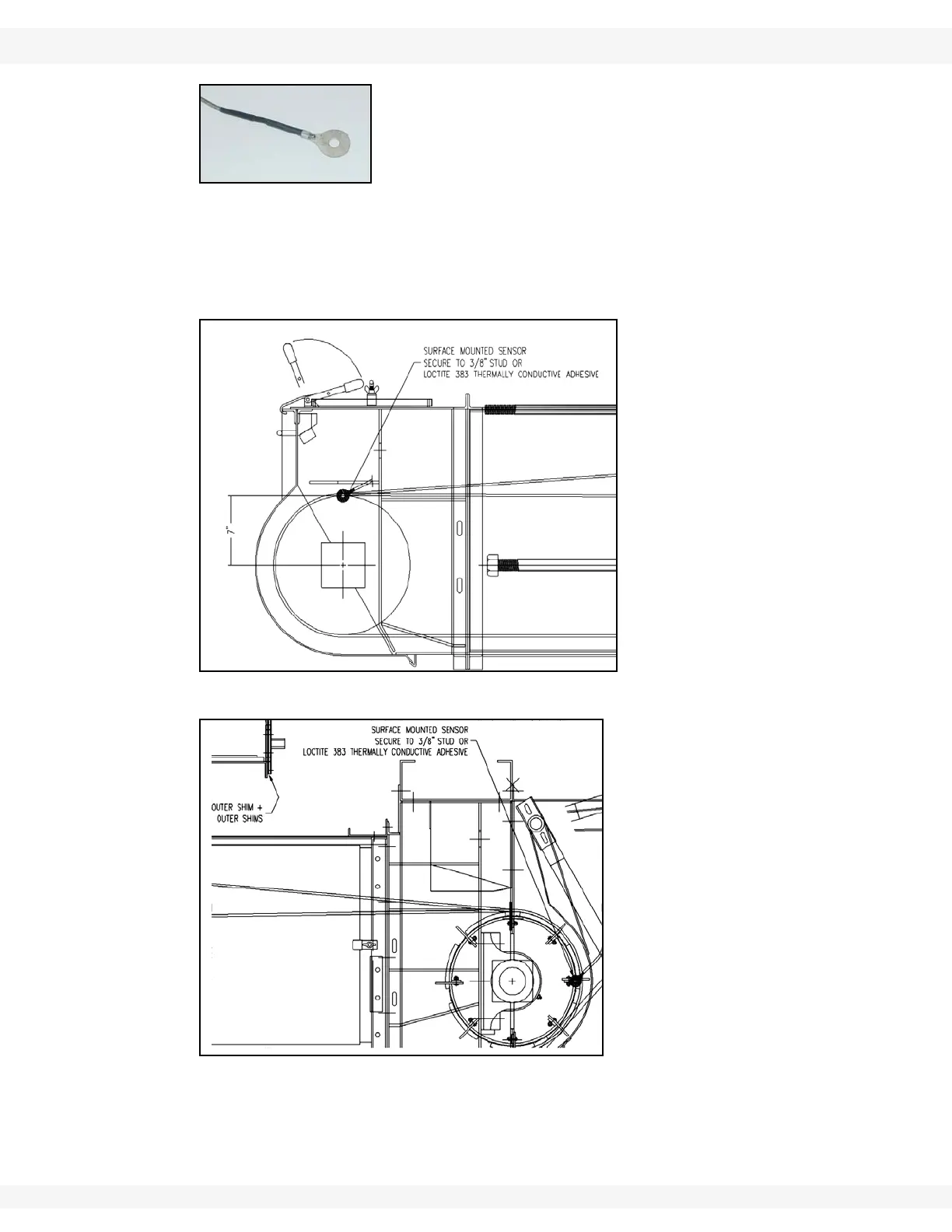

Figure 5.51 and 5.52 show the mounting of a surface mounted sensor on the
side of a tail and head section of a Hi Roller Conveyor. Please note that the
proper location is very important. All applications require different arrangements
to properly monitor the pulley.
Figure 5.51
Figure 5.52
