HI ROLLER - BELT CONVEYORS 5. INSTALLATION
HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE 5.9. HAZARD MONITORING DEVICES
P115506 R3 73
Figure 5.53
BEARING MONITORS
There are many different types of bearing monitors that can be used to monitor
the head, snubber, tripper, and tail bearings. The customer must specify the
supplier of these devices. Several photos of the bearings that are typically

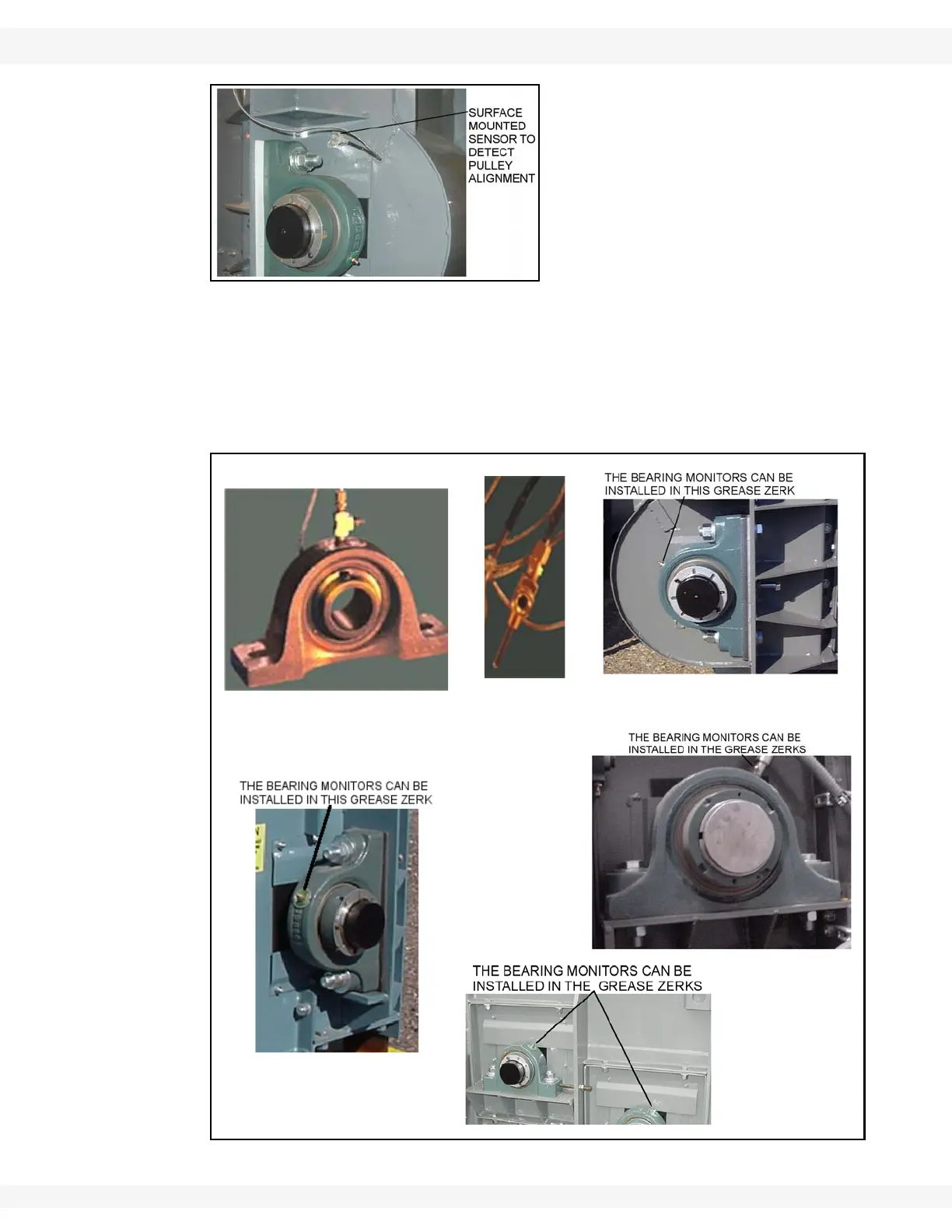

monitored follow:
Figure 5.54 Various Monitors
TYPICAL INSTALLATION OF A
BEARING MONITOR
TEMP. PROBE
BEARING
MONITOR
TAIL PULLEY BEARINGS
HEAD PULLEY
BEARINGS
SNUBBER
PULLEY
BEARING
TRIPPER
PULLEY
BEARINGS
