7. MAINTENANCE HI ROLLER - BELT CONVEYORS
7.2. BELT TRACKING GUIDE HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE
92 P115506 R3

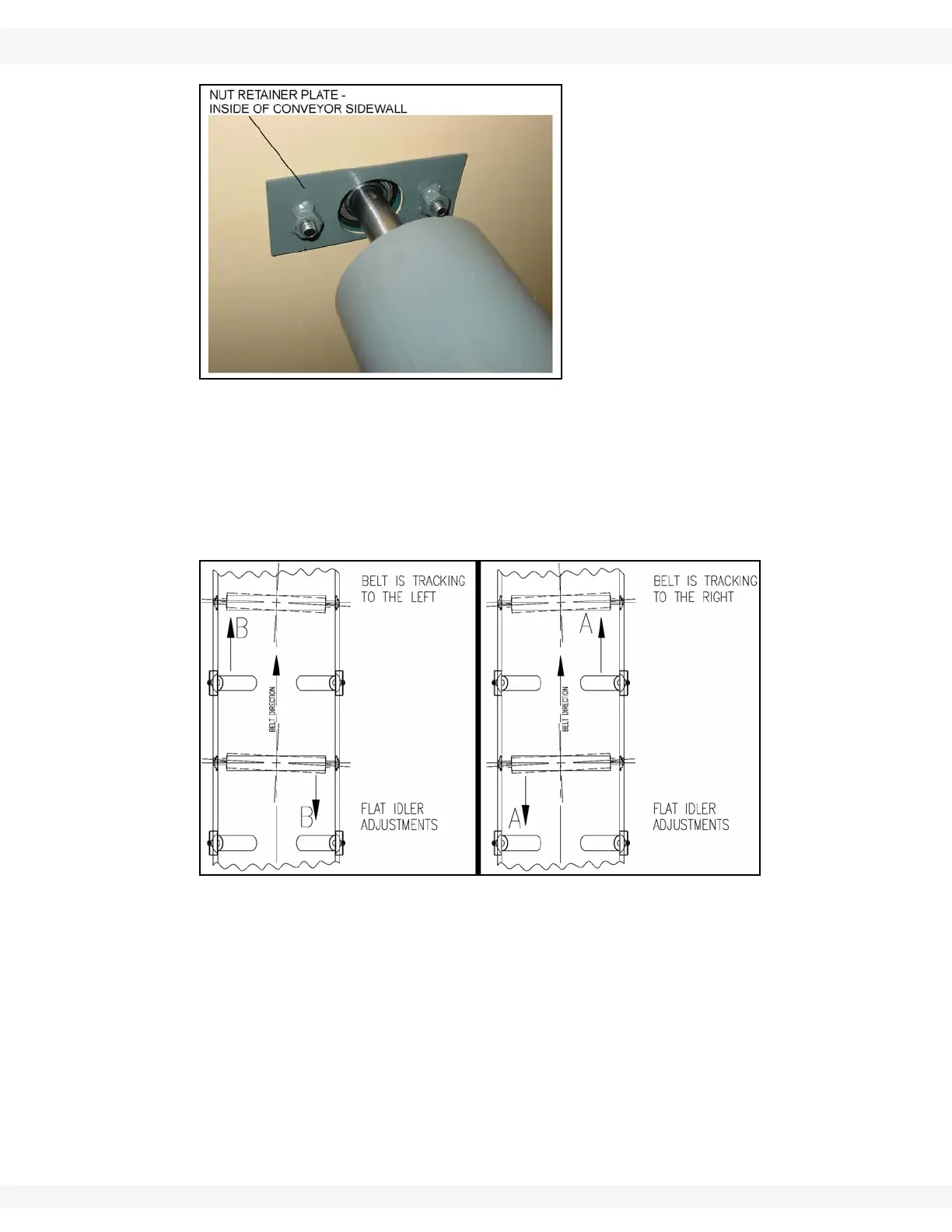

Figure 7.9
3. If the belt is tracking to the right in the conveyor, the end of the idler should be
shifted in "A" position. If the belt is tracking to the left, the end of the idler
should be shifted in "B" position. (See Figure 7.10.) Remember, the belt will
move toward the end of the idler that the belt first contacts.
Note: "Right" or "Left" is determined by standing at the tail section and looking toward
the head section of the conveyor.
Figure 7.10
4. Test-run the conveyor both empty and properly loaded. Continue the training
process until the desired training is achieved.
5. If adjusting the bearings on one side of the conveyor that does not achieve
proper training, repeat the procedure on the opposite side.
