Identifying Cables
9
Remote Cables

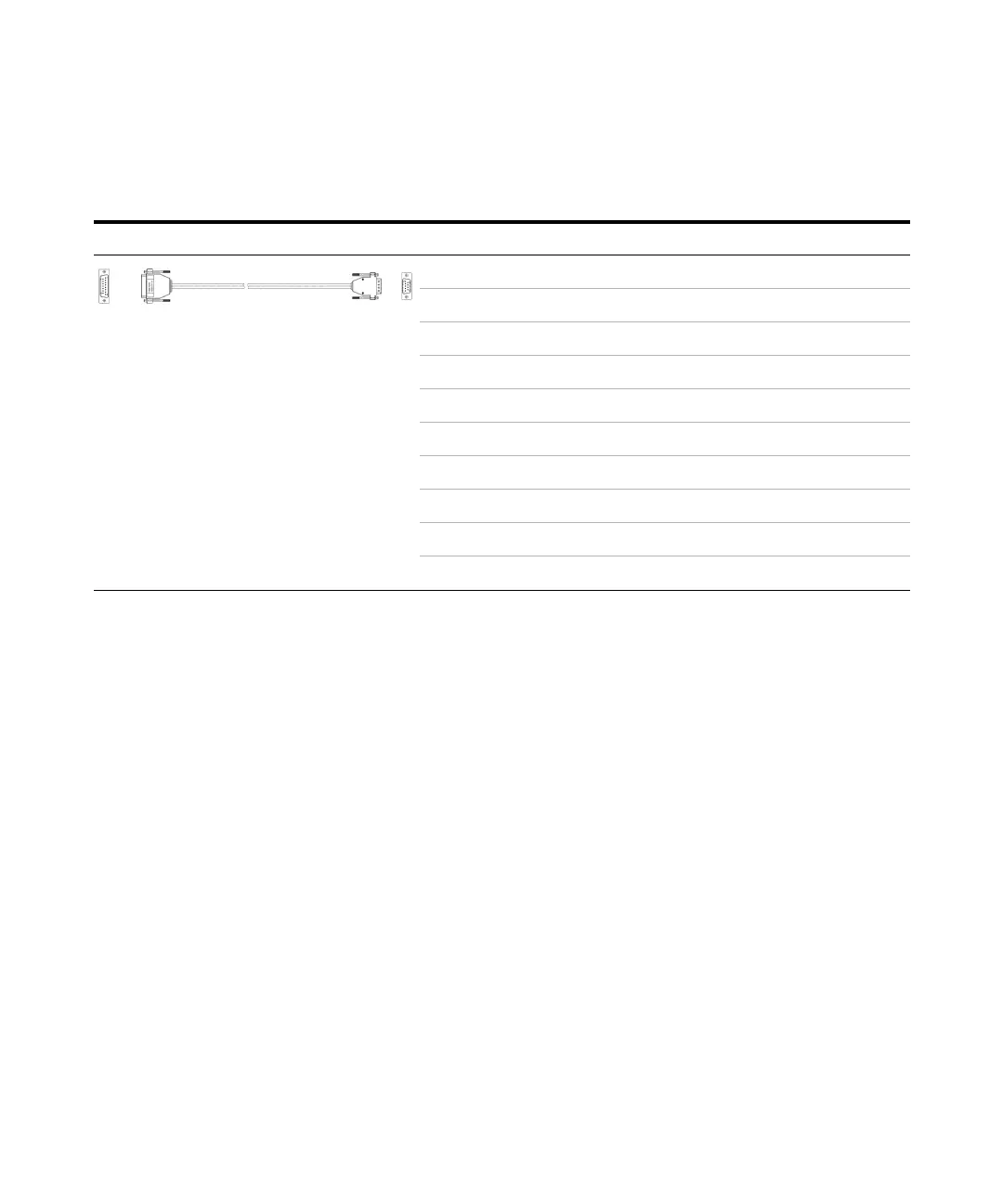

• 5188-8045 ERI to APG (Connector D_Subminiature 15 pin (ERI), Connector
D_Subminiature 9 pin (APG))
p/n 5188-8045 Pin (ERI) Signal Pin (APG) Active (TTL)
10 GND 1
1Start Request9 Low
2Stop 8 Low
3Ready7 High
5Power on6 High
4 Future 5
6 Shut Down 4 Low
7Start 3 Low
8 Prepare 2 Low
Ground Cable Shielding NC
