76 1260 Infinity II Analytical-Scale & Bio-inert Fraction Collector User Manual
4
Preparing the Fraction Collector
Setting up the Fraction Collector with the Instrument Control Interface
Fraction Collector User Interface (Dashboard Panel)
Table 1 0 Fraction Collector User Interface
Parameter Description

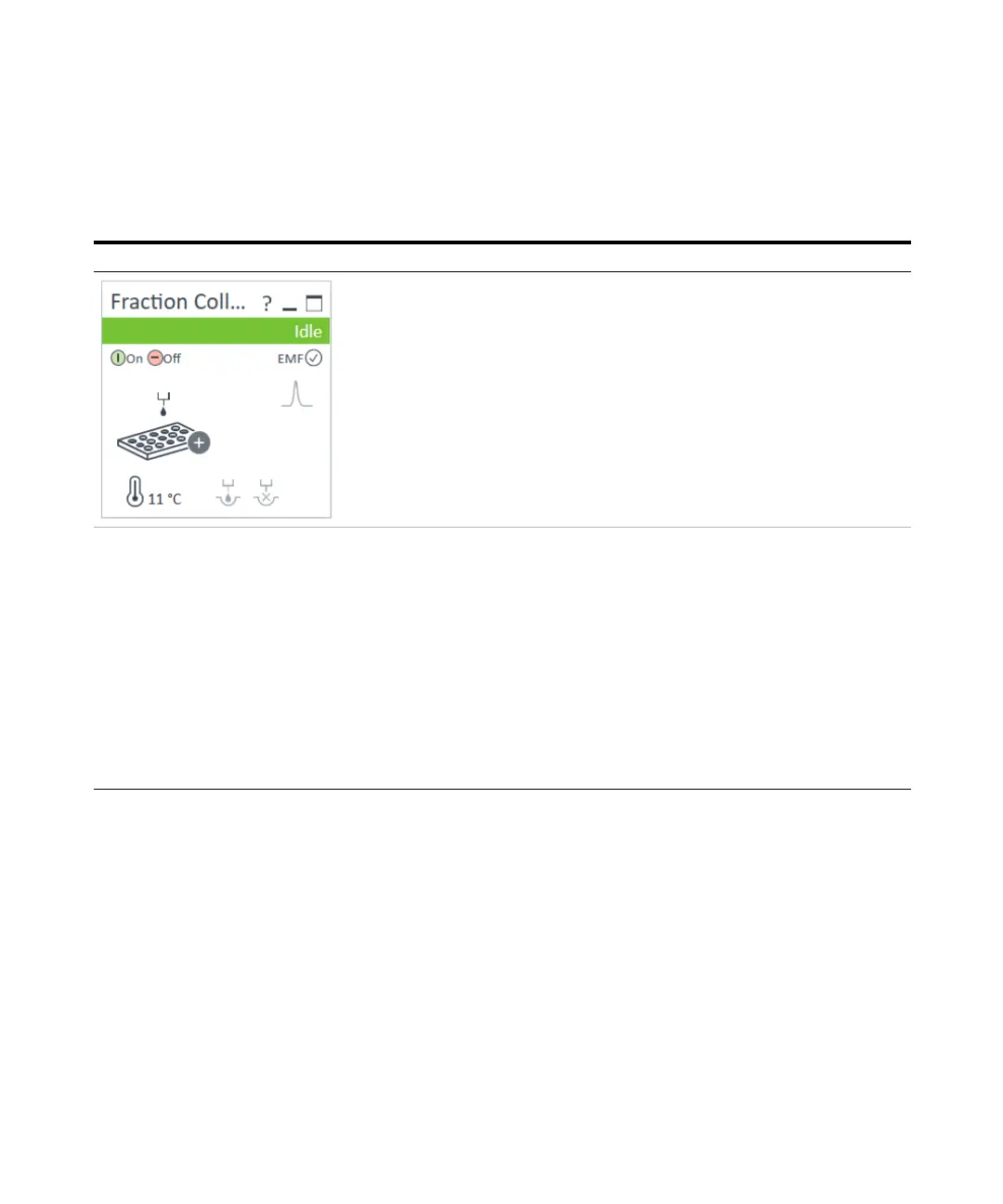

Module graphic
The items in the Fraction Collector graphic have the following meaning
and function:
• 1: Denotes collection to a fraction location. The current collection
location is shown to the right of the graphic.
• 2: Starts manual fraction collection. This button is active only during a
run where fraction collection is enabled.
• 3: Stops manual fraction collection. This button is active only during a
run where fraction collection is enabled.
Instrument Actuals
The following fraction collector actuals are displayed:
• Current location:
The fraction location currently in use.
•Fraction mode:
The current fraction mode.
•Rinse Status:
The status of the Rinse procedure
• Temperature:
G1364F and G5664B with thermostat configured. The fraction
thermostat temperature (in ° C). In the case of an FCC, the module
name is also displayed
