1260 Infinity II Analytical-Scale & Bio-inert Fraction Collector User Manual 77
Preparing the Fraction Collector
4
Setting up the Fraction Collector with the Instrument Control Interface

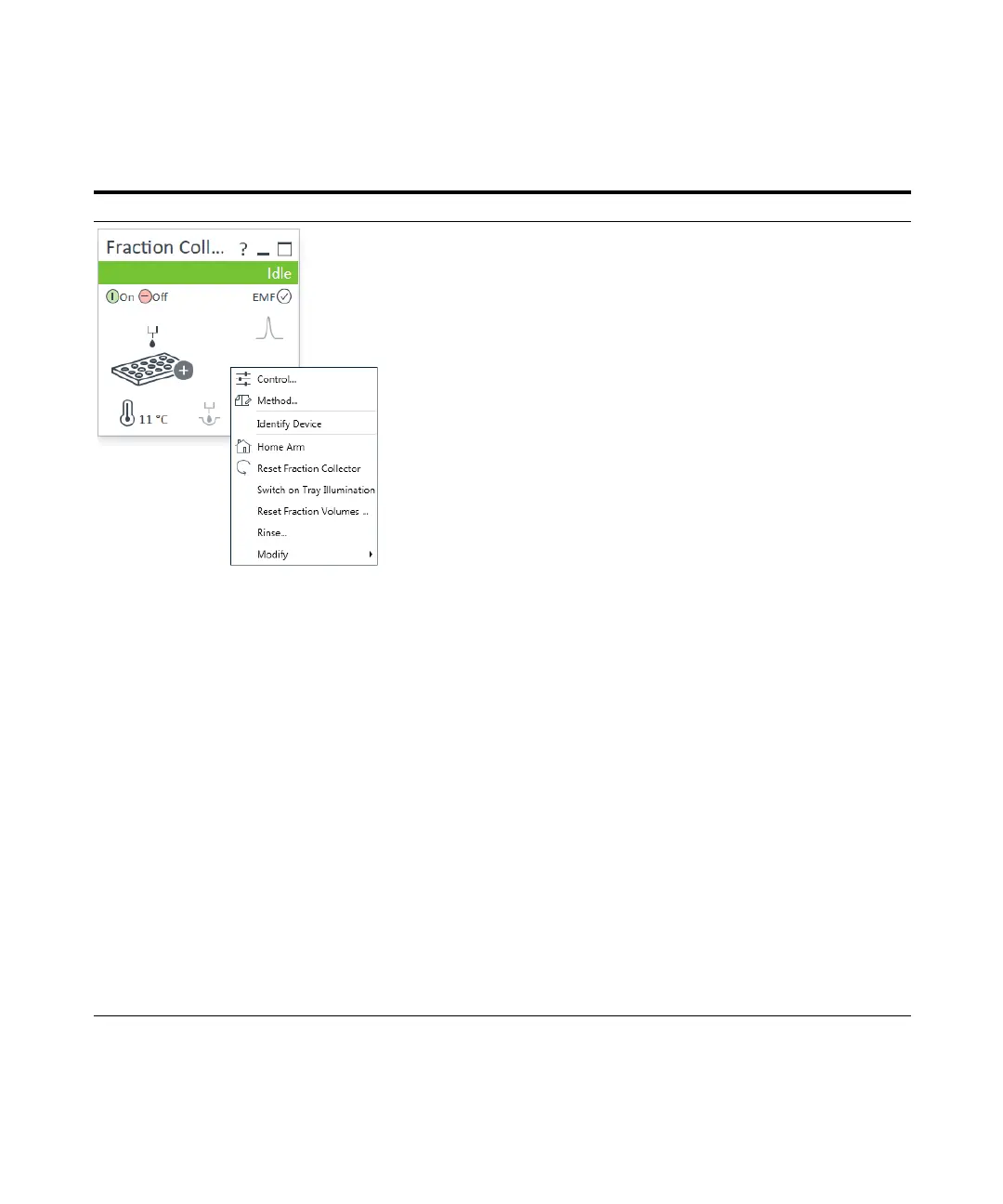

Context Menu
The context menu of the dashboard panel contains the following commands:
• Control :
Displays the Fraction Collector's Control dialog box.
•Method :
Displays the Fraction Collector's Method Setup dialog box.
• Identify Device :
Causes the LED on the front of the module to blink for a few seconds.
•Home Arm :
Moves the robot arm to its home position.
• Reset Fraction Collector :
Sends a reset signal to fraction collector. During the reset, the fraction
collector is in a Not Ready state.
• Switch on Tray Illumination
Toggles the illumination of the fraction collection area, on or off.
• Reset Fraction Volumes :
Displays the
Reset Fraction Volumes dialog box, which allows you to reset the
fill volumes currently stored in the device.
•Rinse :
Displays the
Rinse dialog box, which allows you to specify the rinse
parameters.
•Modify > Wellplate Assignment :
Displays the
Modify Wellplate Assignment dialog box, which allows you to
view and (if necessary) change the wellplate assignment of the containers.
•Modify > Collection Settings :
Displays the
Modify Collection Settings dialog box, which allows you to
select the collection order and forbidden locations.
•Modify > Detector Delay Volumes :
Displays the Modify Detector Delay Volumes dialog box, which allows you to
view and (if necessary) modify the delay volumes stored in your device.
•Modify > Linked Pump :
Displays the Modify Linked Pump dialog box, which allows you to view and (if
necessary) change the pump that delivers the flow to your device.
•Modify > Needle and Tubing :
Displays the Modify Needle and Tubing dialog box which allows you to
register changes to the needle and/or tubing kit in the module's firmware.
•Modify > Needle Position
•Modify
> Vessel Dimensions
Table 1 0 Fraction Collector User Interface
