1260 Infinity II Analytical-Scale & Bio-inert Fraction Collector User Manual 135
Maintenance
7
Exchange the Internal Tray
Exchange the Internal Tray
When If defective
Parts required # p/n Description
1 G1364-63123 Internal tray preparative scale
OR 1 G1364-63124 Internal tray analytical scale
Preparations • Position the transport unit of the fraction collector in the Home position.
• Remove all installed trays from the tray base.
• Turn OFF the instrument.
1

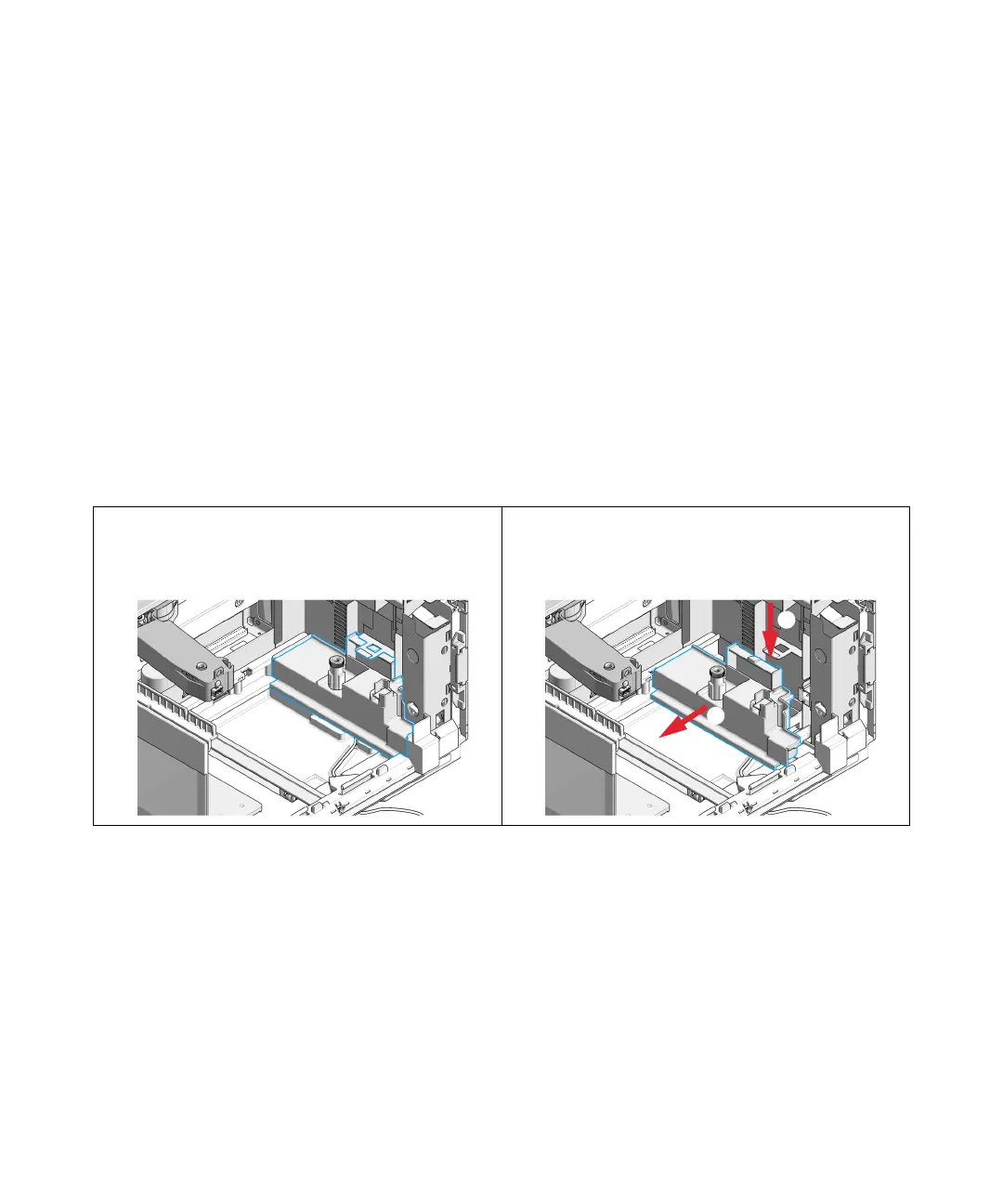

Locate the internal tray assembly with the rinse funnel
and flow delay sensor in the bottom of the right front
corner of the instrument.
2
Remove the internal tray by pushing down the plastic
holder that holds it in position underneath the metal
leash (1.) and sliding the tray to the left at the same time
(2.).
