1260 Infinity II Analytical-Scale & Bio-inert Fraction Collector User Manual 137
Maintenance
7
Repair or Exchange a Funnel of the Internal Tray
Repair or Exchange a Funnel of the Internal Tray
When When leaky or contaminated
Parts required p/n Description
G1364-68730 Funnel seal kit (pack of 10)
G1364-43201 Funnel coupler
G1364-86708 Waste tubing kit 0.5T (analytical scale)
5022-2200 Funnel
Preparations • Position the transport unit of the fraction collector in the Home position and remove all
installed trays from the tray base.
• Turn OFF the instrument.
• Remove the internal tray, see “Exchange the Internal Tray” on page 135.
1

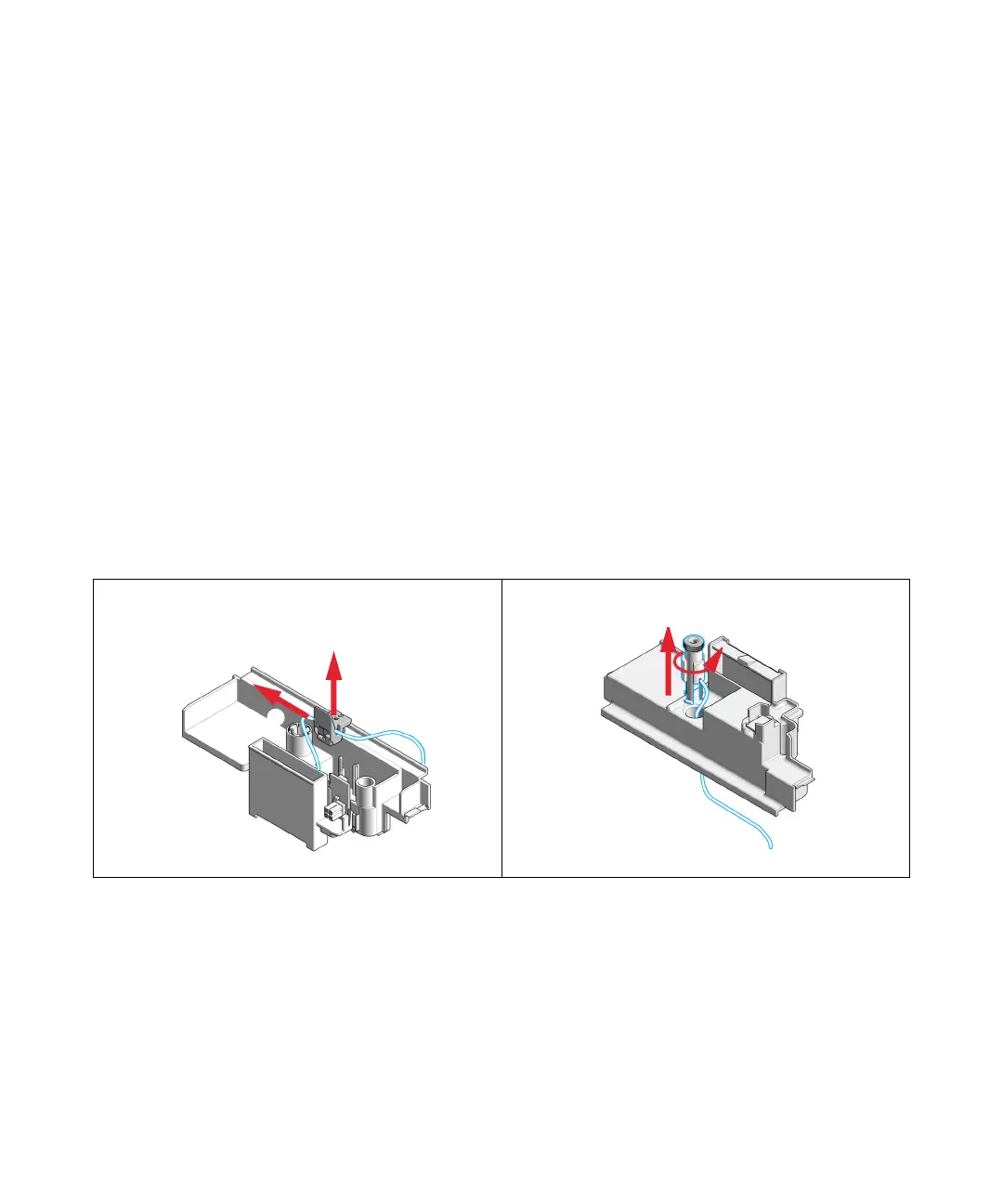

Turn the internal tray upside down, lift the flow delay
sensor (1.) and remove the funnel’s waste tubing
through the flow delay sensor (2.).
2
Remove the funnel assembly from the internal tray by
screwing it counter clockwise and lifting it out.
