Agilent Technologies 54830 Series - To Connect to the LAN Card

Setting Up the Oscilloscope
To connect to the LAN card
1-13
To connect to the LAN card
1 Connect your LAN cable to the RJ-45 connector on the LAN card. Make
sure the connection is secure.

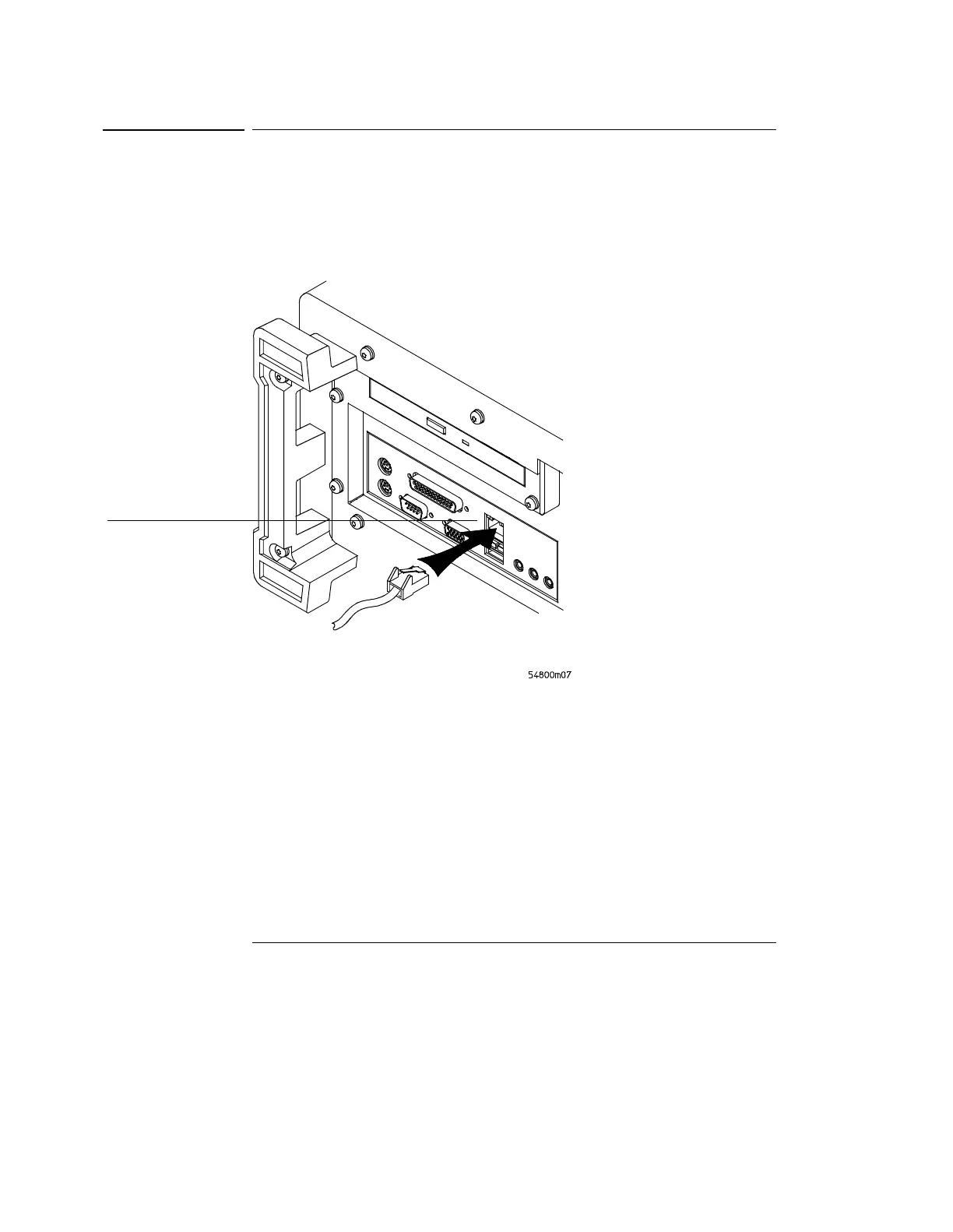

Figure 1-6
Connecting to the LAN Card
2 After you have connected to the LAN card, you must set up the network.
Go to “To set up the network” in chapter 3.
RJ-45
Connection
