Using the Oscilloscope
To adjust digital channel’s vertical size and offset
3-14
To adjust digital channel’s vertical size and offset
• To select the digital channel which is affected by the vertical offset
knob, turn the select knob clockwise to move toward the top-most
digital channel. Turn the knob counter-clockwise to move toward the
bottom most digital channel.
• To make the waveform bigger, turn the size knob clockwise. To make
it smaller, turn the knob counter-clockwise.
• To move the waveform toward the top of the display, turn the vertical
offset knob clockwise. To move it toward the bottom of the display,
turn the knob counter-clockwise.

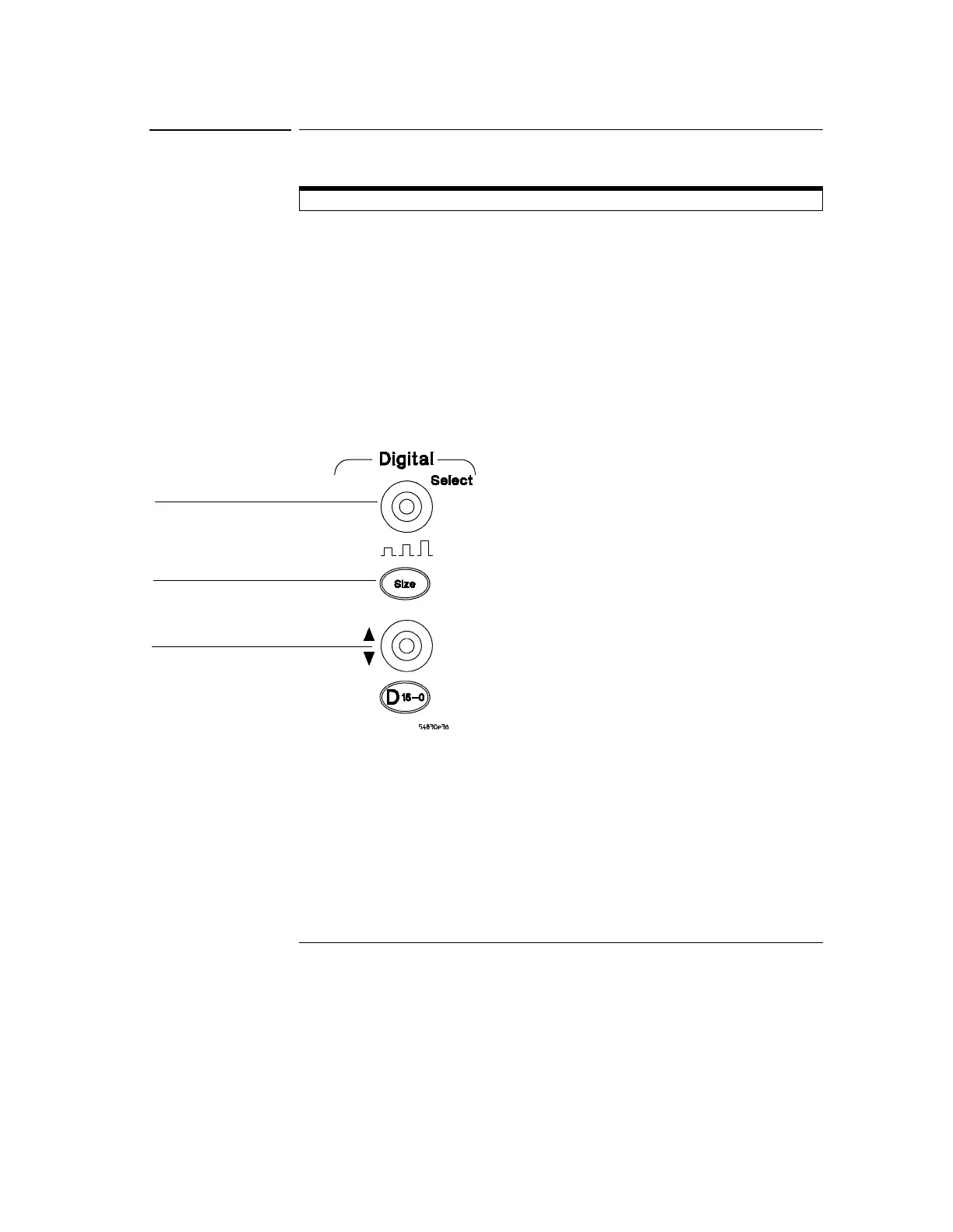

Figure 3-8
Digital Channel’s Vertical Size and Offset Controls
Digital channels are only available on the 5483xD Infiniium oscilloscopes.
Vertical offset knob—use this
to adjust vertical offset
(position)
Size knob— use this to adjust
vertical size
Select knob— use this to
choose the digital channel
affected by the vertical offset
knob vertical size
