Using the Oscilloscope
To access the channel setup
3-44
To access the channel setup
• Click the channel number button at the top of the waveform display.
or
• Select the desired channel from the Setup menu.
With the channel setup dialog, you can set the vertical scaling, offset, input
coupling, and input impedance. It also lets you specify the characteristics of
the probe, using the Probes button. You can set attenuation ratio, attenuation
units, and measurement units for the probe, or perform a probe calibration. For
Agilent Technologies probes that are compatible with the AutoProbe Interface,
the oscilloscope will automatically set these characteristics (except for skew)
after identifying the probe when it is connected to the channel input.

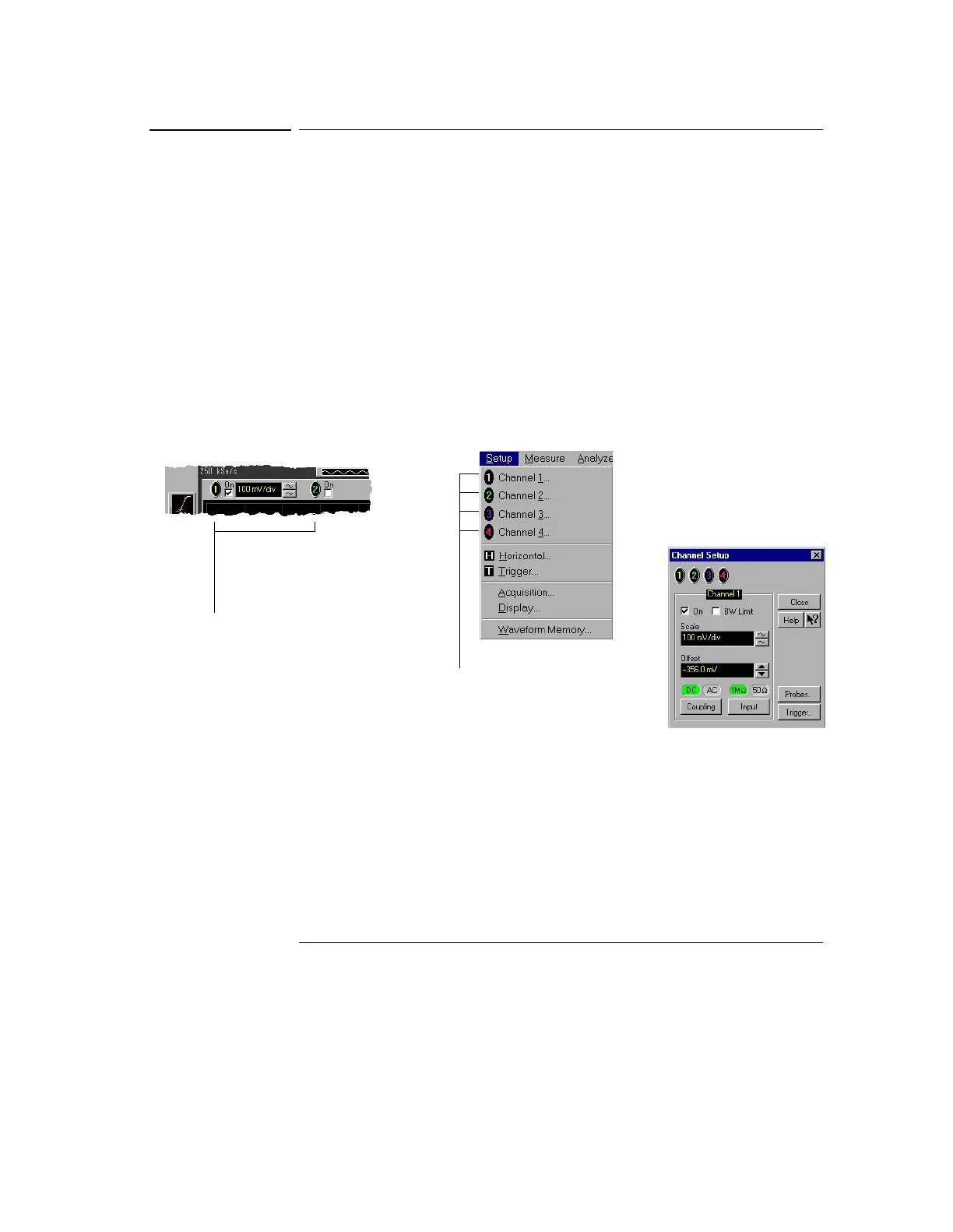

Figure 3-33
Accessing the Channel Setup
Click one of the
channel buttons at
the top of the
waveform display...
...or select a
channel from
the Setup
menu...
...to access the channel
setup dialog box.
