Setting Up the Oscilloscope
To connect a printer
1-22
To connect a printer
If you have a parallel (Centronics) printer, you will need a parallel printer cable.
Go to step 1.
If you have a serial printer, you will need a 9-pin to 25-pin serial printer cable,
such as an 34398A cable, plus the 34399A adapter kit. Some printers may
require other cable configurations, but the oscilloscope has a 9-pin serial
connector. Go to step 5.
1 Attach the 25-pin small “D” connector to the printer output connector
on the rear of the oscilloscope. Tighten the thumbscrews to secure the
cable.

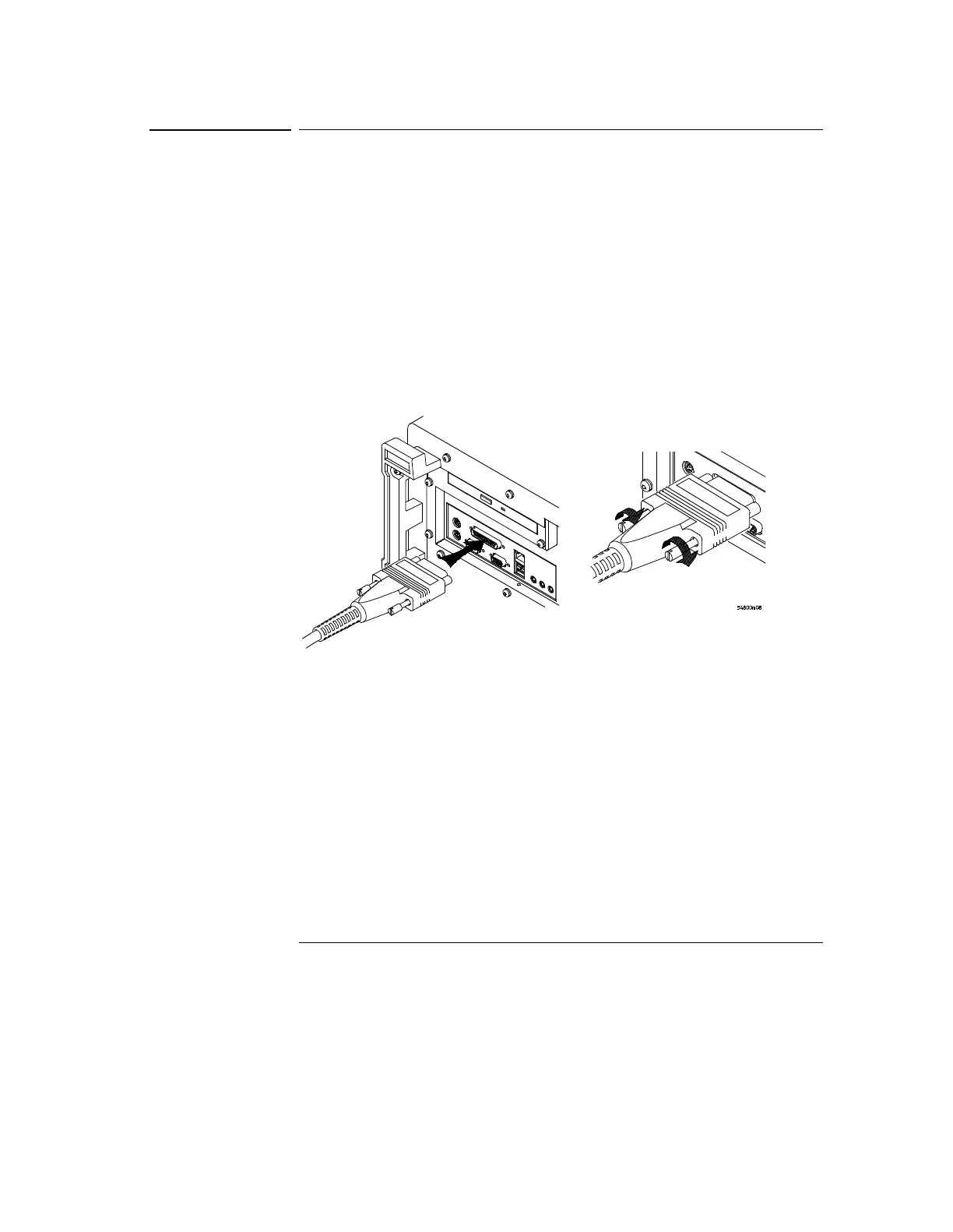

Figure 1-15
Attaching the Small “D” Connector
2 Attach the larger 36-pin “D” connector to the printer. Latch the wire
bails into the tabs on each side of the connector.
