Using the Oscilloscope
To use the quick measurements
3-19
To use the quick measurements
• To turn on the quick measurement display, press the QuickMeas key.
The four preset measurements defined in the Quick Measurement configuration
are enabled and results are displayed on the screen for the first waveform
source. The default measurements are: V
pp
, Period, Frequency, and Rise Time.
• To measure parameters for another waveform, press the QuickMeas
key until that waveform is the one shown in the measurement readout.
Continuing to press the QuickMeas key cycles through each of the waveforms
available.
• To turn off the quick measurement display, press and release the
QuickMeas key until the measurements are turned off.
The measurement results disappear from the screen.
See the built-in information system (described in Chapter 4) for information on
how to configure the Quick Measurement capability, using the Customize
Measurement feature of the graphical interface.

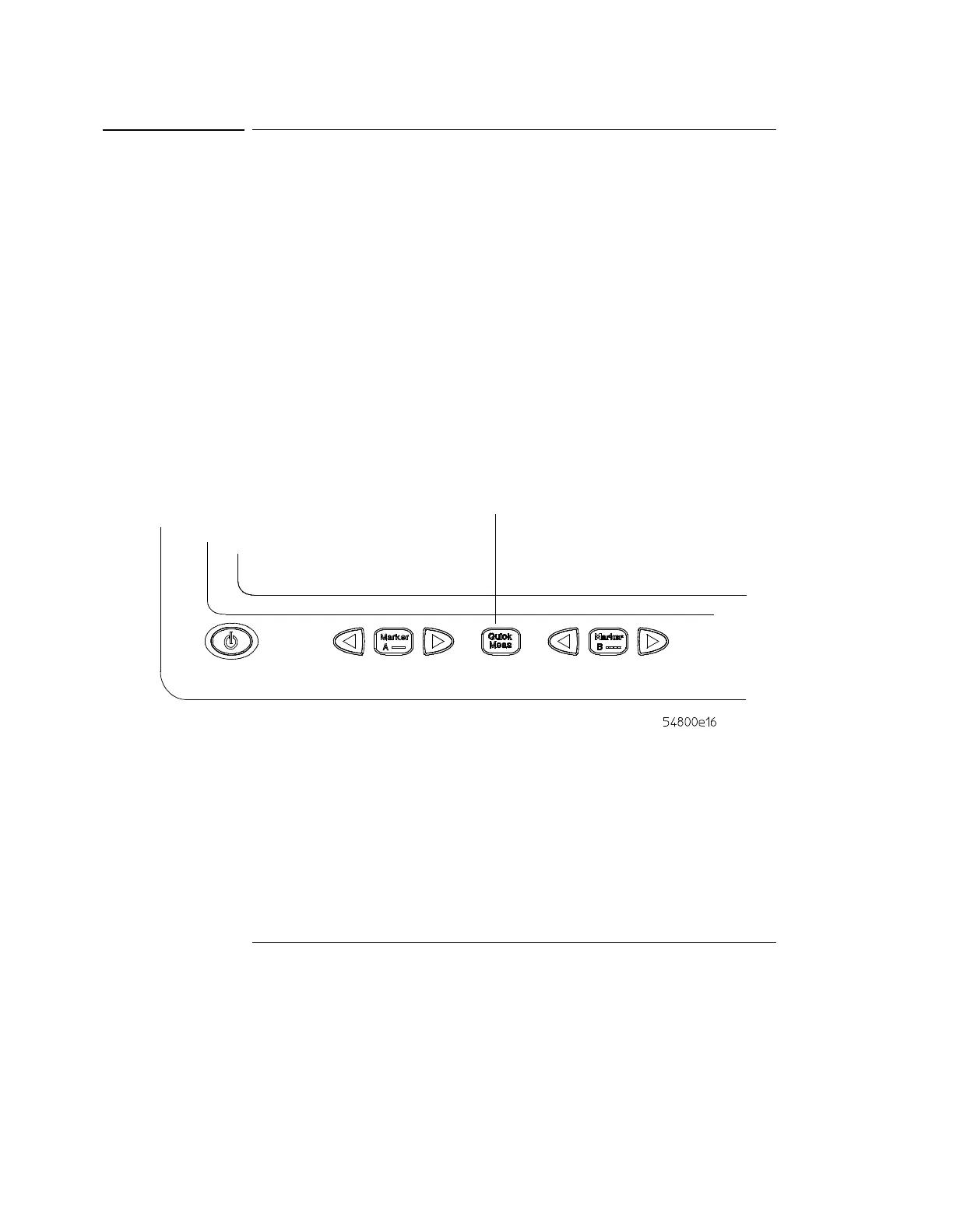

Figure 3-13
Quick Measurement Key
Press this key to turn
Quick Measurements
on or off
