Using the Oscilloscope
To set an edge trigger
3-55
To set an edge trigger
1 Click on the trigger setup button at the bottom of the waveform display.
This brings up the trigger configuration dialog. See “To access the trigger
setup.”
2 Click on Edge.
3 Click on the source you want to use for the trigger signal.
4 Click to select either the rising or falling edge of the trigger source.
5 Set the trigger level using the spin box.
You can also click on the trigger level setting to display a pop-up numeric
keypad, where you can enter the trigger level directly.

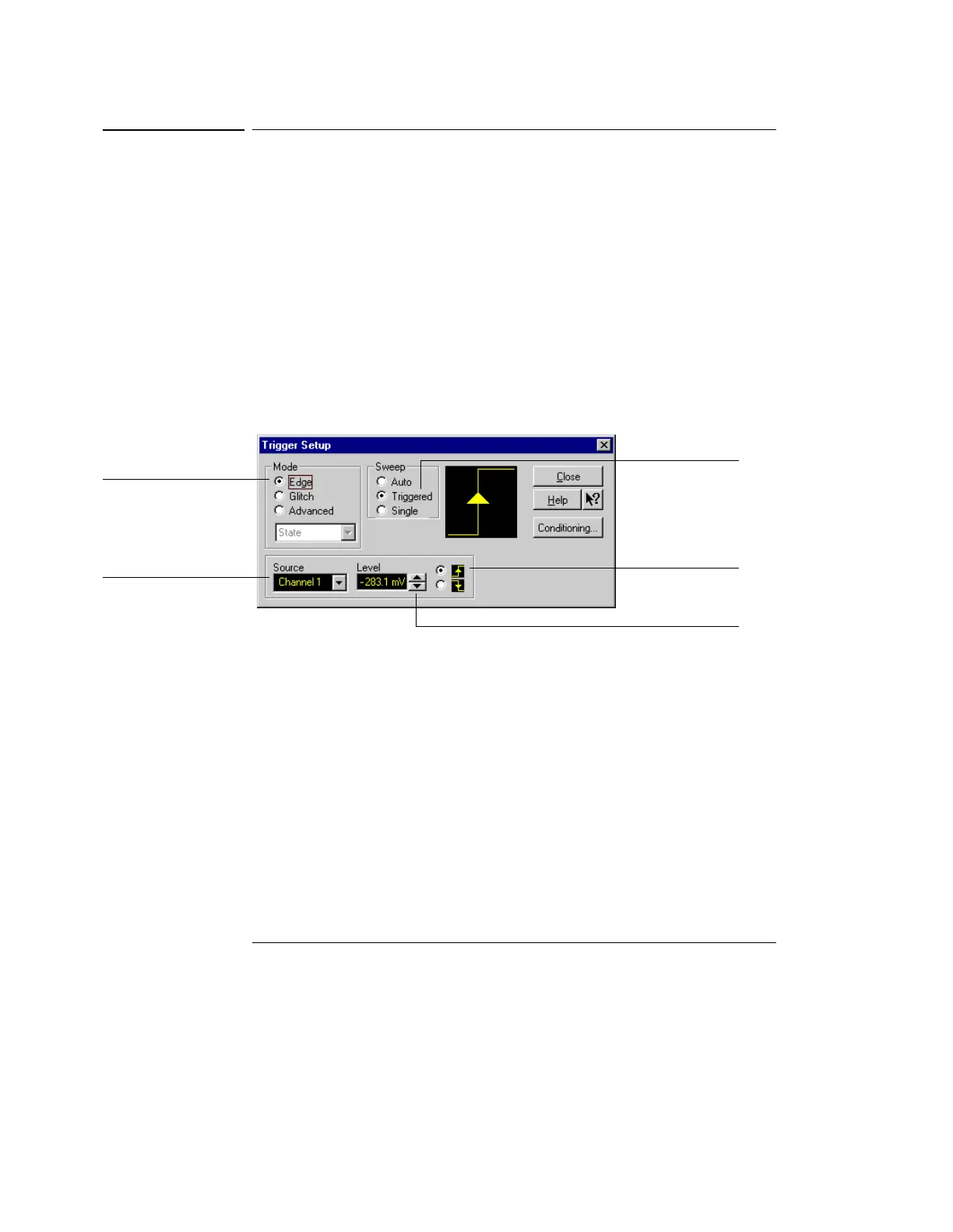

Figure 3-42
Setting an Edge Trigger
Select Triggered
sweep (or Single for
single-shot
acquisition)
Select rising or
falling edge
Set the trigger level
using the spin box
controls
Select the trigger
source
Select Edge mode
