Agilent Technologies 54830 Series - To Connect an GPIB Cable

Setting Up the Oscilloscope
To connect an GPIB cable
1-26
To connect an GPIB cable
1 Attach the GPIB connector to the GPIB interface card connector at the
rear of the oscilloscope.
2 Tighten the thumbscrews on the connector.

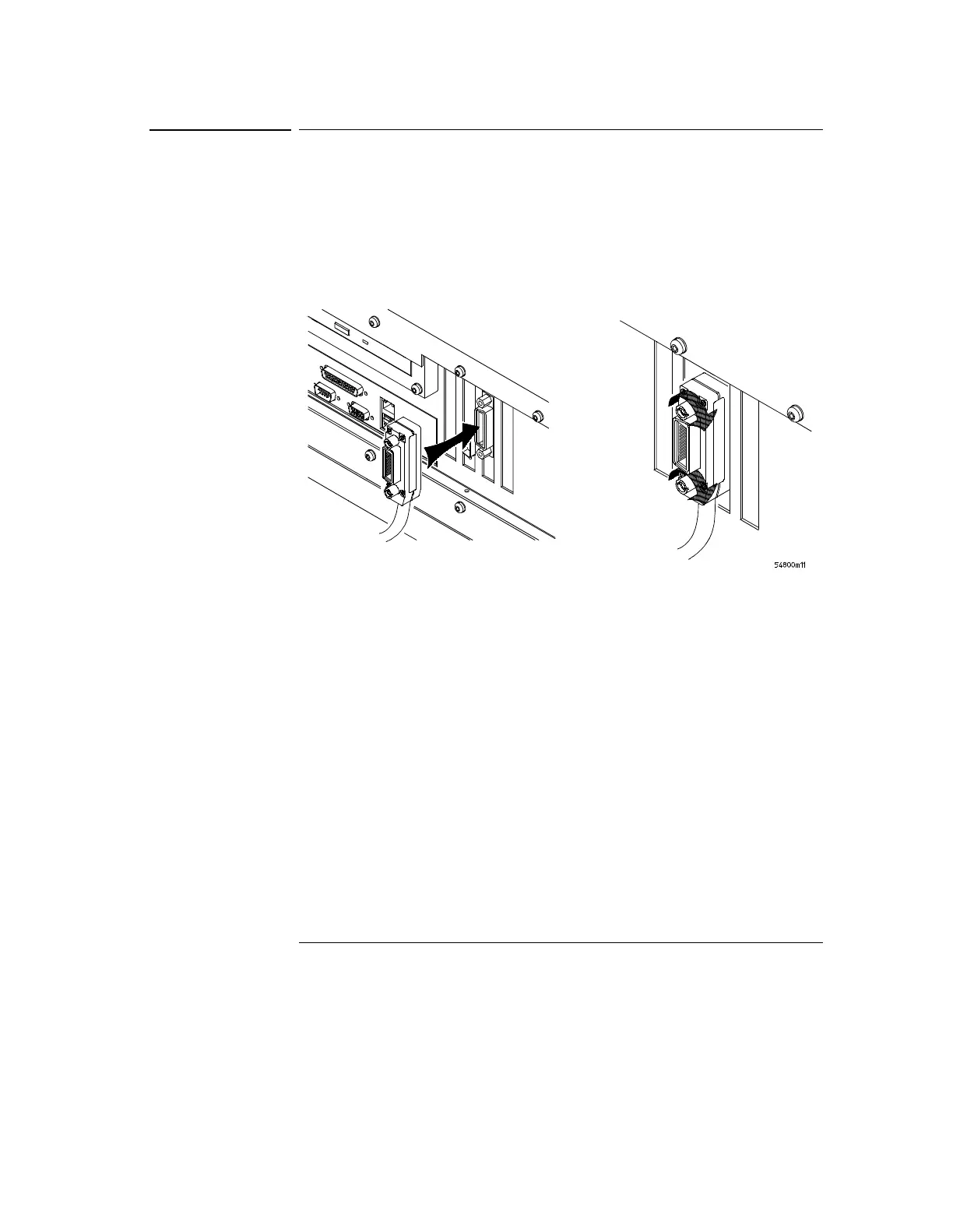

Figure 1-20
Attaching the GPIB Connector
