Chapter 6: Replacing Assemblies
To remove and replace the probe power and control board
6–10
6
To replace the probe power and control assembly, reverse the above procedure.
When inserting the assembly, be sure the two tabs on the circuit board engage the two slots in the
sheet metal. Also, be sure to carefully lock in the connector for the mylar flex cable when reattaching
the cable. See “To disconnect and reconnect mylar flex cables” in this chapter.

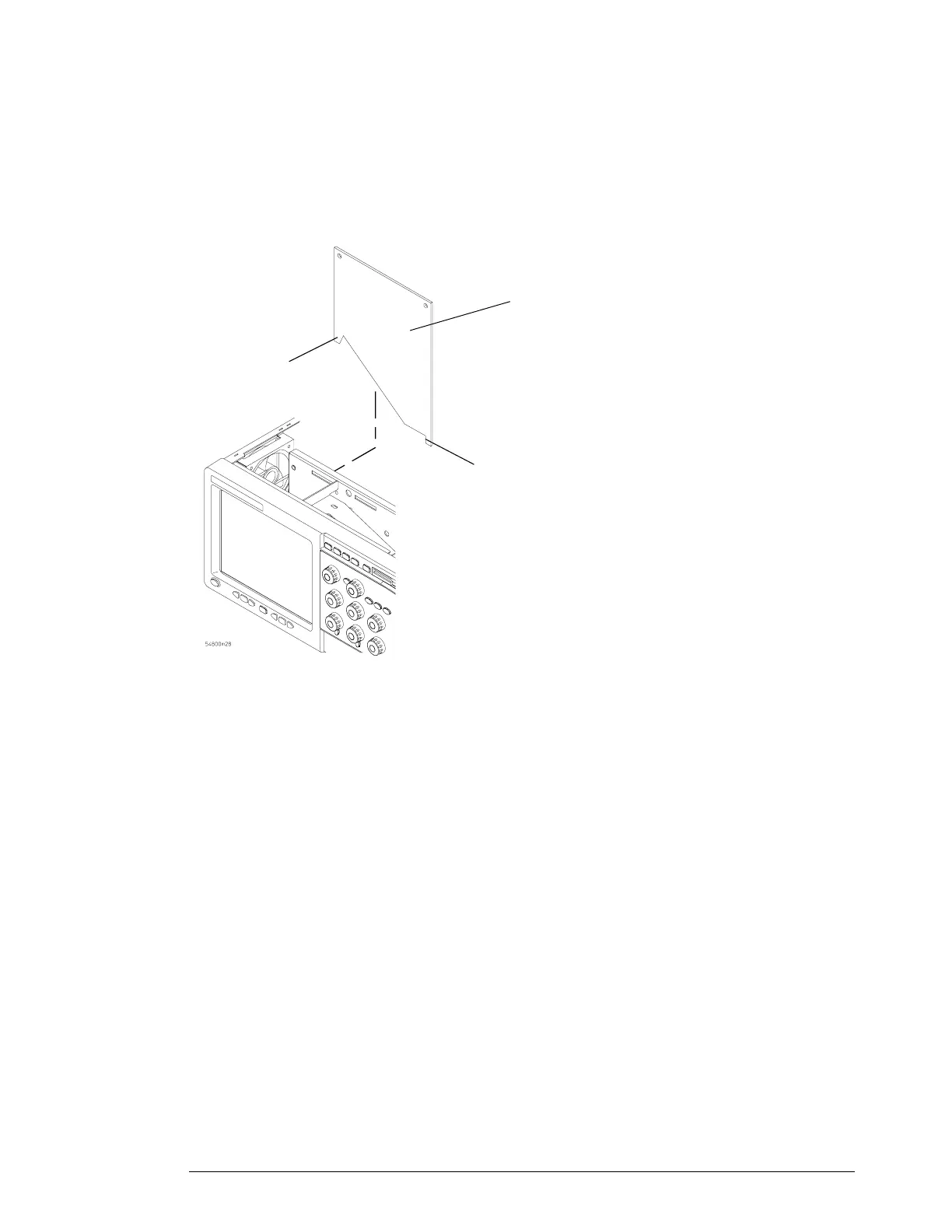

Figure 5-9
Probe Power and Control Assembly
Tab
Tab
Probe Power and
Control Board
