Chapter 2: Setting Up the Oscilloscope
To connect the mouse or other pointing device
2–5
To connect the mouse or other pointing device
1 Plug the mouse into the matching connector on the back panel of the oscilloscope.

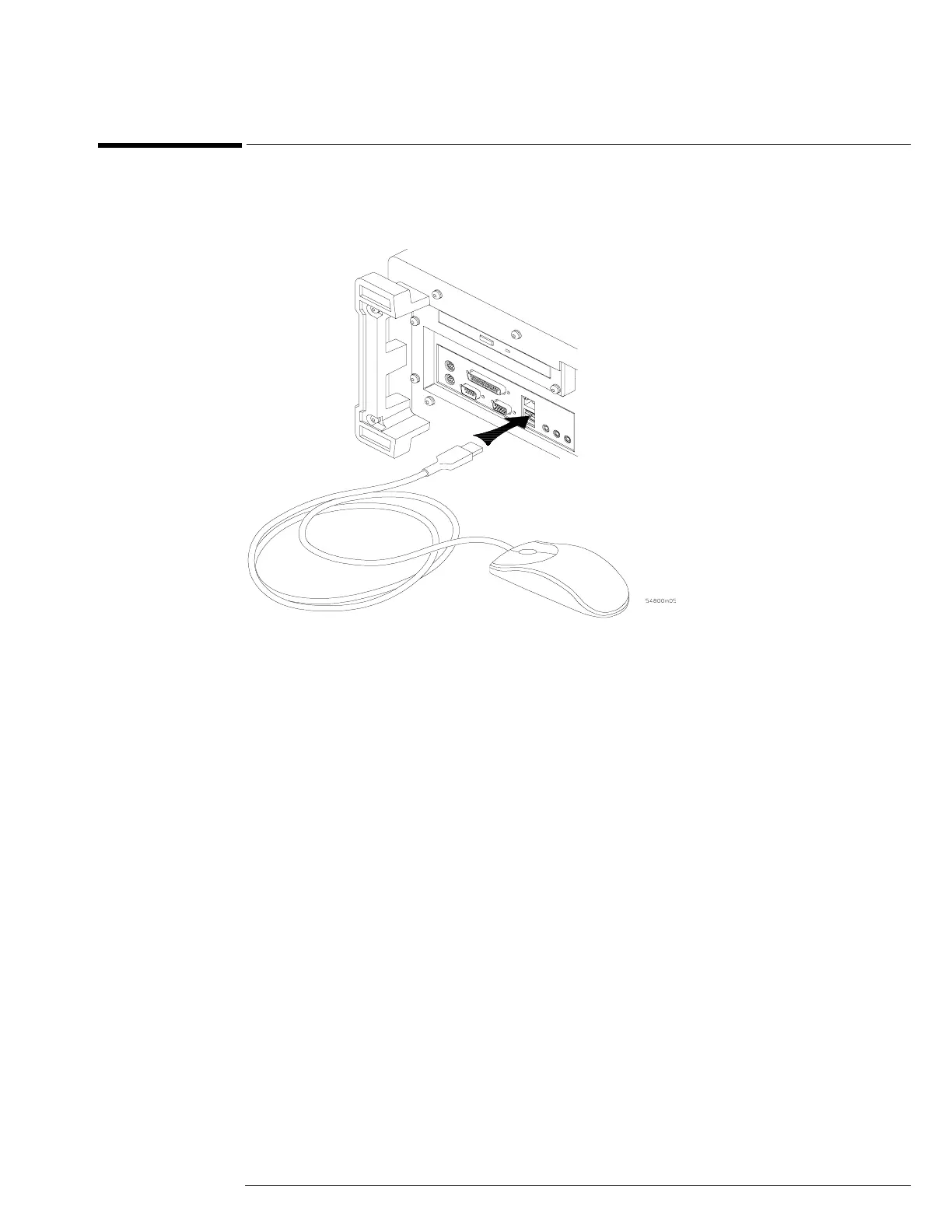

Figure 2-3
Connecting the Mouse Cable
While you can operate many oscilloscope functions using only the front-panel keys and knobs, you
will need the mouse to access advanced oscilloscope functions through the graphical interface, or to
find out more about the oscilloscope through the built-in information system.
The optional touchpad pointing device connects in exactly the same way as the mouse. The supplied
mousepad provides the correct surface for smooth mouse operation.
