Agilent Technologies 54853A User Manual

Chapter 6: Replacing Assemblies
To remove and replace the backlight inverter board
6–11
To remove and replace the backlight inverter board
When necessary, refer to other removal procedures.

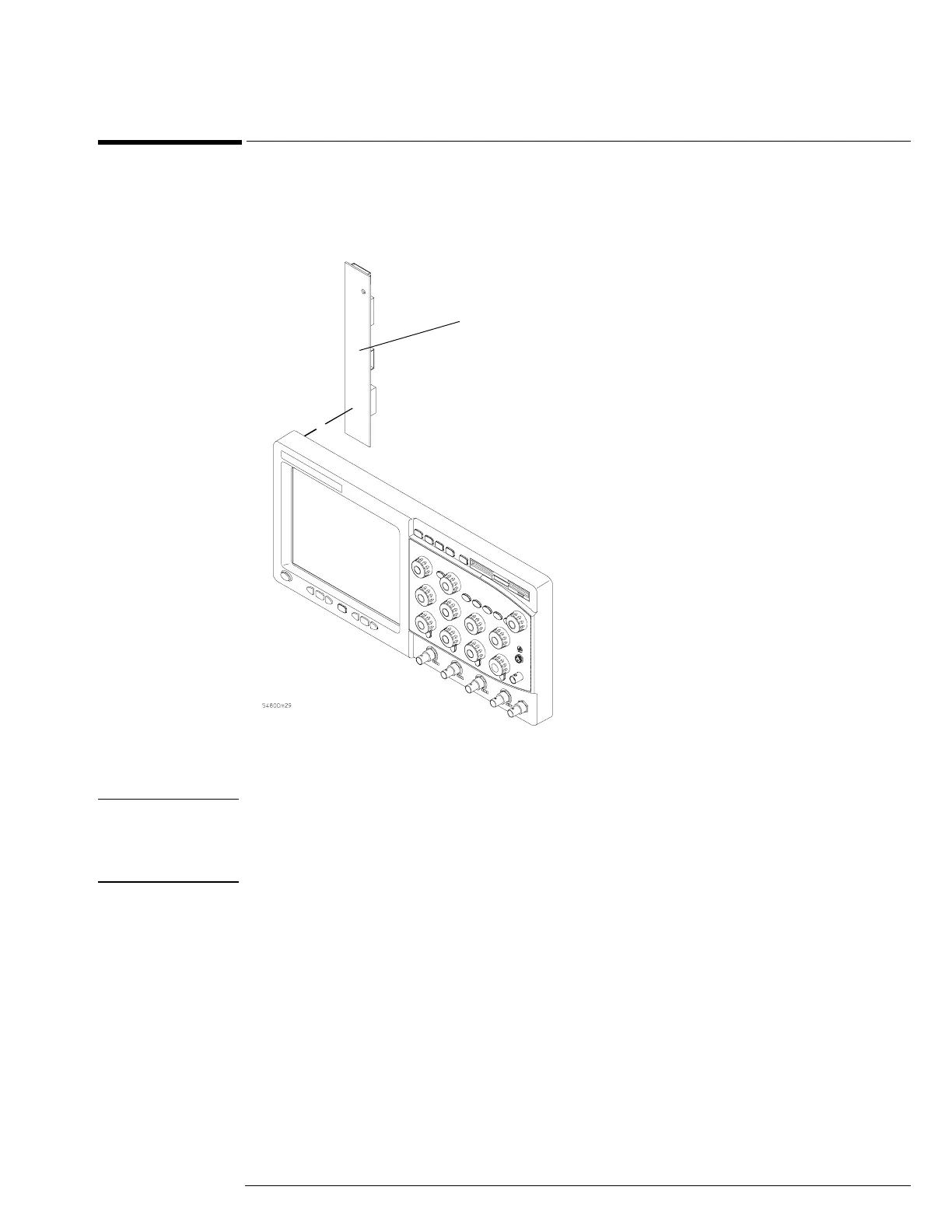

Figure 5-10
Backlight Inverter Board
WARNING SHOCK HAZARD!
The backlight inverter assembly, which is mounted at the front corner of the oscilloscope near the
flat-panel display, operates at a high voltageof 1.3 kV ac
rms
. DO NOT handle this assembly while it is
in operation.
1
Disconnect the power cable and remove the top and bottom covers.
Backlight
Inverter
Board
