Chapter 6: Replacing Assemblies
To remove and replace the motherboard
6–32
4
Remove the cable that goes to the mother board connector IDE1 at the motherboard endo
of the cable.
5 If option 017 (removable hard drive) is installed, remove the CDROM cable that goes to
the motherboard connector IDE2 at the motherboard end of the cable. See Figure 5-31.
6 Remove all PCI cards from the motherboard.
7 Remove the 8 T10 screws holding the motherboard to the chassis.
8 Remove the 6 port lock screws holding the port connectors to the chassis.

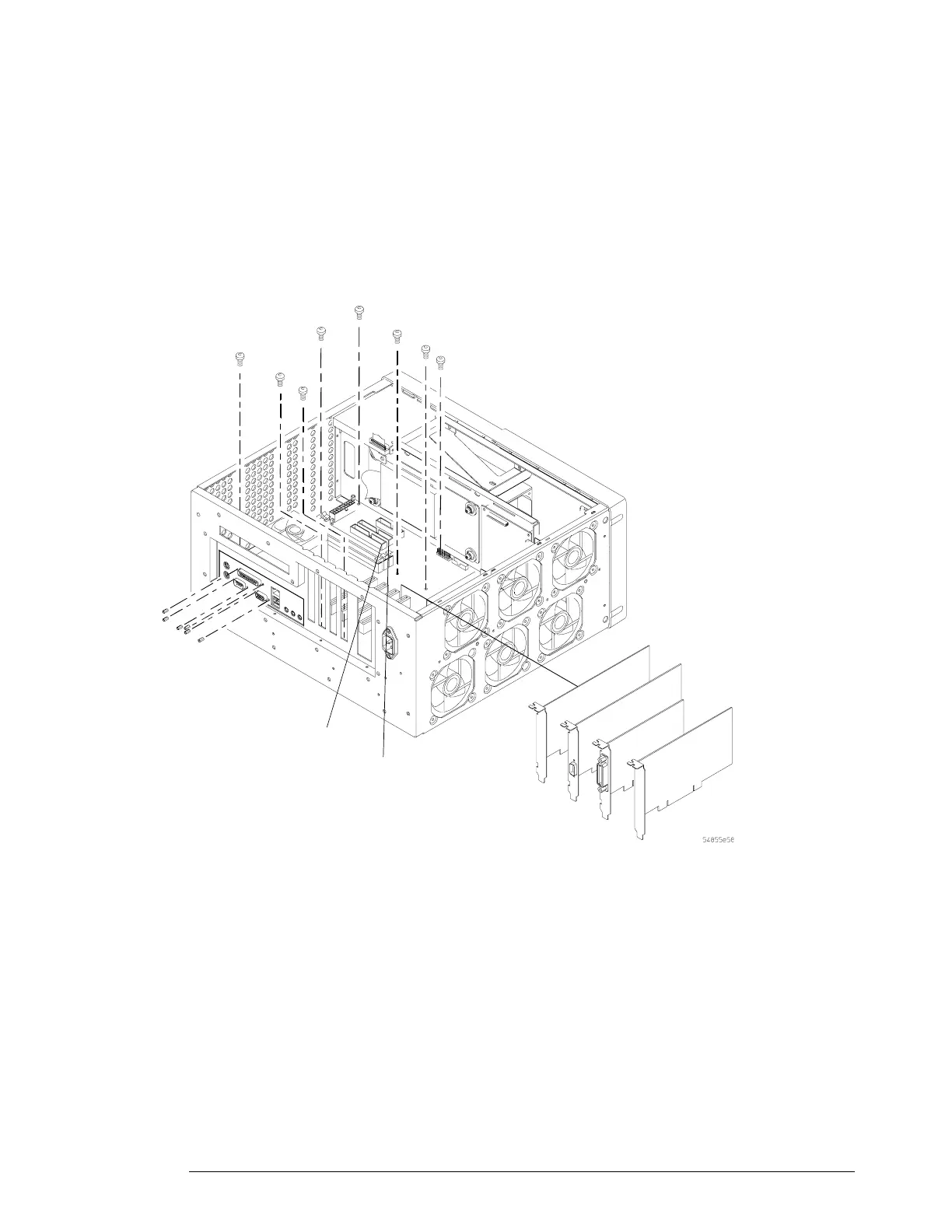

Figure 5-31
Removing the Motherboard Screws, IDE Cable, and PCI Cards
9 To replace the motherboard assembly, reverse the above procedure.
10 BIOS settings.
11 Run the self-test to verify the oscilloscope is operating properly. Select Self Test from the
Utilities menu and then Start in theSelf Test window.
Port lock
screws (6)
T10 screws
(8)
PCI cards
IDE1
IDE2
