Chapter 2: Setting Up the Oscilloscope
To connect oscilloscope probes
2–9
3
To disconnect the probe, push the small latch on top of the probe connector to the left,
then pull the connector body away from the front panel of the oscilloscope without twisting
it.

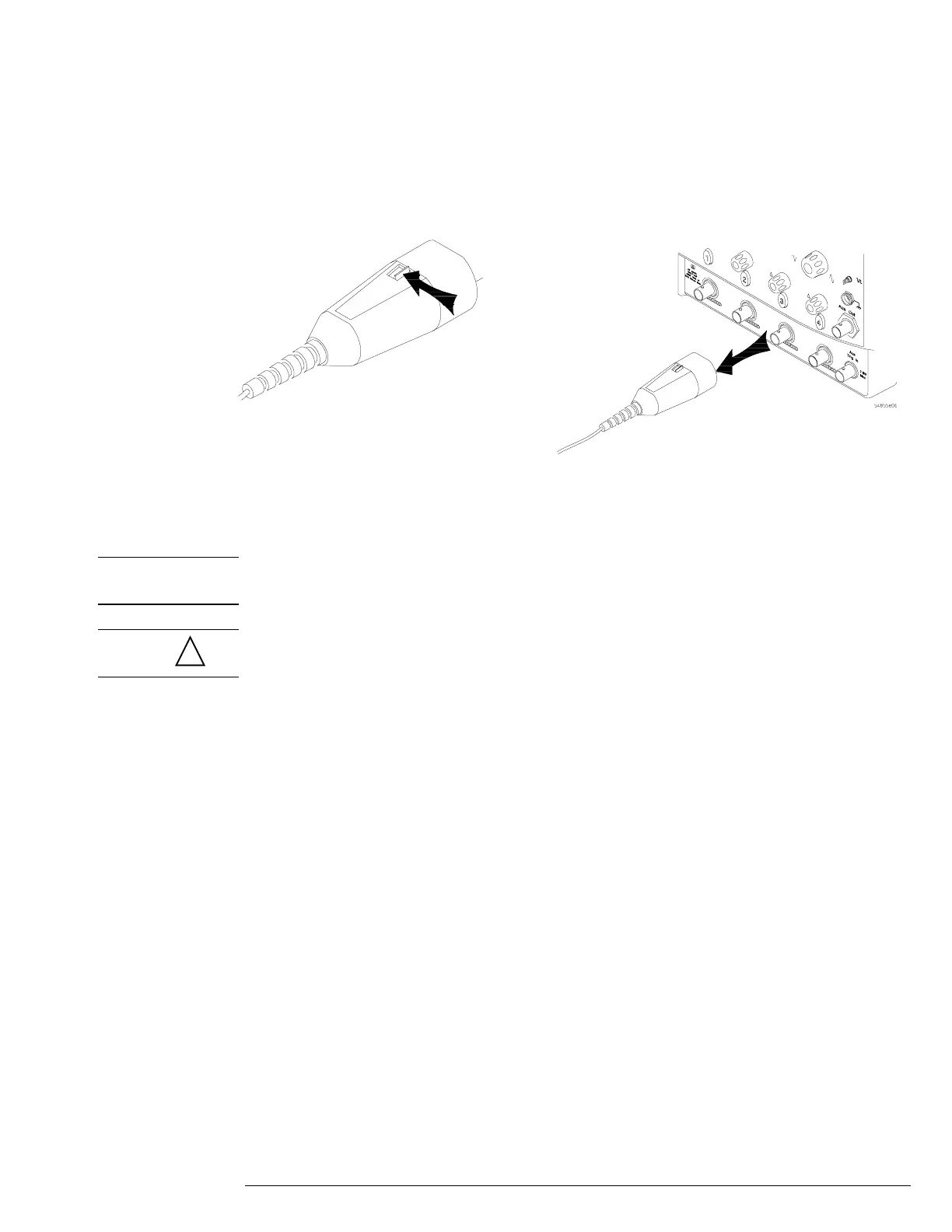

Figure 2-8
Disconnecting the Oscilloscope Probe
CAUTION Do not attempt to twist the snap-on probes on or off the oscilloscope’s BNC connector. Twisting
the probe connector body will damage it.
CAUTION Do not exceed the maximum input voltage rating. The maximum input voltage for the 50 Ω inputs
is 5 Vrms, CAT I.
!
