Chapter 3: Testing Performance
DC Measurement Accuracy (Single Cursor) Test
3–13
4

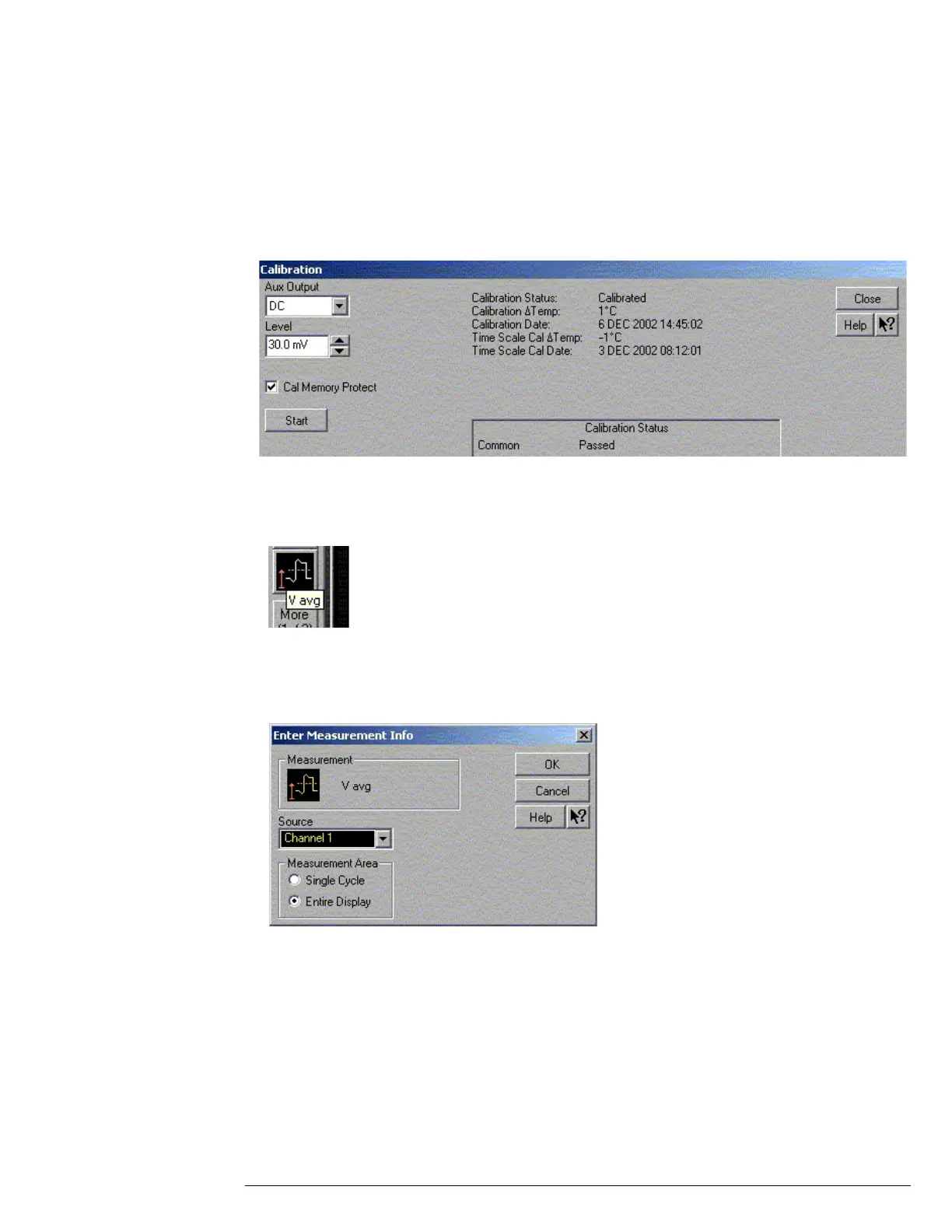

Set the Aux output voltage to +30 mV DC as follows:
a Pull down the Utilities menu and select Calibration.
b Change the Aux Output function to DC (top left corner).
c Set the Level to 30 mV.
d Click on Close.
5
Configure the scope to measure Average voltage as follows:
a Change the vertical sensitivity of channel 1 to 10 mV/div.
b Click the V avg measurement icon on the left side of the screen.
c When the Enter Measurement Info window is displayed, ensure that the V avg function
is set up as follows and then click OK:
Source = Channel 1
Measurement area = Entire Display
