4 Trace the wires for the ion source heater and temperature sensor to the
feedthrough board. Disconnect them there.
5 Remove the thumbscrews that hold the ion source in place.
6 Pull the ion source out of the source radiator.
WARNING
The analyzer operates at high temperatures. Do not touch any part until you are sure
it is cool.

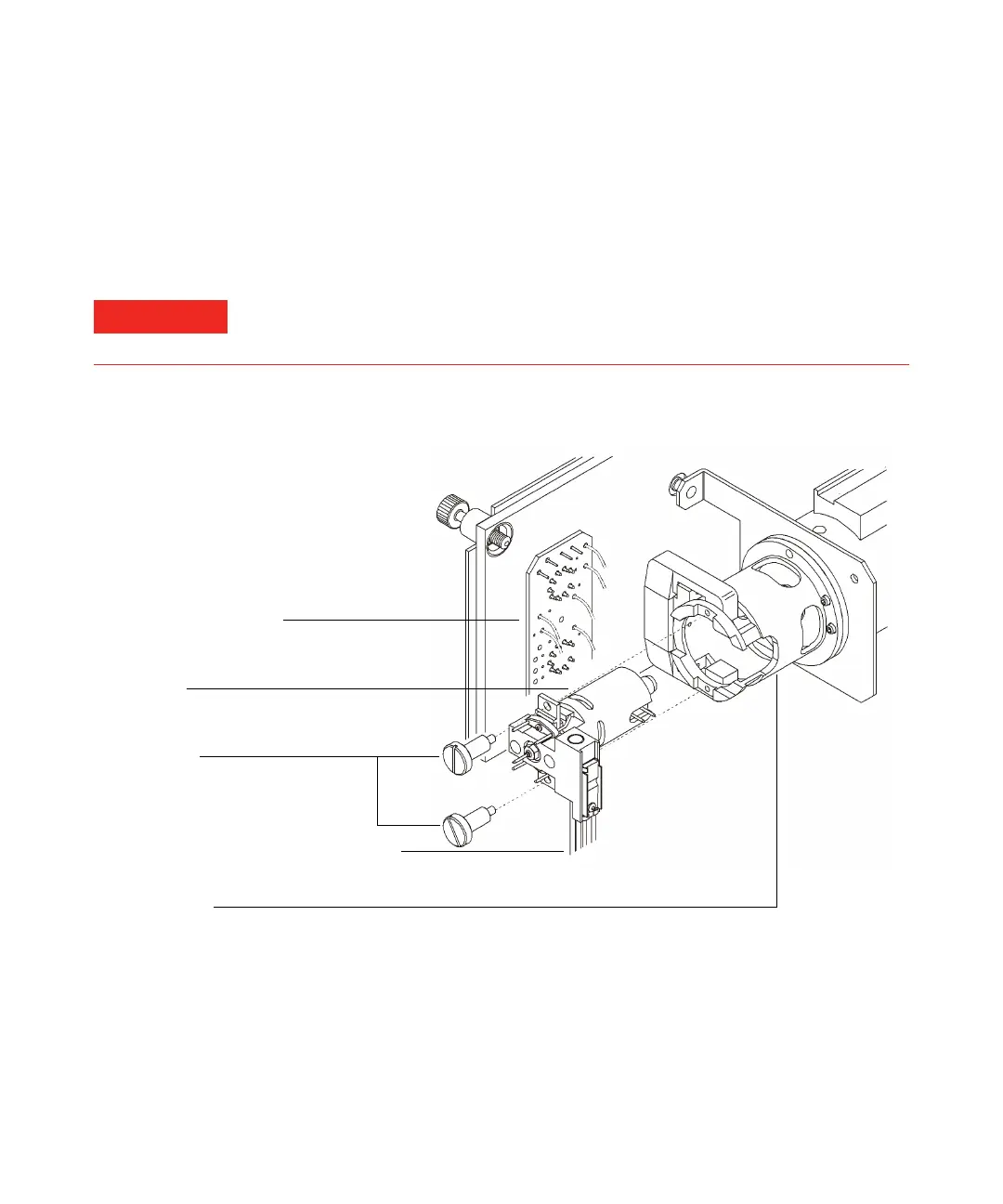

Figure 26 Removing the ion source
Source feedthrough board
Ion source
Thumbscrews
Source heater and temperature sensor wires
Source radiator
