Operating in Electron Impact (EI) Mode 3
5975 Series MSD Operation Manual for MassHunter 67
To Set Monitors for MSD Temperature and Vacuum Status
A monitor displays the current value of a single instrument parameter. They
can be added to the standard instrument control window. Monitors can be set
to change color if the actual parameter varies beyond a user-determined limit
from its setpoint.
Procedure

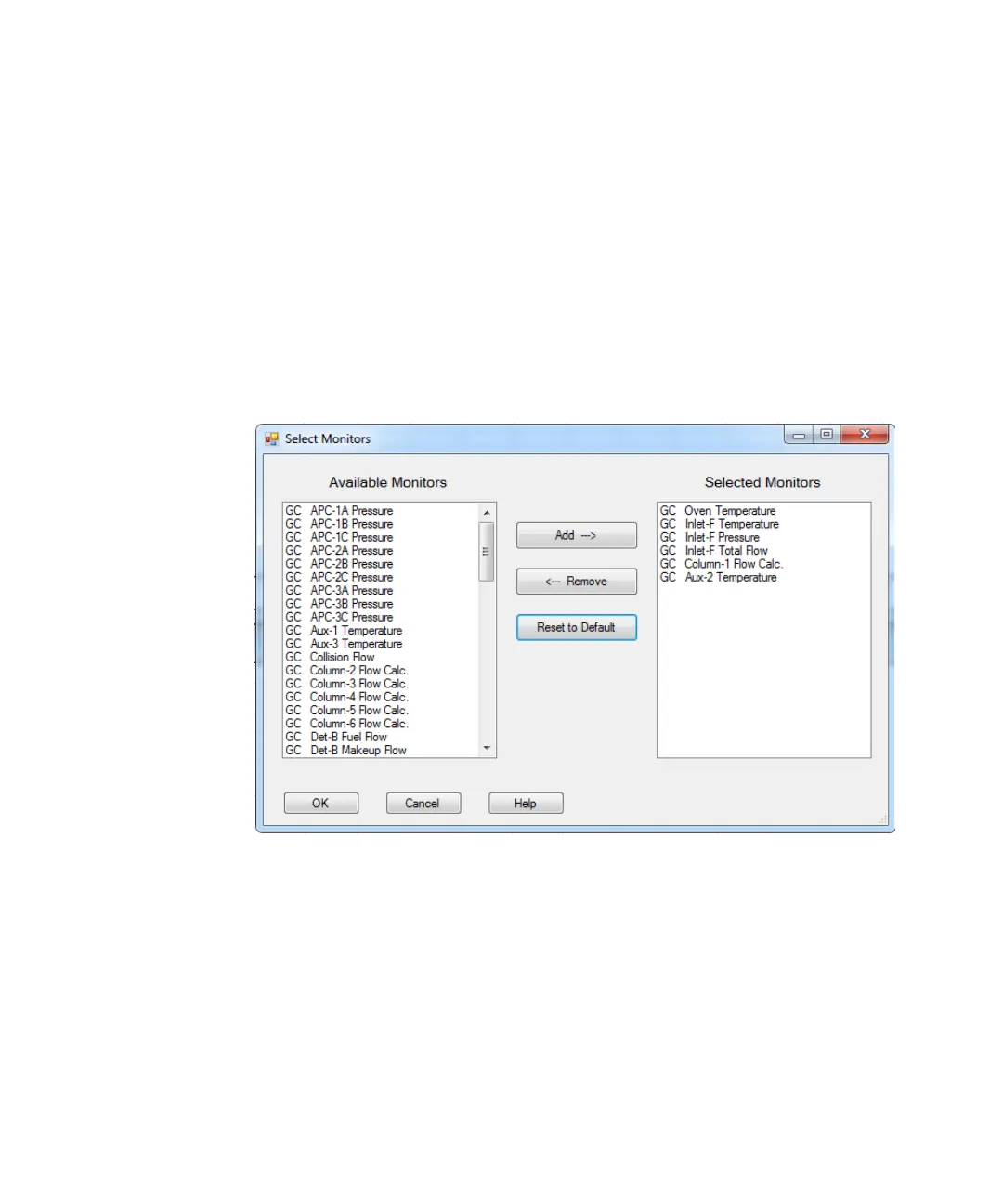

1 In Instrument Control view, select Edit Monitors from the Instrument menu to
display the Select Monitors dialog.
2 In the Available Monitors column, select a monitor and click the Add button
to move the selection to the Selected Monitors column. Repeat for additional
monitors.
3 Click OK. The new monitors will be stacked on top of each other in the
lower right corner of the Instrument Control window.
4 Select Window > Arrange Monitors, or click and drag each monitor to the
desired position.
